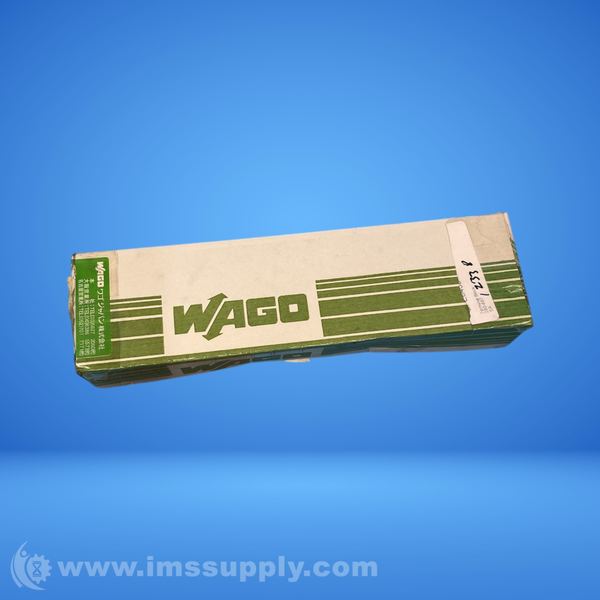

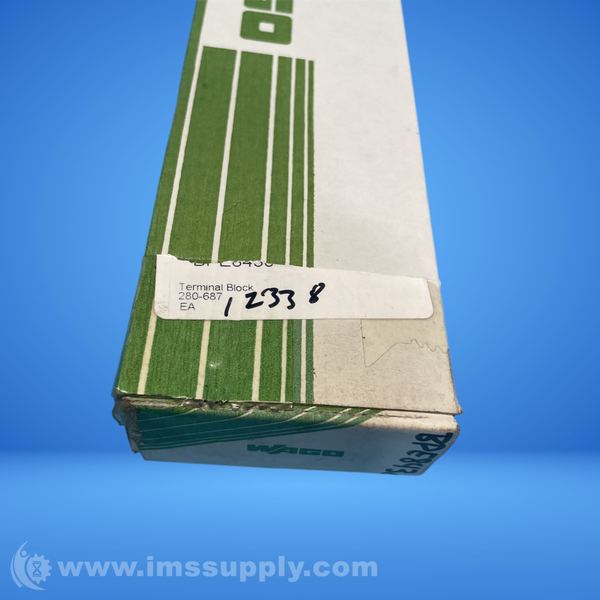

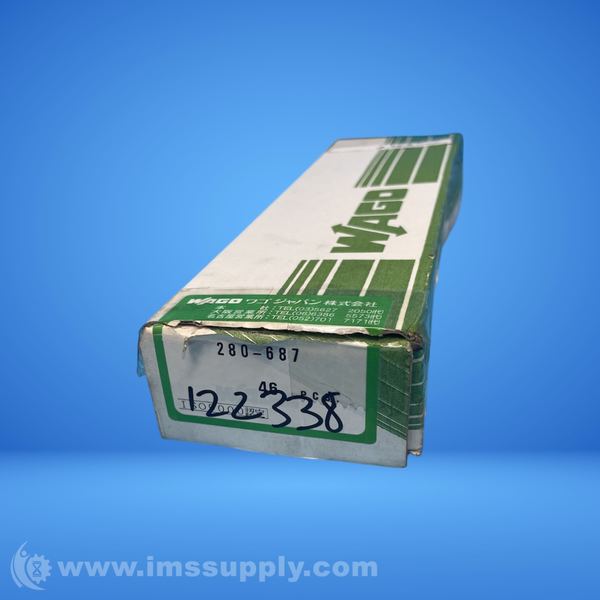

WAGO 280-687 GROUND TERMINAL BLOCK
Quick Overview
Manufactured By: WAGO
Manufacturer Part Number: 280-687
IMS Product Code: 2139376
Packaging: Box of 42
Sold Individually
Box of 42
Description:
Wago 280-687 Ground Terminal Block
3-conductor ground terminal block with CAGE CLAMP spring connections for DIN-35 rail mounting
Specifications
- Clamping Type: CAGE CLAMP
- Color: Green-Yellow
- Conductor Size: 2.5 mm
- Connection Capacity: 3-wires (1 clamp + 2 clamps)
- Cross-section: 0.08mm2...2.5mm2 fine stranded or solid conductors
- Dimensions: H64mm x W5mm x D28mm
- DIN Rail Size: 35 x 15 and 35 x 7.5
- Material: Polyamide (PA) 66
- Mounting Mode: DIN-35 rail
- Product Series: 280 series
- Temperature: Processing temperature -35C...+85C, Continuous operating temperature -60C...+105C
- Type: Terminal Block
