WAGO 289-551 INTERFACE MODULE
Quick Overview
Manufactured By: WAGO
Manufacturer Part Number: 289-551
IMS Product Code: 1789906
Packaging: Sold Individually
Description:

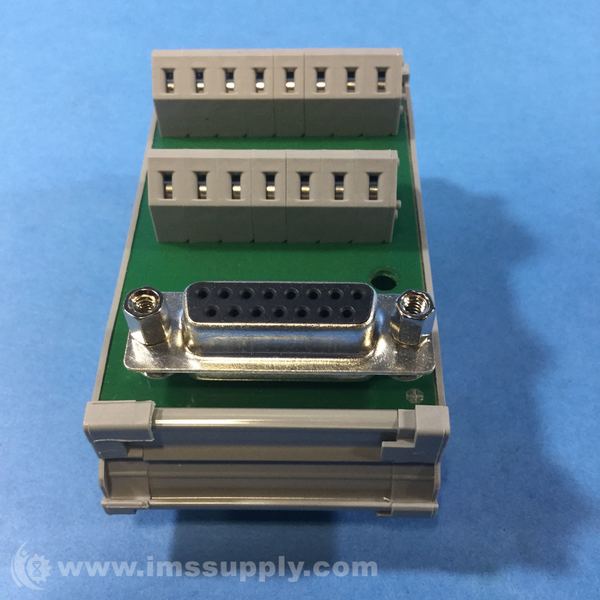

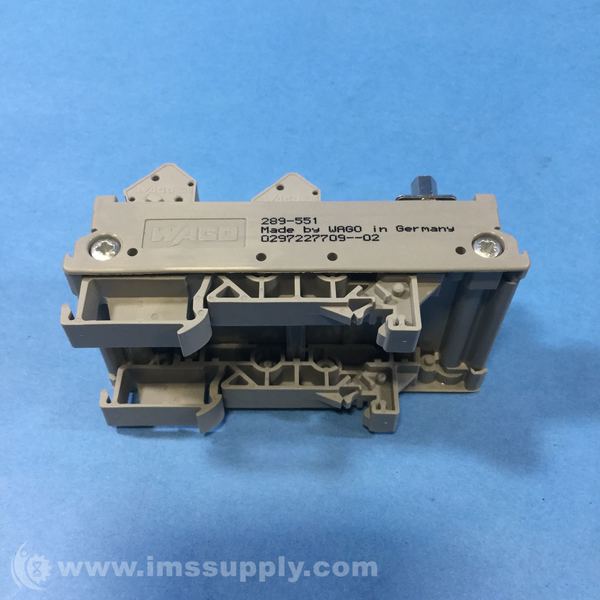

Wago 289-551 Interface Module
15-pole interface module with female D-subminiature connector for mating connectors with IDC, vertical mounting, and double-row PCB terminal blocks in mounting carrier.
Specifications
- type: Interface module
- mounting: Vertical mounting
- number of poles: 15
- connector type: Female connector
- terminal block type: PCB terminal blocks, double-row
- wire size: 2.50 mm
- wire size range: 28-12 AWG
- nominal current: 2 A
- operating voltage: 125 V
- rated surge voltage: 0.8 kV
- protection type: IP20
- pollution degree: 2
- height: 85 mm
- width: 46 mm
- depth: 85 mm
- depth from upper edge of din rail: 34 mm
- surrounding air temperature operation: -20 - 50 degrees C
- surrounding air temperature storage: -40 - 70 degrees C
- relative humidity: 85% (non-condensing)
- operating altitude max: 2000 m
- connection technology 2: CAGE CLAMP
- contact material connector: Au over Ni
- contact resistance max: 30 m
New - Open Box (Special):

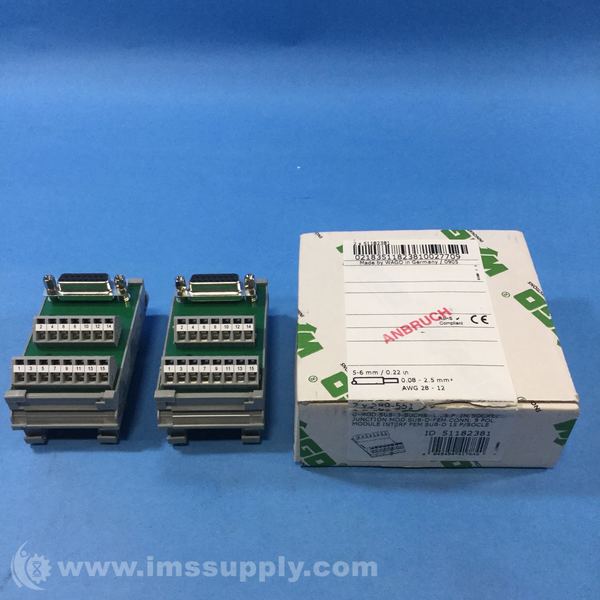

Contains 2 units.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
