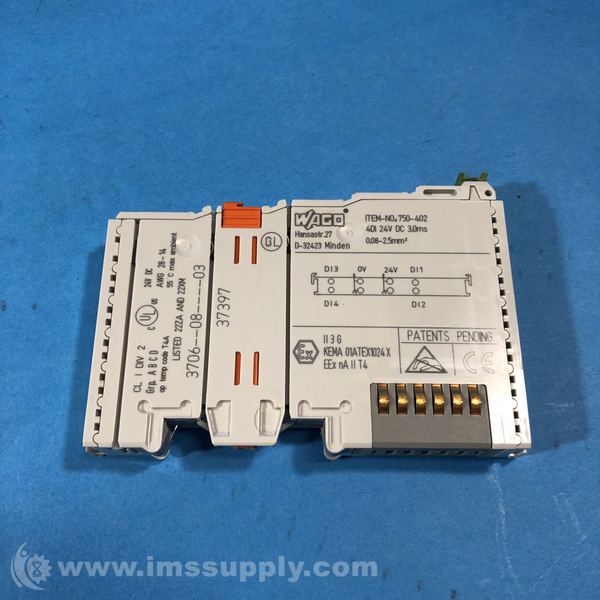

WAGO 750-402 4-CHANNEL DIGITAL INPUT
Quick Overview
Manufactured By: WAGO
Manufacturer Part Number: 750-402
IMS Product Code: 1554370
Packaging: Sold Individually
Description:
Wago 750-402 4-Channel Digital Input
4-channel digital input module with 24 VDC input voltage and 3 ms input filter.
Specifications
- number of digital inputs: 4
- signal type: digital
- signal type (voltage): 24 VDC
- input characteristic: high-side switching
- input filter (digital): 3ms
- input current per channel for signal (1): typ. 4.5mA
- voltage range for signal (0): -3 … +5 VDC
- voltage range for signal (1): 15 … 30 VDC
- supply voltage (system): 5 VDC
- supply voltage (field): 24 VDC (-25 … +30 %)
- isolation: 500 V system/field
- indicators: LED (A-D) green: Status DI 1 … DI 4
- connection technology: inputs / outputs: 8 x CAGE CLAMP (inputs)
- solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- strip length: 8 … 9 mm / 0.31 … 0.35 inches
- width: 12 mm / 0.472 inches
- height: 100 mm / 3.937 inches
- depth: 69.8 mm / 2.748 inches
- depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
- mounting type: DIN-35 rail
- color: light gray
- housing material: Polycarbonate; polyamide 6.6
- weight: 45.5g
- ambient temperature (operation): 0 … +55 degrees C
- ambient temperature (storage): -40 … +85 degrees C
- protection type: IP20
- pollution degree: 2 per IEC 61131-2
- operating altitude: 0 … 2000 m / 0 … 6562 ft
- relative humidity (without condensation): 95%
- vibration resistance: 4g per IEC 60068-2-6
- shock resistance: 15g per IEC 60068-2-27
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 29 In Stock
Ships today if ordered in the next 8 hours and 59 minutes.
