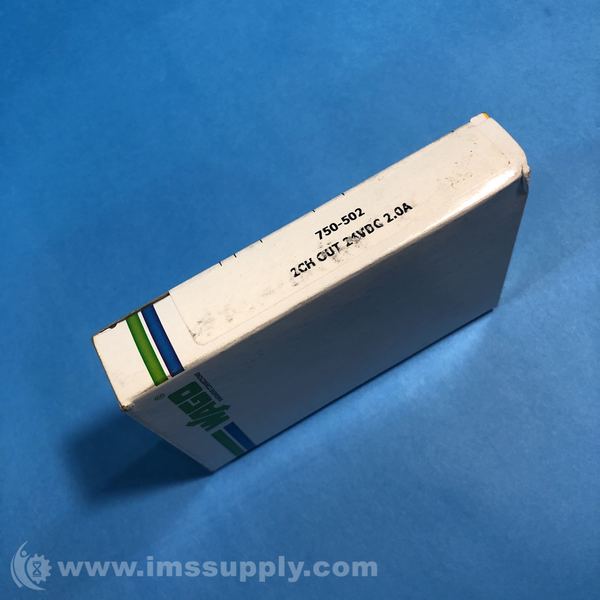

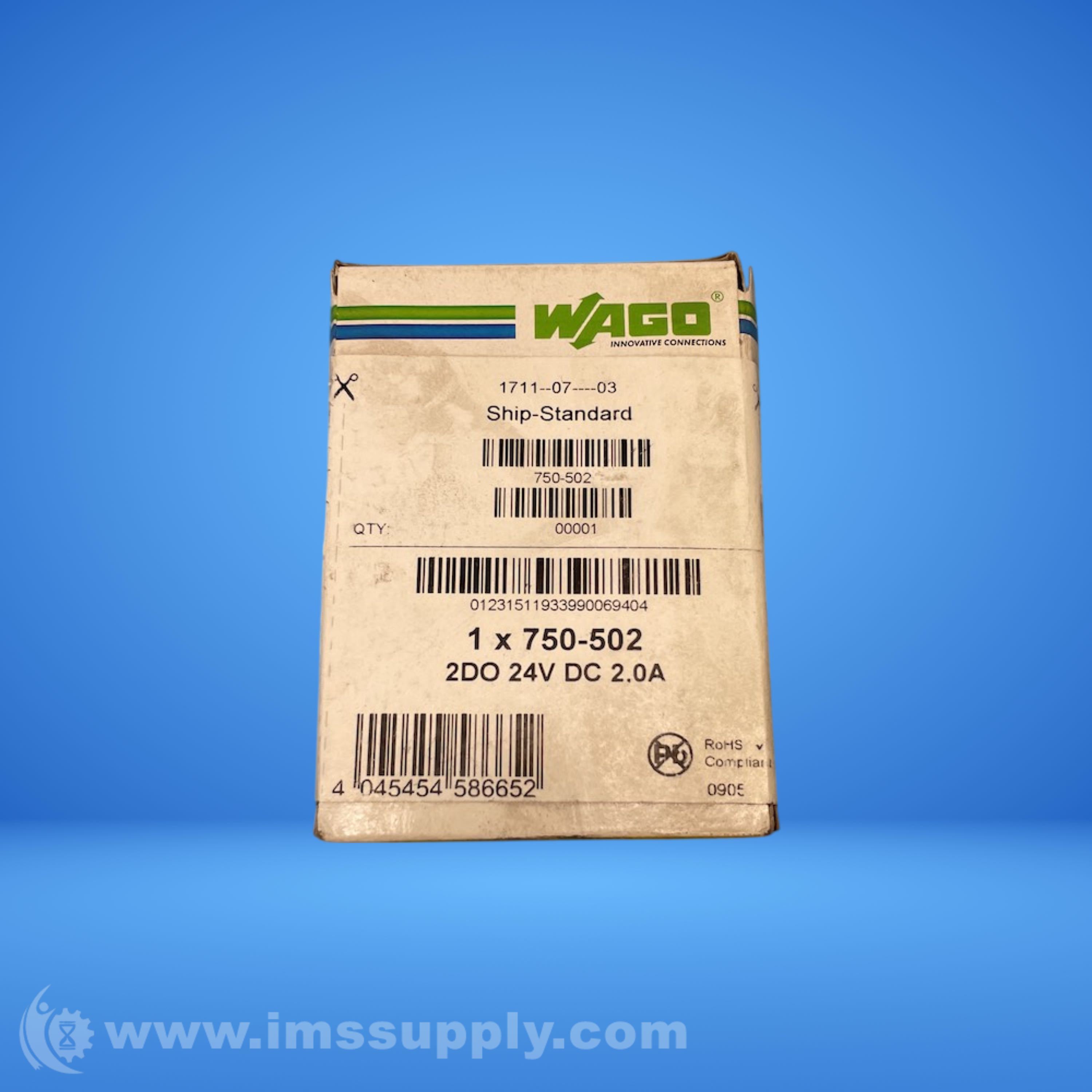

WAGO 750-502 2-CHANNEL DIGITAL OUTPUT
Quick Overview
Manufactured By: WAGO
Manufacturer Part Number: 750-502
IMS Product Code: 1964191
Packaging: Sold Individually
Description:
Wago 750-502 2-Channel Digital Output
2-channel digital output module with 24 VDC and 2.0 A output
Specifications
- Number of Circuits: 2
- Color: Gray
- Input Voltage: 24 VDC
- Output Voltage: 24 VDC
- Max Output Current: 0.5 A
- Mounting: DIN Rail
- Type: PLC Output Module
- Analog/Digital: Digital
- Termination: Cage Clamp
- Voltage Rating (DC): 24 V
- Length: 64 mm
- Width: 12 mm
- Supply Voltage (DC): 5Vdc (supplied by system)
- Frequency: 2.5kHz switching frequency
- Display: LED (A/C) green -- Status DO 1 / DO 2
- Connection Type: spring CAGE CLAMP connections
- Protection Functions: short-circuit protection
- Mounting Mode: DIN-35 rail
- Digital Outputs: 2 x digital outputs (24Vdc / 2A; high-side switching; 2-wire / 3-wire / 4-wire)
- Degree of Protection: IP20
- Dimensions: H100mm x W12mm x D69.8mm
- Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
- Ambient Air Temperature for Operation: 0 degrees C...+55 degrees C
- Ambient Air Temperature for Storage: -40 degrees C...+85 degrees C
- Humidity: 95% relative humidity (RH; non-condensing)
- Mechanical Resistance: Vibration resistance according to EN 60068-2-6 -- 4g
