WAGO 859-720 OPTOCOUPLER MODULE
Quick Overview
Manufactured By: WAGO
Manufacturer Part Number: 859-720
IMS Product Code: 1813119
Packaging: Sold Individually
Description:

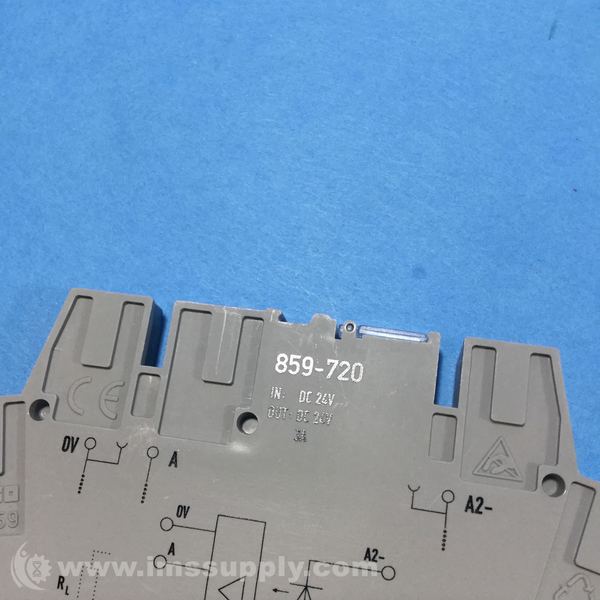

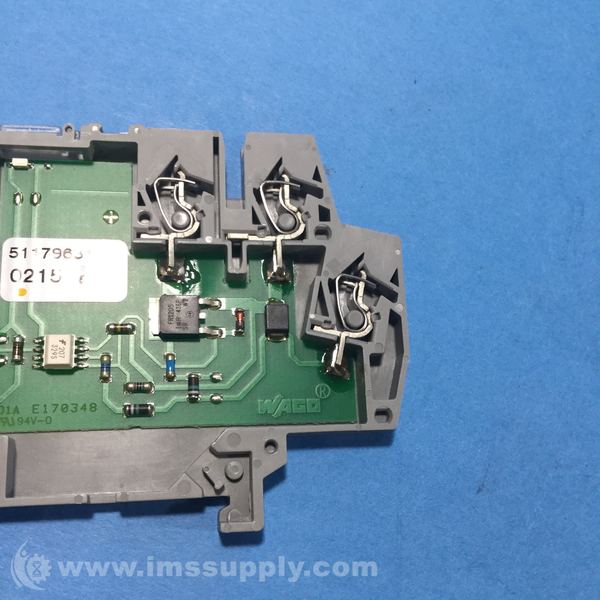

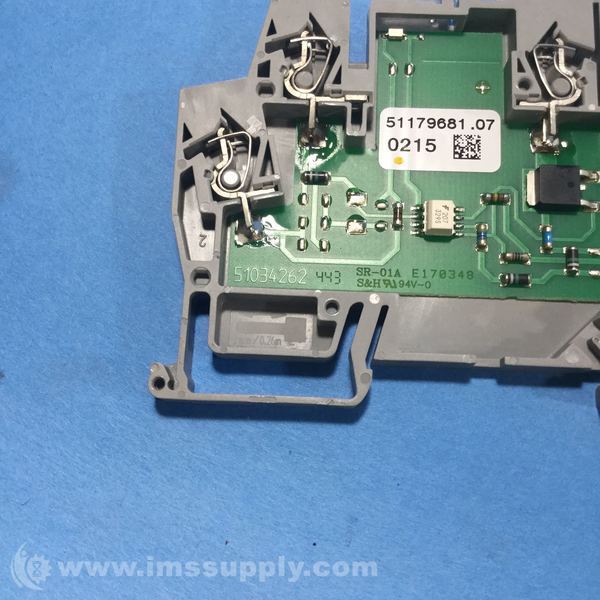

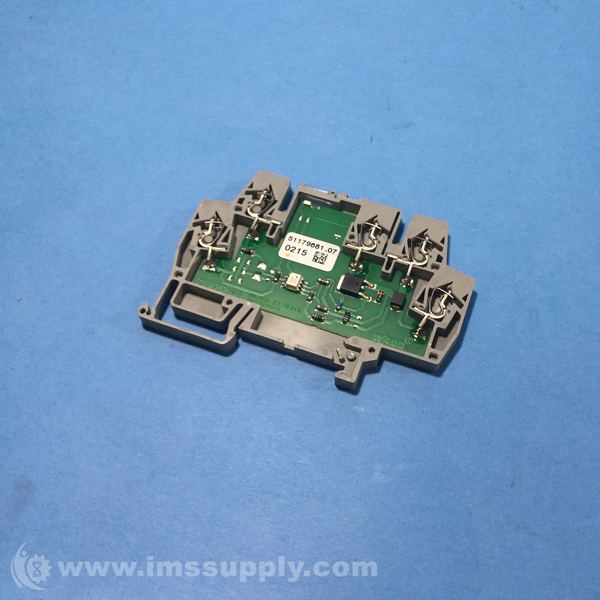

Wago 859-720 Optocoupler Module
Solid-state relay with 3-wire connection, low-side switching, and red status indicator. Nominal input voltage: 24 VDC; Output voltage range: 10-30 VDC; Limiting continuous current: 3 A.
Specifications
- Nominal Input Voltage: 24 VDC
- Output Voltage Range: 10-30 VDC
- Limiting Continuous Current: 3 A
- Connection Type: 3-wire connection/low-side switching
- Status Indicator: Red
- Module Width: 6 mm
- Color: gray
- Cross Section: 0.08-2.5 mm² / 28-14 AWG
- Strip Length: 5-6 mm
- Height: 56 mm
- Width: 6 mm
- Depth: 91 mm
- Number of Connection Points: 5
- Number of Potentials: 5
- Weight: 18.529 g
- Material: Polyamide (PA) 66
- Mounting Mode: DIN-35 rail
- Ambient Air Temperature for Operation: -25°C to 40°C
- Ambient Air Temperature for Storage: -40°C to 70°C
- Humidity: 5-95% relative humidity (non-condensing)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
