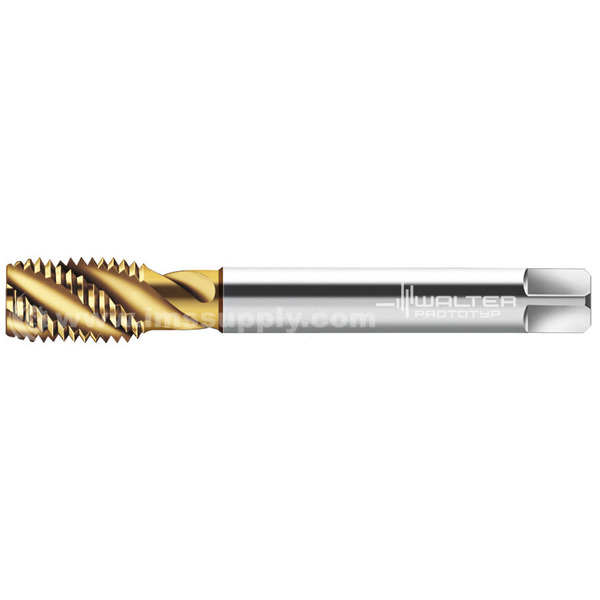

WALTER USA 5080484 TAP 1-8UNC-2B SP/FL TIN PROTOTYP
Quick Overview
Manufactured By: WALTER USA
Manufacturer Part Number: 5080484
IMS Product Code: 1788787
Packaging: Sold Individually
Description:
Walter Usa 5080484 Tap 1-8Unc-2B Sp/Fl Tin Prototyp
Specifications:
| Description | Symbol | Value |
| Thread size | DN-P | UNC 1"-8 |
| Thread size | DN | 25.40 mm |
| Functional length | l1 | 130.20 mm |
| Cutting edge length | Lc | 37.00 mm |
| Useable length | l3 | 65.60 mm |
| Connection diameter | d1 | 20.32 mm |
| clamping width | ⃞ | 15.24 mm |
| Driving square length | l9 | 20.60 mm |
| Number of grooves | N | 4.00 |
