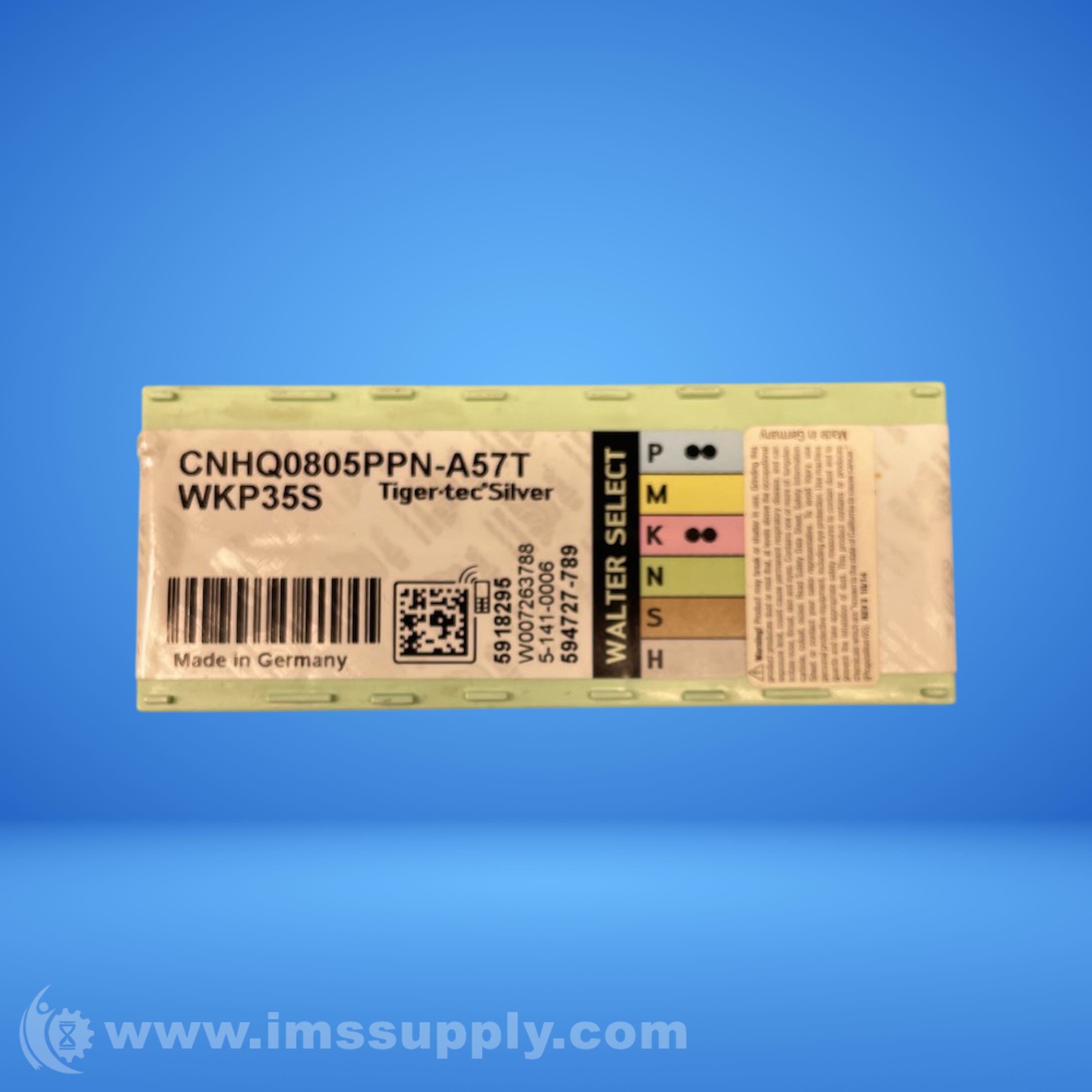

WALTER CNHQ0805PPN-A57T TANGENTIAL RHOMBIC MILLING INSERT
Quick Overview
Manufactured By: WALTER
Manufacturer Part Number: CNHQ0805PPN-A57T WKP35S
IMS Product Code: 2122391

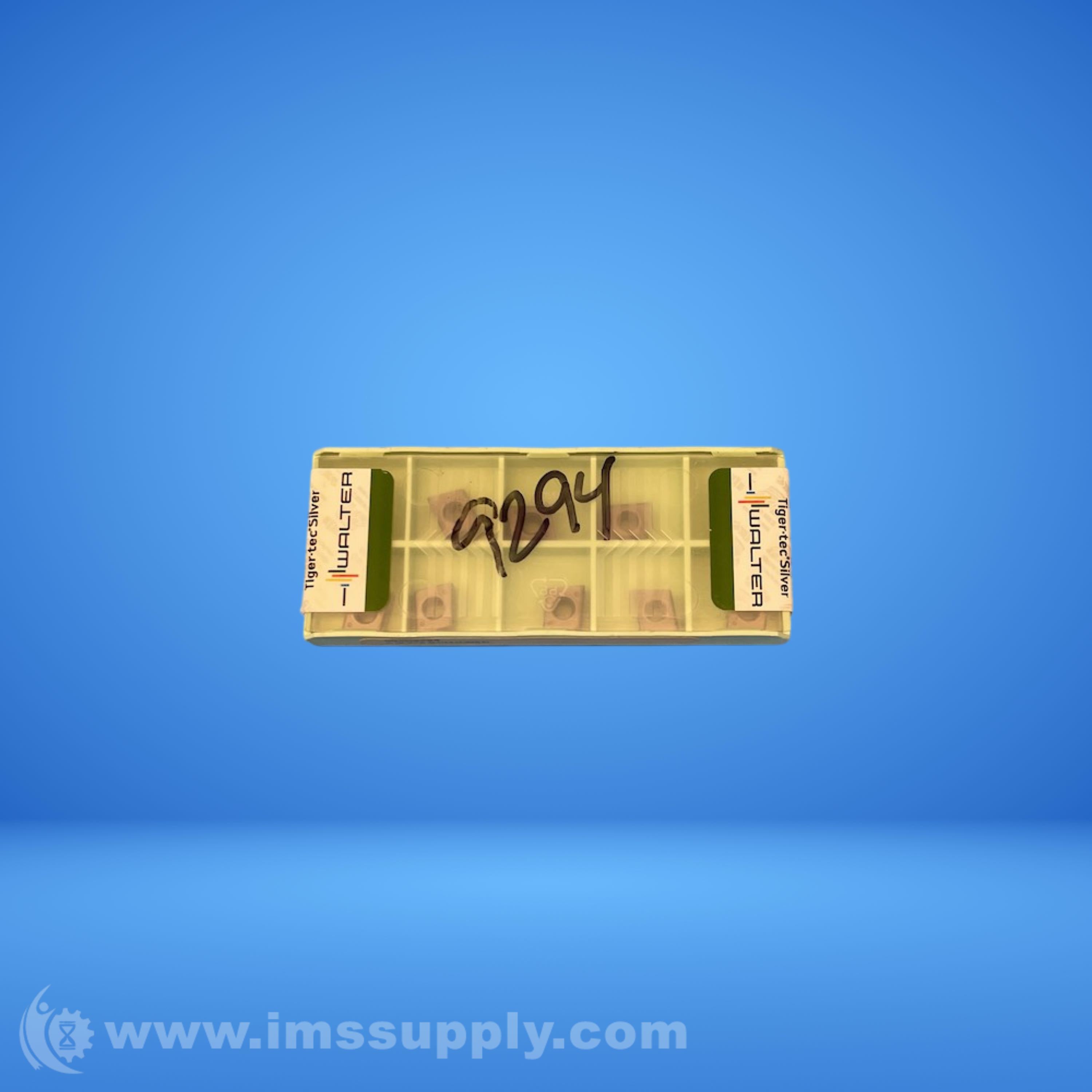

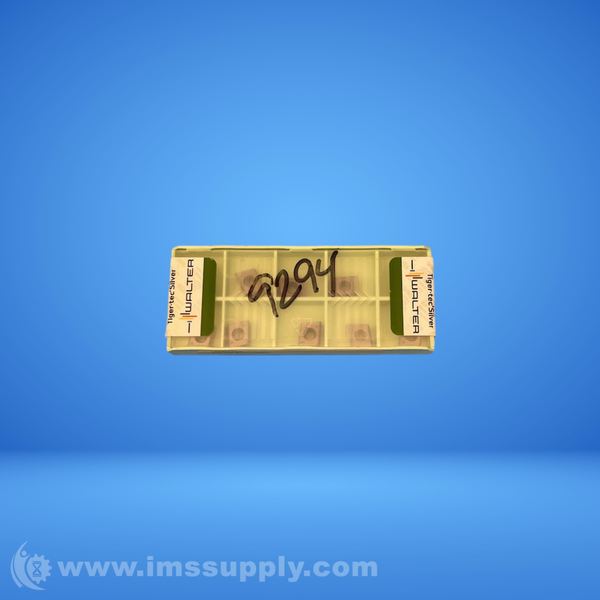

Packaging: Pack of 10
Description:
Walter CNHQ0805PPN-A57T Tangential Rhombic Milling Insert
Carbide milling insert with CVD-TiCN+Al2O3+TiCN coating, 9 mm inscribed circle diameter, 8 mm cutting edge length, 5.56 mm thickness, 0.8 mm corner radius, negative rake, 90 deg lead angle, A57T chipbreaker, WKP35S grade, for cast iron and steel applications.
Specifications
- ANSI Code: CNHQ0805PPN-A57T WKP35S
- Chipbreaker: A57T
- Corner Radius: 0.8 mm
- Cutting Edge Length: 8 mm
- Cutting Direction: Neutral
- Finish: CVD-TiCN+Al2O3+TiCN Coated
- Grade: WKP35S
- Hole Diameter: 3.4 mm
- Inscribed Circle Diameter: 9 mm
- Insert Style: CNHQ
- Insert Thickness: 5.56 mm
- Insert Width: 9 mm
- ISO Code: CNHQ0805PPN-A57T WKP35S
- Lead Angle: 90 deg
- Material: Carbide
- Material Application: Cast Iron and Steel
- Material Grade: K, P
- Number of Cutting Edges: 2
- Rake: Negative
- Shape: Tangential Rhombic
- Country of Origin: Germany
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
