WALTER VNMG160408-FP5 TURNING INSERT
Quick Overview
Manufactured By: WALTER
Manufacturer Part Number: VNMG160408-FP5 WPP10S
IMS Product Code: 2122430
Packaging: Pack of 10
Description:

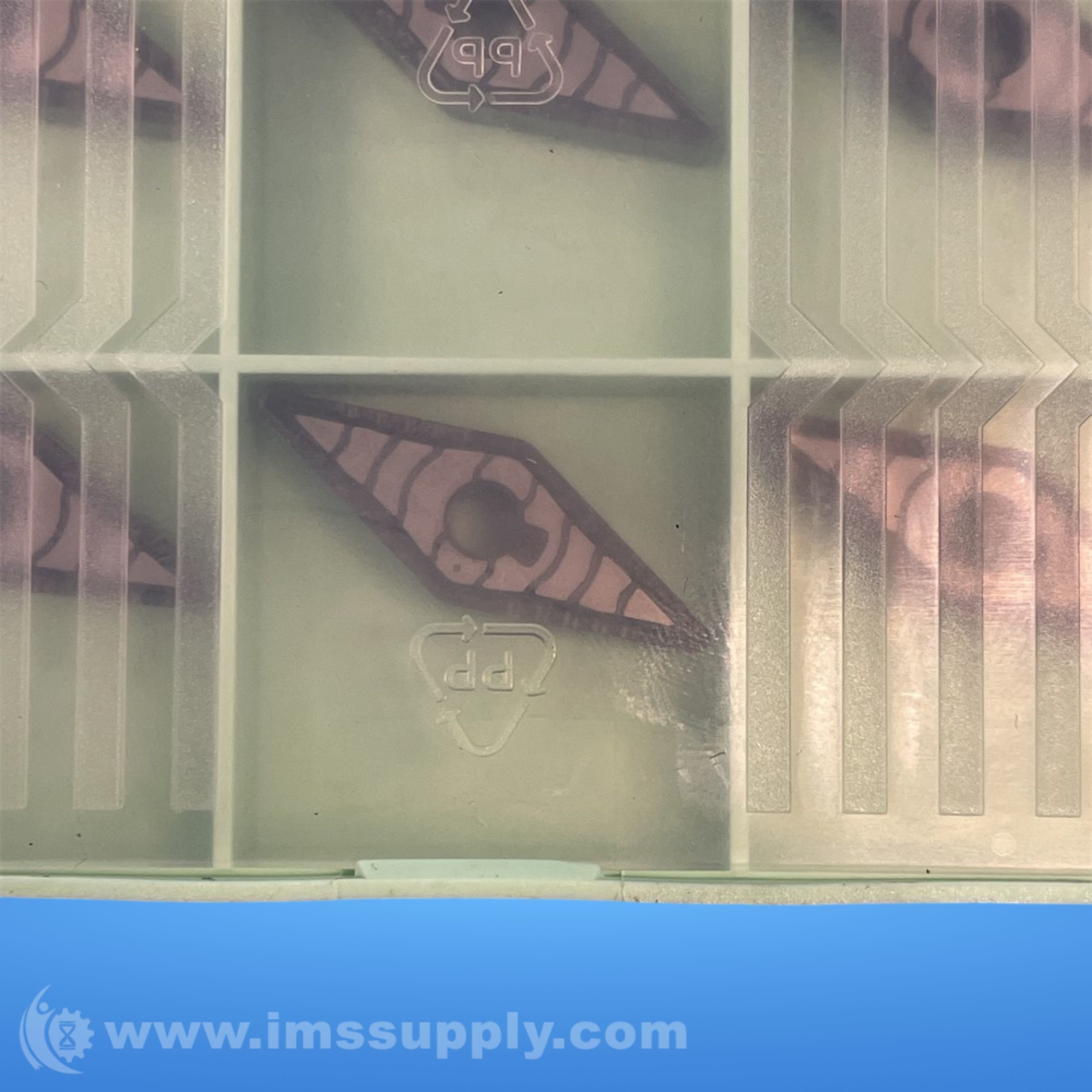

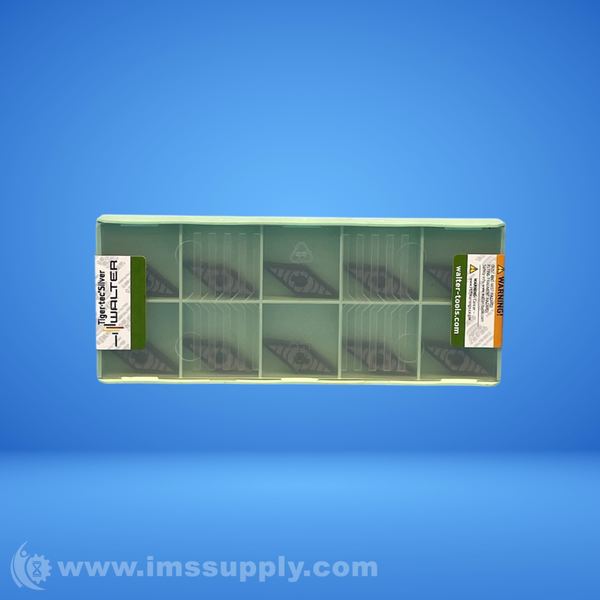

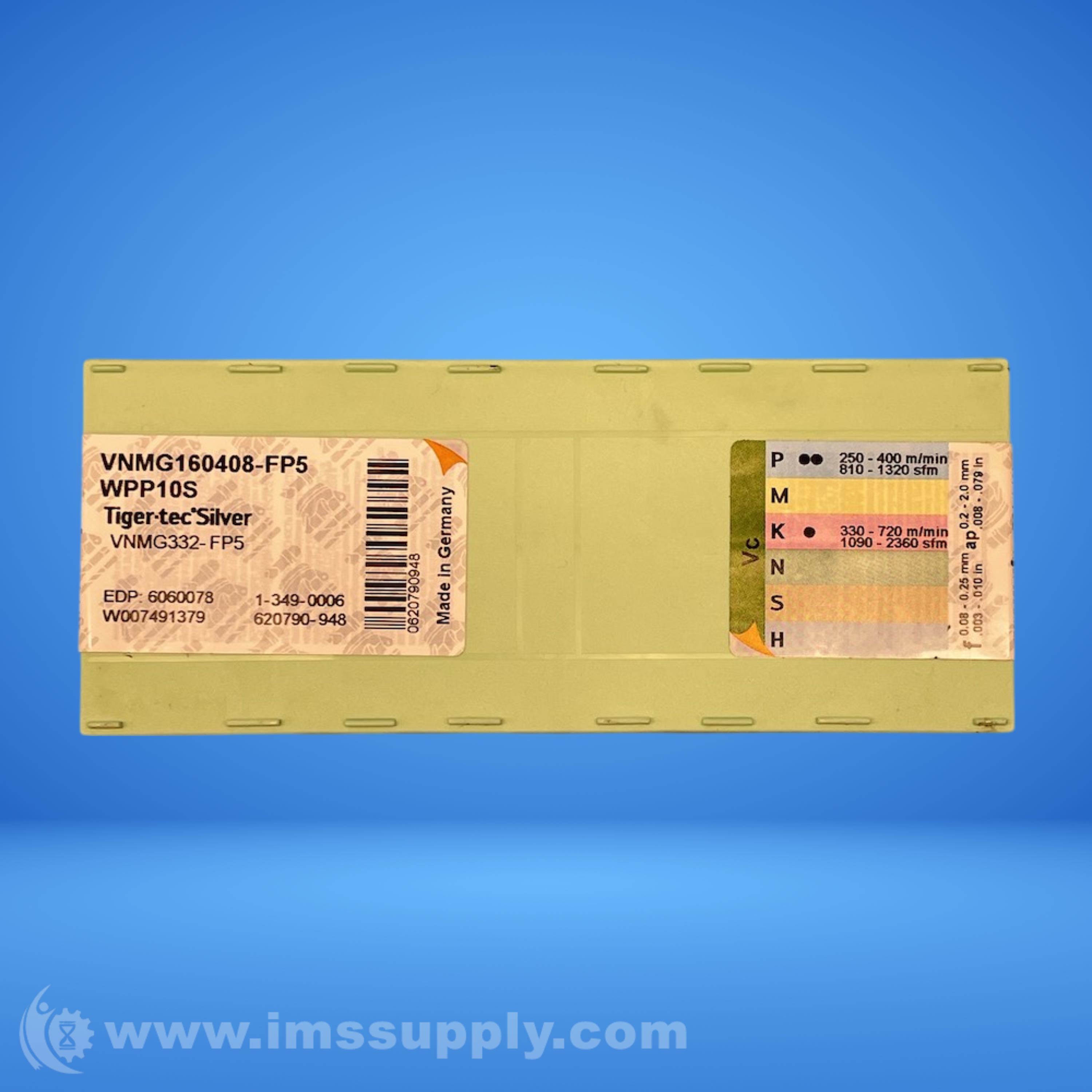

Walter VNMG160408-FP5 Turning Insert
Carbide turning insert with CVD-TiCN+Al2O3+TiCN coating, rhombic shape, 35° included angle, 0.8 mm corner radius, for steel machining
Specifications
- Insert Type: VNMG
- Size: 160408
- Grade: WPP10S
- Chipbreaker: FP5
- Material: Carbide
- Series: Tiger-tec Silver
- Shape: Rhombic
- Maximum Depth of Cut: 2 mm
- Inscribed Circle: 9.525 mm
- Thickness: 4.76 mm
- Corner Radius: 0.8 mm
- Rake: Negative
- Cutting Direction: Neutral
- Relief Angle: 0 deg
- Coating: CVD-TiCN+Al2O3+TiCN
- Material Grade: P
- For Use On: Steel
