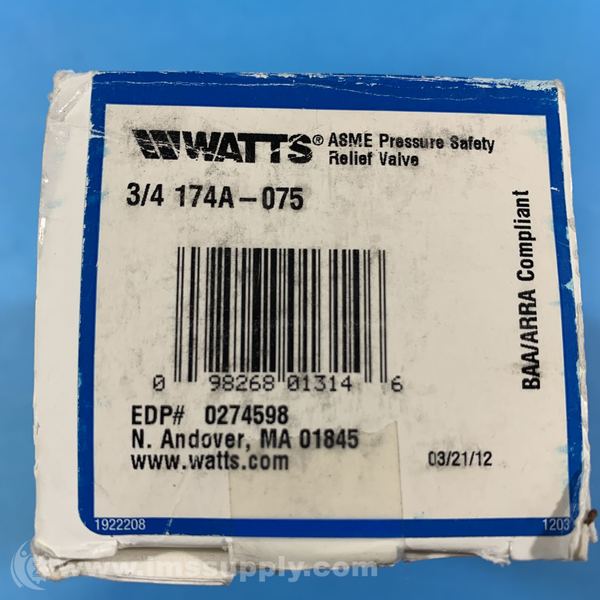

WATTS 3/4 174A-075 BRONZE BOILER PRESSURE RELIEF VALVE
Quick Overview
Manufactured By: WATTS
Manufacturer Part Number: 3/4 174A-075
IMS Product Code: 1906332
Packaging: Sold Individually
Description:
Watts 3/4 174A-075 Bronze Boiler Pressure Relief Valve
This bronze boiler pressure relief valve is used in hot water heating and domestic supply boiler applications to protect against excessive pressures. It features NPT threaded female inlet and outlet connections, non-metallic disc-to-metal seating, stainless steel spring, and test lever. Rated for 75 psi pressure relief setting and 1,320,000 BTU/hr discharge capacity.
Specifications
- Body Material: Bronze
- Connection Type: NPT x NPT
- Inlet Connection Size: 3/4 in
- Outlet Connection Size: 3/4 in
- Pressure Relief Setting: 75 psi
- Pressure Range: 30 to 150 psi
- Discharge Capacity: 1,320,000 BtuH
- Operating Temperature Range: 0 degrees F to 250 degrees F
- Dimensions: 2-1/2 in L x 5-1/8 in H
- Series: 174A
- ASME Section Code: Section IV
