WATTS STM-F&TTRP-6G-15 FLOAT AND THERMOSTATIC STEAM TRAP
Quick Overview
Manufactured By: WATTS
Manufacturer Part Number: STM-F&TTRP-6G-15
IMS Product Code: 2133246
Packaging: Sold Individually
Description:

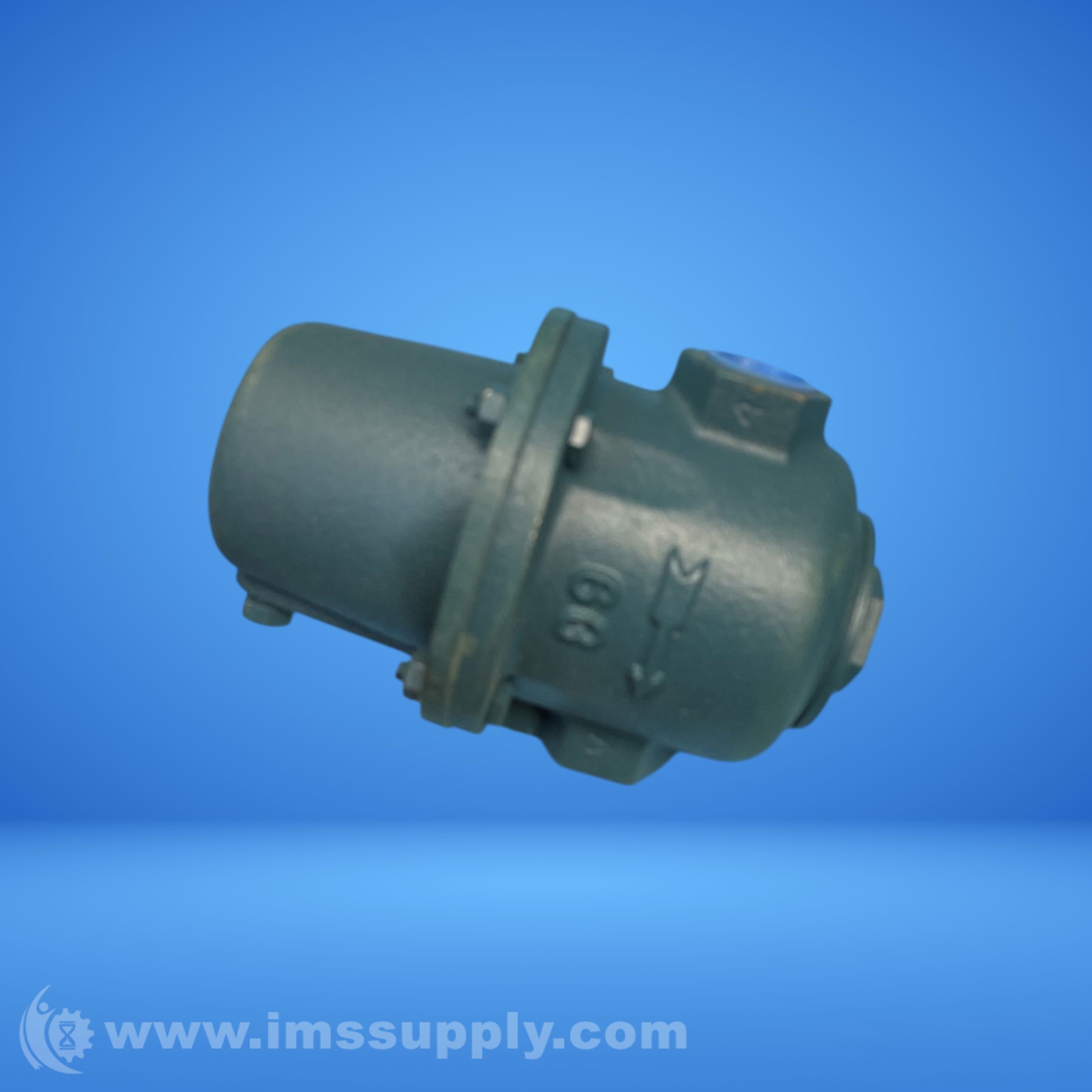

Watts STM-F&TTRP-6G-15 Float and Thermostatic Steam Trap
This 3/4 inch float and thermostatic steam trap is designed for use on modulating process equipment and as main distribution line drip traps. It features a straight through design for fast and simple installation. The stainless steel valve head and seat provide long service life.
Specifications
- Body Material: Cast Iron
- Body Pattern: Straight
- Inlet Connection Size: 3/4 IN
- Inlet Connection Size-Metric: 20 MM
- Inlet Connection Type: Female Threaded
- Inlet Thread Type: NPT
- Maximum Pressure-PSI: 50
- Maximum Steam Pressure-PSI: 15
- Maximum Working Pressure-PSI: 15
- Outlet Connection Size: 3/4 IN
- Outlet Connection Type: Female Threaded
- Outlet Thread Type: NPT
- Pressure Adjustment Range: 25 IN HG to 15 PSI
- Series: G
- Suitable Media: steam

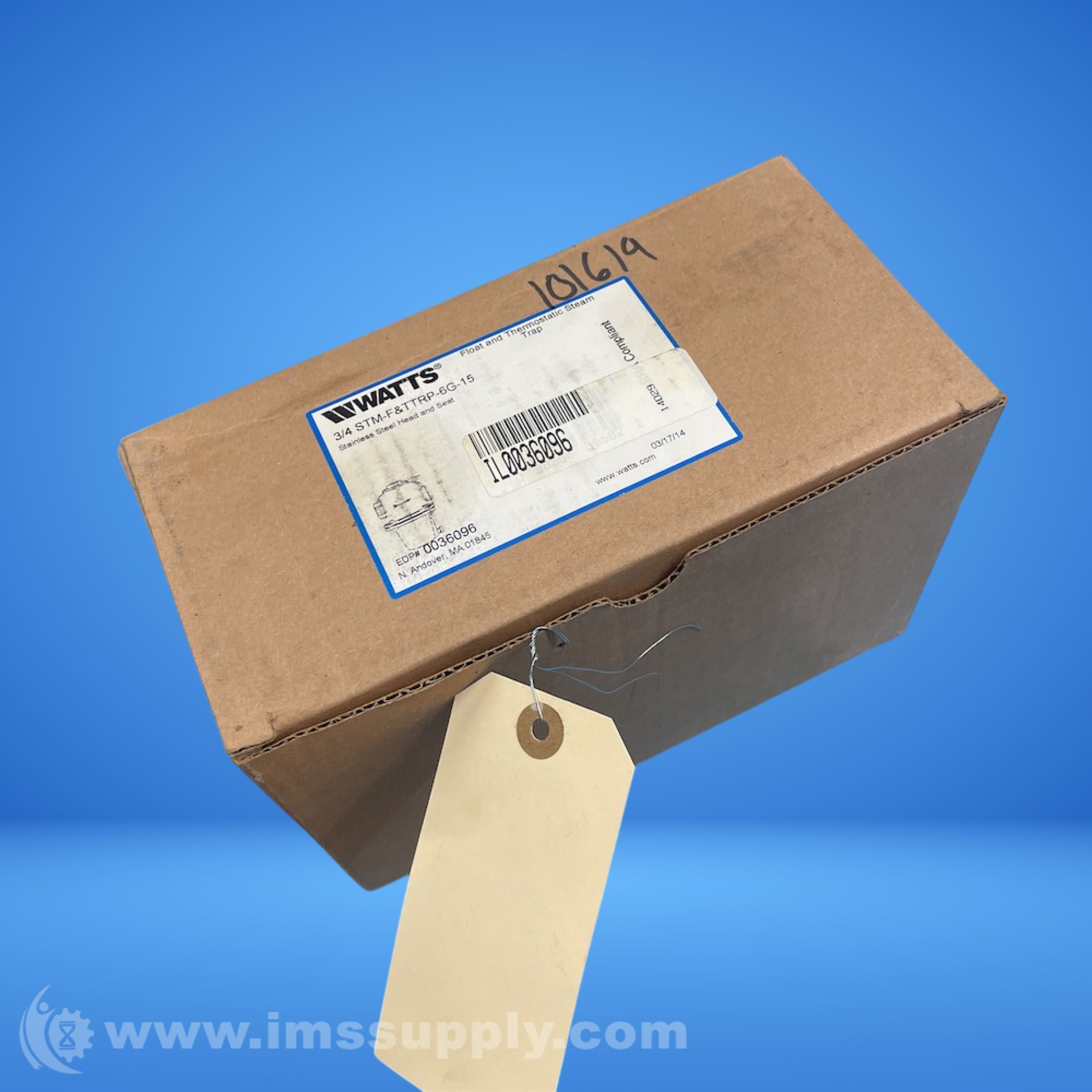

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
