WEG 00118XP3E143T 1HP EXPLOSION-PROOF MOTOR
Quick Overview
Manufactured By: WEG
Manufacturer Part Number: 00118XP3E143T
IMS Product Code: 1808917
Packaging: Sold Individually
Description:

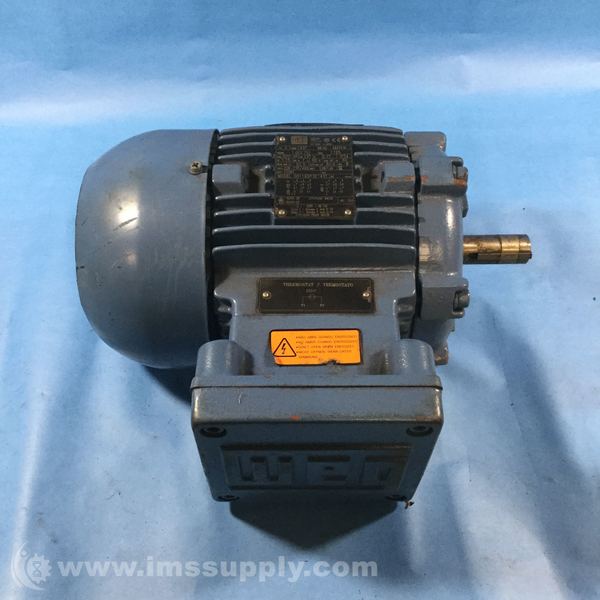

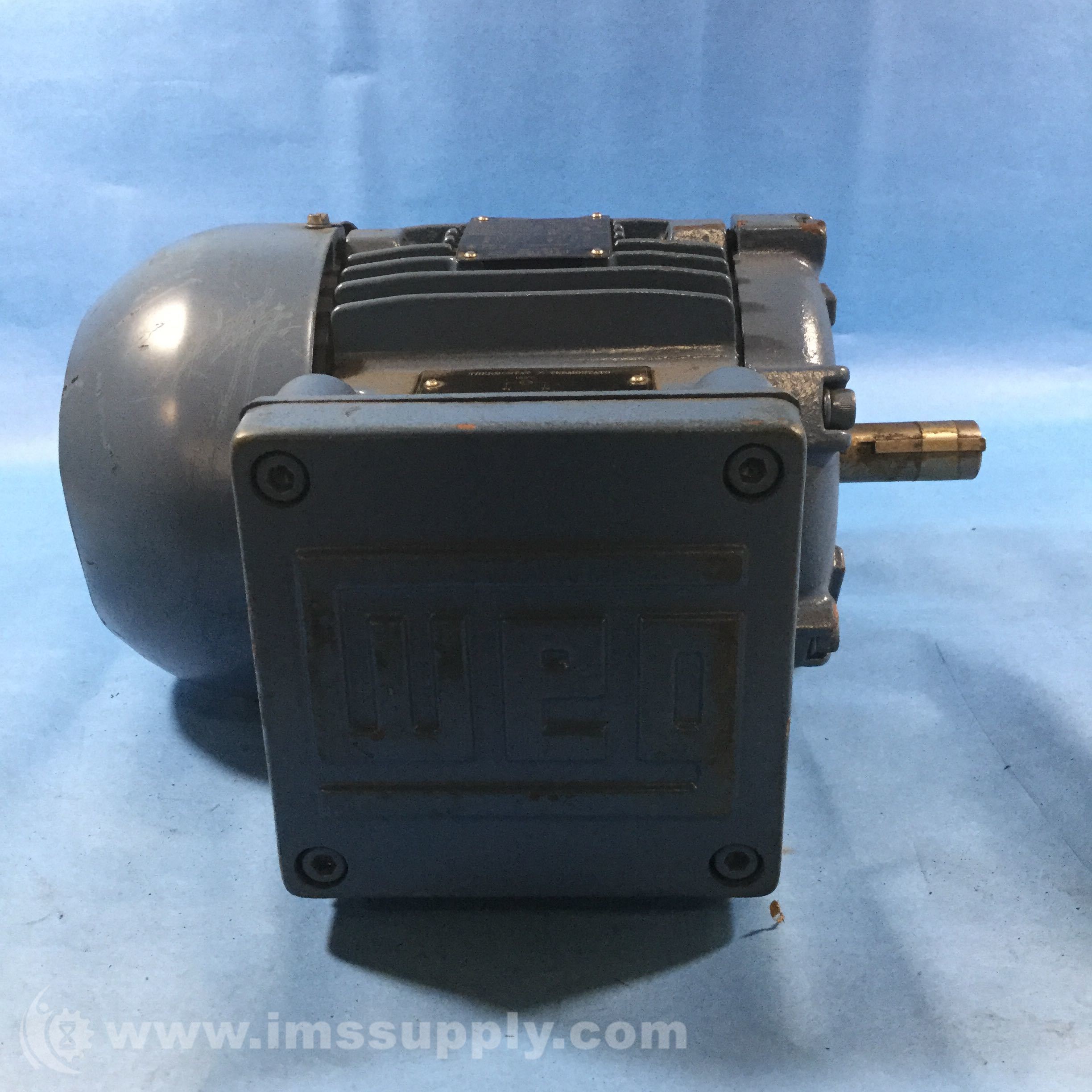

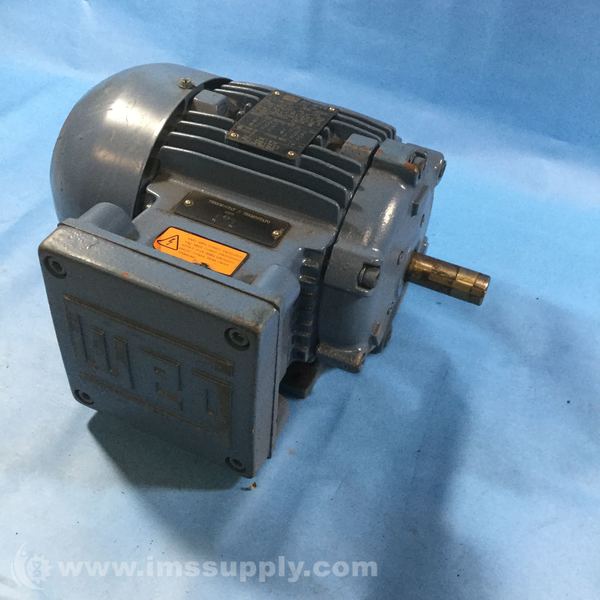

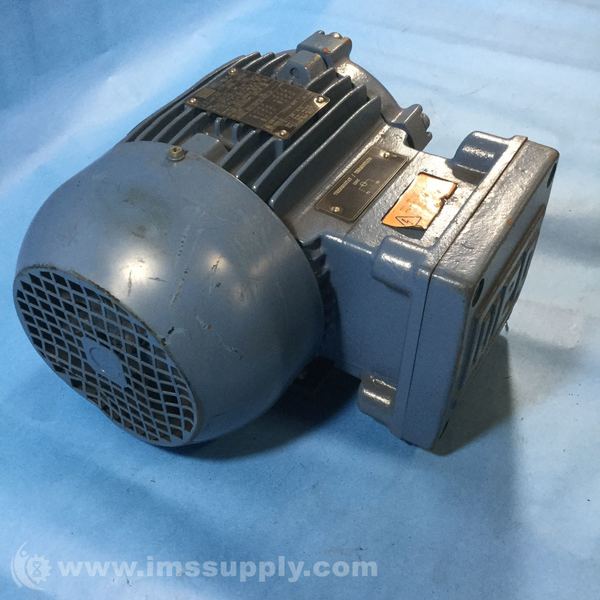

WEG 00118XP3E143T 1HP Explosion-Proof Motor
Three-phase explosion-proof motor with 1 HP output, 1800 RPM, 208-230/460V, TEFC enclosure, cast iron frame, and squirrel cage rotor.

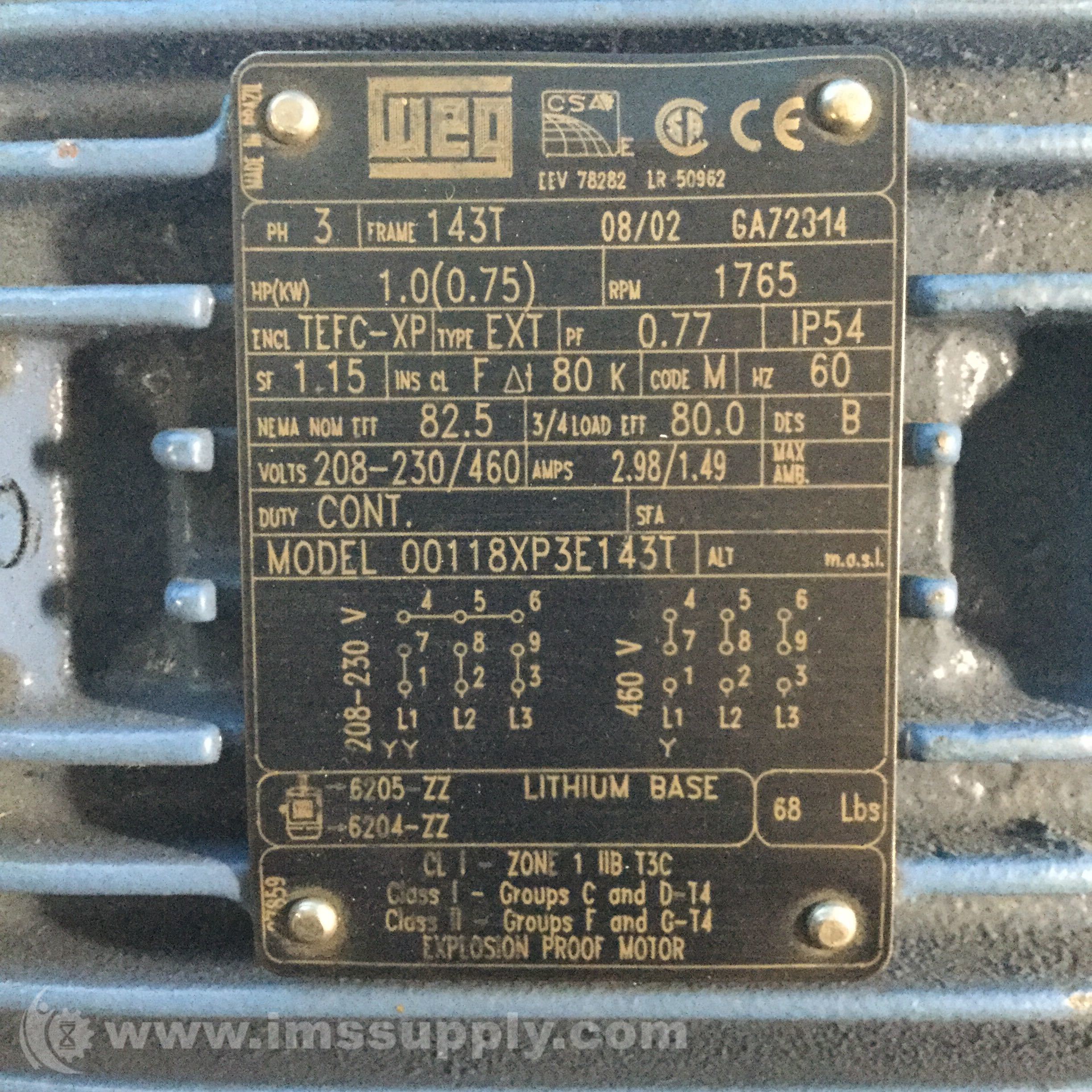

Specifications
- HP: 1
- RPM: 1800
- Frame: 143T
- Volts: 208/230/460
- Phase: 3
- Enclosure: Totally Enclosed Fan Cooled - TEFC (IP54)
- Type: Squirrel cage rotor / Aluminum die cast
- Bearings: Ball bearings
- Frame Material: Cast iron
- Insulation Class: F
- Temperature Rise: Class B (80C)
- Service Factor: 1.15
- Duty: Continuous Duty (S1)
- Ambient Temperature: 104F (40C)
- Altitude: 3300 ft (1000 m)
- Shaft Material: 1045 Carbon Steel
- Weight: 68 lbs
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
