WEIDMULLER 1012600000 GROUND TERMINAL BLOCK
Quick Overview
Manufactured By: WEIDMULLER
Manufacturer Part Number: 1012600000
IMS Product Code: 1615385
Packaging: Sold Individually
Description:

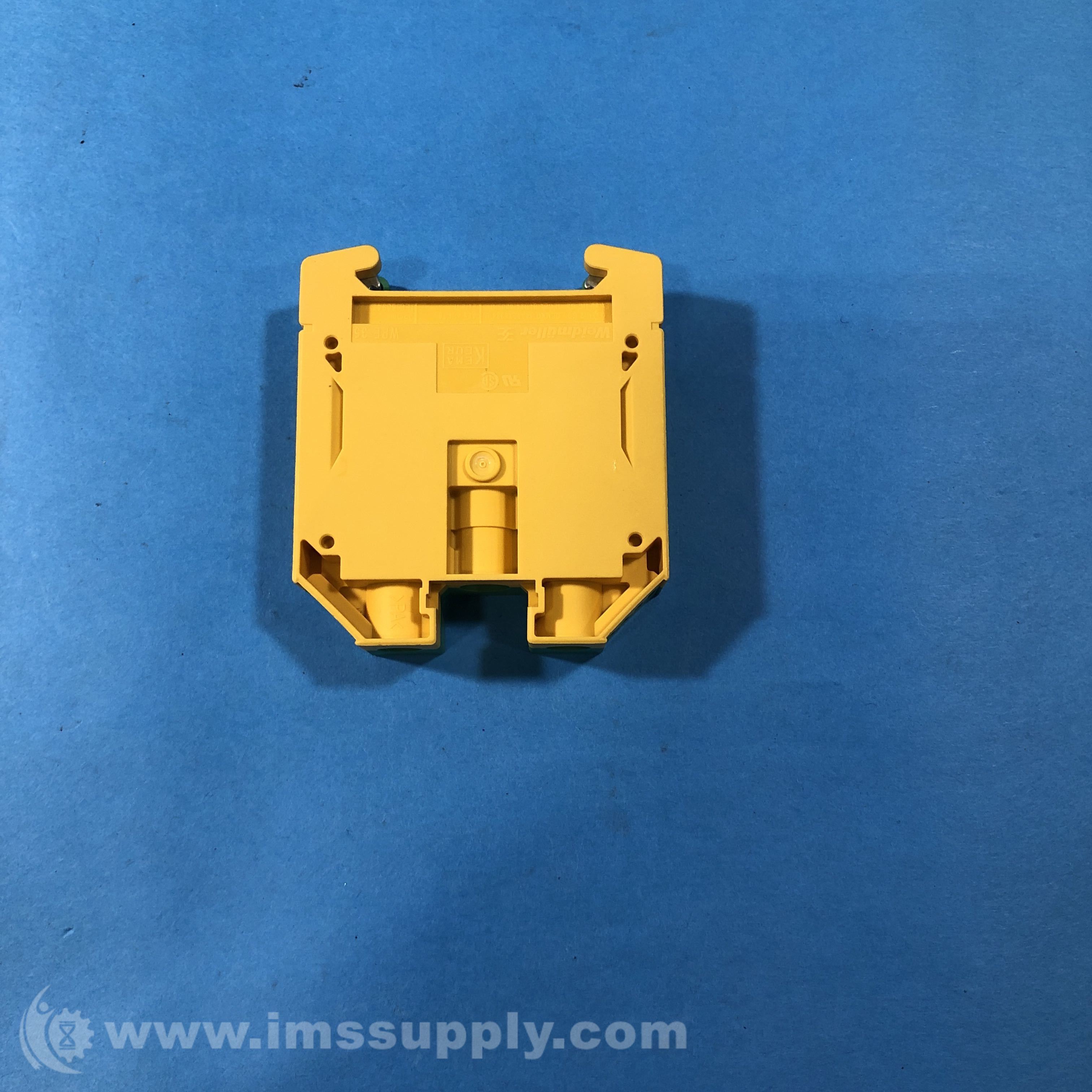

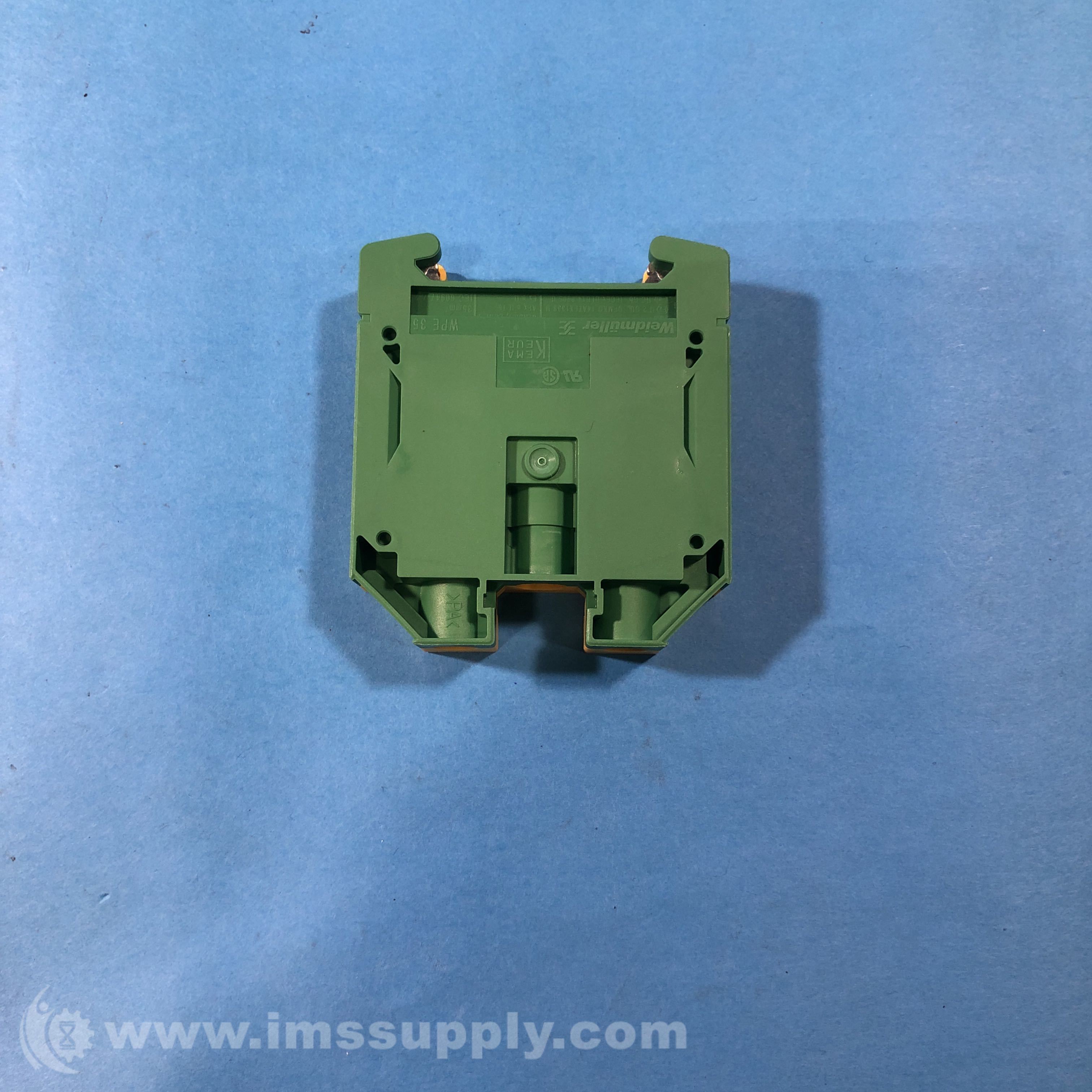

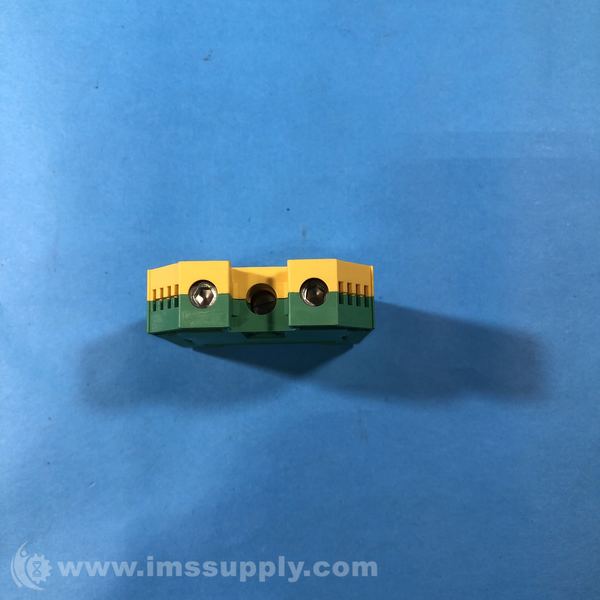

Weidmuller 1012600000 Ground Terminal Block
Grounding/earthing terminal block with screw connection for 2.5mm˛...35mm˛ conductors, rated short-time current 4200A, green-yellow, TS35 DIN rail mounting.
Specifications
- Connection Type: Screw connection
- Rated Current: 4200A
- Conductor Capacity: 2.5mm˛...35mm˛
- Color: Green-Yellow
- Mounting Mode: TS35 DIN rail mounting
- Dimensions: H56mm x W16mm x D62.5mm
- Material: Wemid composite thermoplastic
- Ambient Air Temperature: -60...+130 degrees C
- Standards: IEC 60947-7-2
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
