WEIDMULLER AKZ 1.5 FEED-THROUGH TERMINAL BLOCK
Quick Overview
Manufactured By: WEIDMULLER
Manufacturer Part Number: AKZ 1.5
IMS Product Code: 1904536
Packaging: Sold Individually
Description:
Weidmuller AKZ 1.5 Feed-Through Terminal Block
Weidmuller AKZ 1.5 feed-through terminal block with screw connection, 1.5 mm² cross-section, 17.5 A rated current, 250 V rated voltage
Specifications
- type: Feed-through terminal block
- connection method: Screw connection
- color: beige / yellow
- cross-section: 1.5 mm²
- rated current: 17.5 A
- rated voltage: 250 V
- number of connections: 2
- series: AKZ
- termination method: Screw
- material: PA 66
- mounting type: TS15 Rail Mount
- width: 5.1 mm
- depth: 24 mm
- height: 24.8 mm
- stripping length: 7 mm
- max clamping range: 2.5 mm²
- min clamping range: 0.21 mm²
- wire cross section: 1.5 mm²
- connection direction: Right
- min operating temperature: -60 °C
- max operating temperature: +130 °C
- certifications: CCCEX;CE;CSA;IEC Ex;INMETRO;KEMA;KEUR;UR;RoHS
Used (Special):

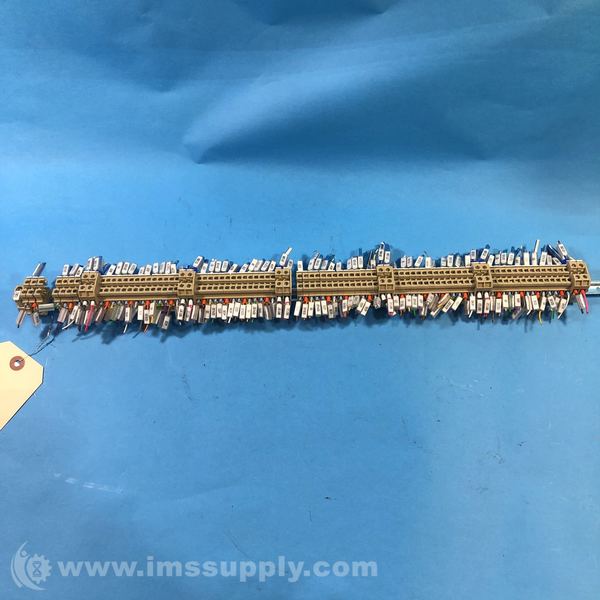

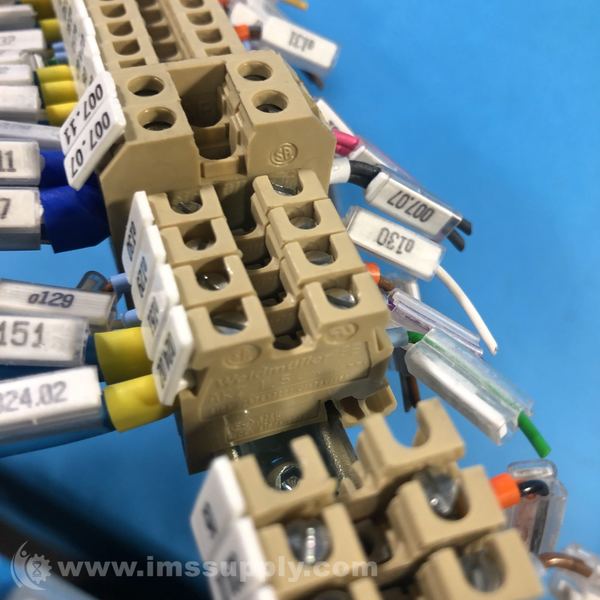

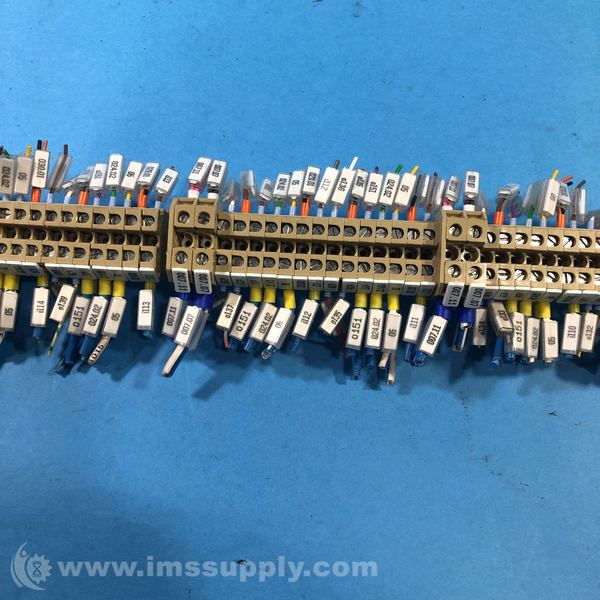

89 Weidmuller AKZ 1.5 attached on a Din Rail.
