WEIDMULLER WDU 2.5 FEED-THROUGH TERMINAL BLOCK
Quick Overview
Manufactured By: WEIDMULLER
Manufacturer Part Number: WDU 2.5
IMS Product Code: 1811021
Variation: Unspecified
Unspecified
Color: Blue
Color: Yellow
Packaging: Sold Individually
Sold Individually
Box of 100
Description:

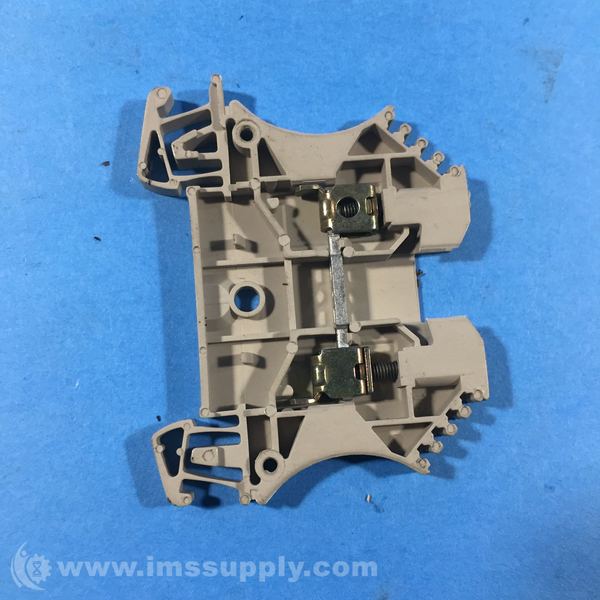

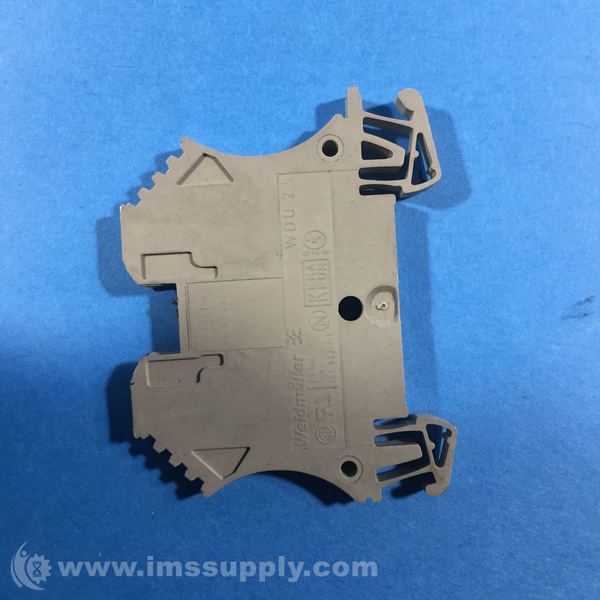

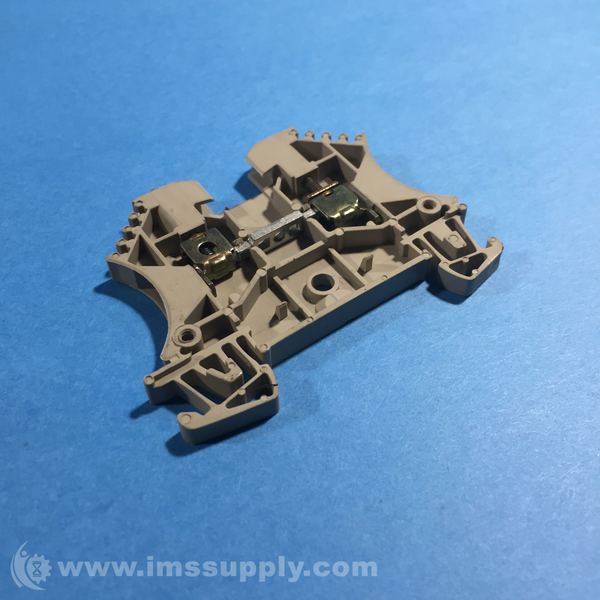

Weidmuller WDU 2.5 Feed-Through Terminal Block
Feed-through terminal block with screw connection, 2.5 mm² nominal cross section, 800 V rated voltage, 24 A rated current, DIN rail mount, dark beige color
Specifications
- connection type: Screw Connection
- color: dark beige
- cross section: 2.5 mm²
- current rating: 24 A
- voltage rating: 800 V
- number of connections: 2
- series: WDU
- nominal cross section: 2.5 mm²
- number of levels: 1
- mounting type: DIN Rail
- material: Polyamide
- flammability rating: UL 94 V-0
- operating temperature: -50°C to +120°C
- tightening torque: 0.5 Nm
- wire stripping length: 8 mm
- conductor cross section: 0.05 mm² to 4 mm²
- AWG: 30 to 12
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
