WEIDMULLER ZDK 2.5 FEED-THROUGH TERMINAL
Quick Overview
Manufactured By: WEIDMULLER
Manufacturer Part Number: ZDK2.5
IMS Product Code: 1566817
Packaging: Sold Individually
Description:

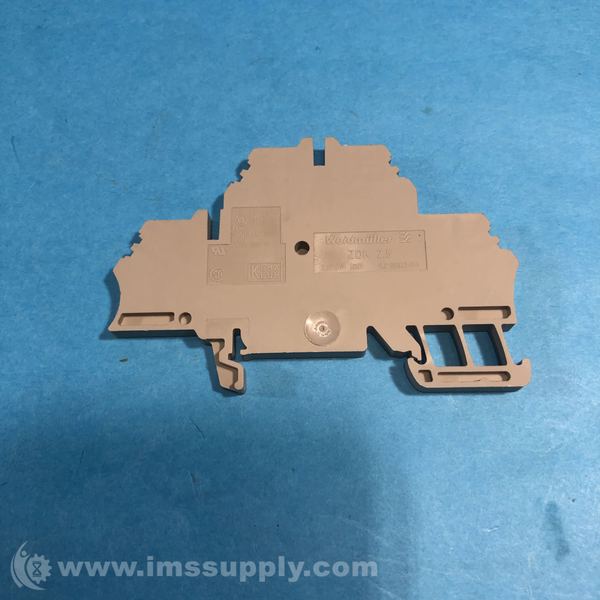

Weidmuller ZDK 2.5 Feed-Through Terminal
Double-level feed-through terminal block with tension clamp connection, 2.5 mm˛, 500 V, 20 A, beige
Specifications
- Connection Capacity: 2.5 mm˛
- Voltage Rating: 500 V
- Current Rating: 20 A
- Color: Beige
- Connection Type: Tension-clamp connection
- UL Rating: 300 V / 10 Amp / #30..12 AWG
- Dimensions: 5mm W x 80mm L x 54mm H
- Type: Feed Through Terminal
- Width: 5.10 mm
- Material: Wemid
- Blade Size: 0.60 x 3.50 mm
- Cable Size: 24 to 14 AWG
- Model/Series: Z
- Mounting Type: TS35 Rail Mount
- Number of Levels: 2
- Stripping Length: 10 mm
- Max Clamping Range: 2.50 mm˛
- Min Clamping Range: 0.05 mm˛
- Wire Cross Section: 2.50 mm˛
- Connection Direction: Right
- Number of Connections: 4
- Max Operating Temperature: +120 degrees C
- Min Operating Temperature: -50 degrees C
- Depth: 53 mm
- Height: 79.50 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 16 In Stock
Ships on Monday, February 16, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
