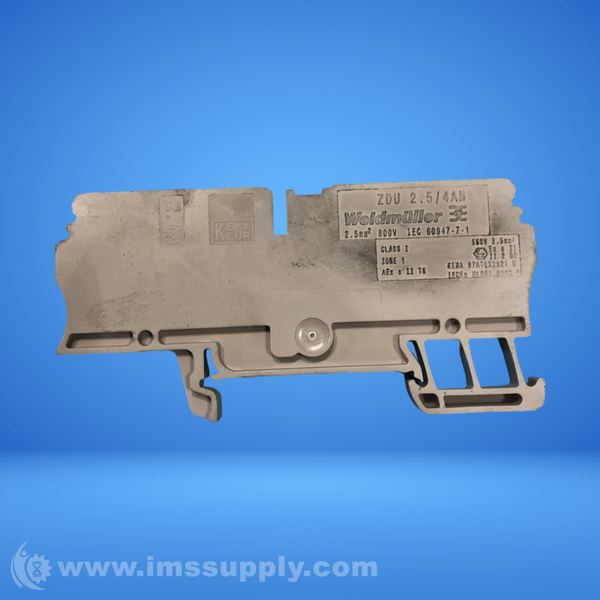

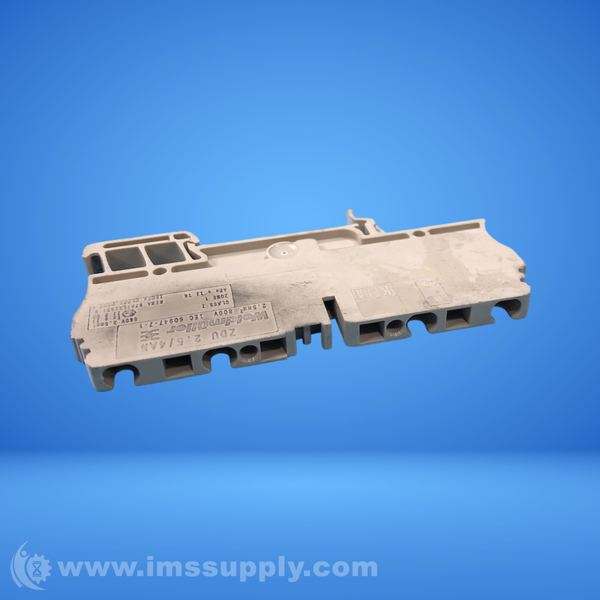

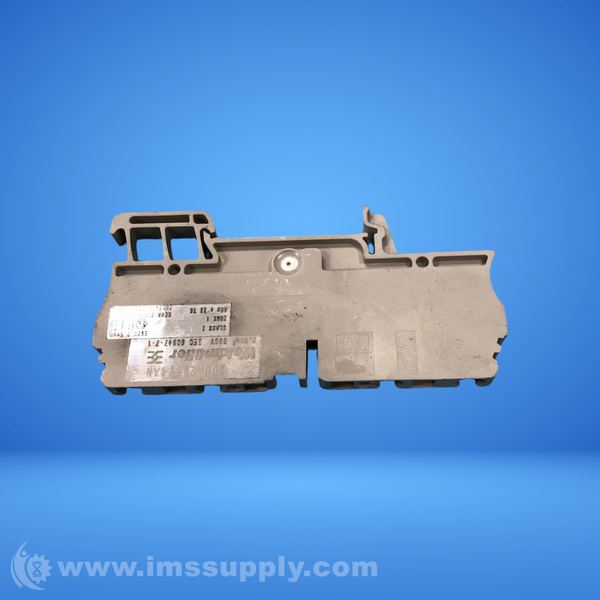

WEIDMULLER ZDU 2.5/4AN FEED-THROUGH TERMINAL BLOCK
Quick Overview
Manufactured By: WEIDMULLER
Manufacturer Part Number: ZDU-2.5/4AN
IMS Product Code: 1560066
Packaging: Sold Individually
Description:
Weidmuller ZDU 2.5/4AN Feed-Through Terminal Block
Feed-through terminal with tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
Specifications
- connection technology: Tension-clamp connection
- rated voltage: 800 V
- rated current: 24 A
- cross section: 2.5 mm²
- color: dark beige
- number of positions: 4
- wire size awg min: 30AWG
- wire size awg max: 12AWG
- conductor area csa: 4mm²
- wire connection method: Clamp
- number of levels: 2
- insulation material: Wemid
- insulation color: Dark Beige
- overall length: 38.5 mm
- overall height: 79.5 mm
- overall width: 5.1 mm
- minimum conductor size: 26 AWG
- maximum conductor size: 12 AWG
- minimum operating temperature: -50 °C
- maximum operating temperature: +120 °C
- maximum voltage rating: 800 V
- standards met: IEC 60947-7-1;RoHS Compliant
