WIKA TI.20 BIMETAL THERMOMETER
Quick Overview
Manufactured By: WIKA
Manufacturer Part Number: TI.20
IMS Product Code: 2123585
Packaging: Sold Individually
Description:

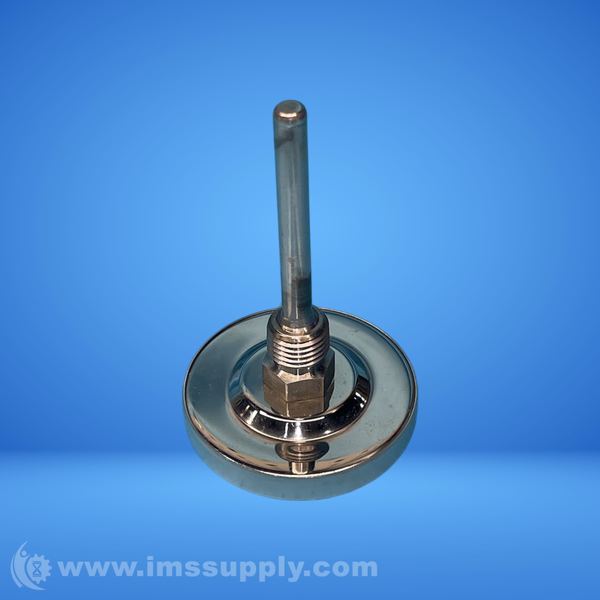

Wika TI.20 Bimetal Thermometer
Industrial Grade - All Stainless Steel Construction, 2" Dial size, Back Connected
Specifications
- Size: 2" (50.8 mm)
- Accuracy: + 1.0% full scale value (per ASME B40.3, Grade A)
- Min. / Max. Ranges: From -100�F to (+70�C) to + 1000�F (+540�C)
- Working Range: Steady: full scale value, Short time: 110% of full scale value
- Under / Over Range Protection: =+500�F (+260�C): Temporary up to 50% of full scale, >500�F (+260�C): Continuous to +800�F (+427�C), Intermittent up to + 1000�F (+538�C)
- Connection: Material: 304 stainless steel, Center back mount (CBM), �" NPT
- Stem: Material: 304 stainless steel, Diameter: �" (6.35 mm), Length: 2 �" to 24" (63.5 mm to 609.6 mm)
- Measuring Element: Bi-metal helix
- Case: Material: 304 stainless steel; hermetically sealed per ASME B40.3 standard

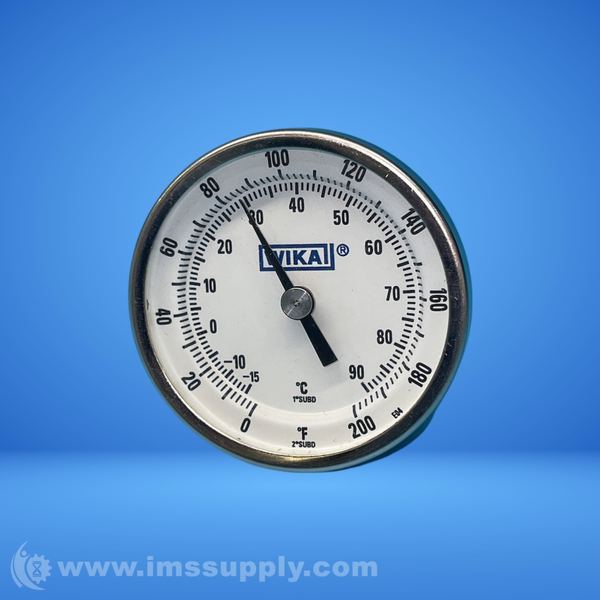

- Dial: White aluminum, dished, with black markings
- Pointer: Black aluminum
- Standard Scales: Single: Fahrenheit or Celsius, Dual: Fahrenheit (outer) and Celsius (inner)
- Window: Flat instrument glass
- Weight: 5 oz. (142g) 2" dial; Add 1 oz. (28g) for every 2" (50mm) of stem length
- Dampening: Inert gel to minimize pointer oscillation

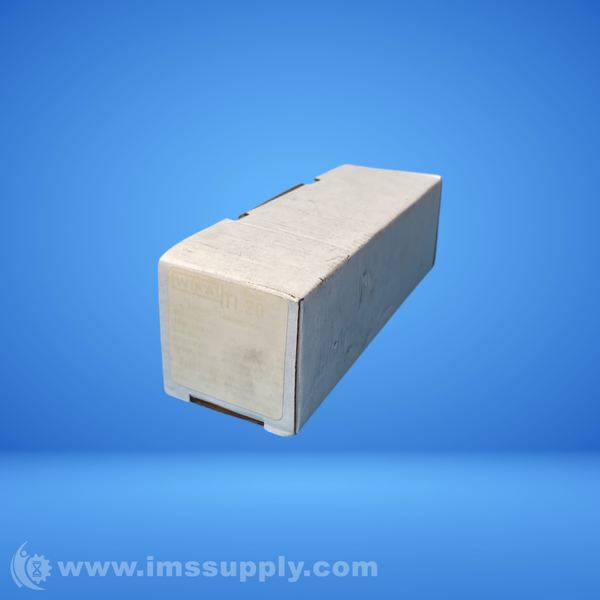

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
