WINTERS PEM1421 PRESSURE GAUGE
Quick Overview
Manufactured By: WINTERS
Manufacturer Part Number: PEM1421
IMS Product Code: 1838515
Packaging: Sold Individually
Description:

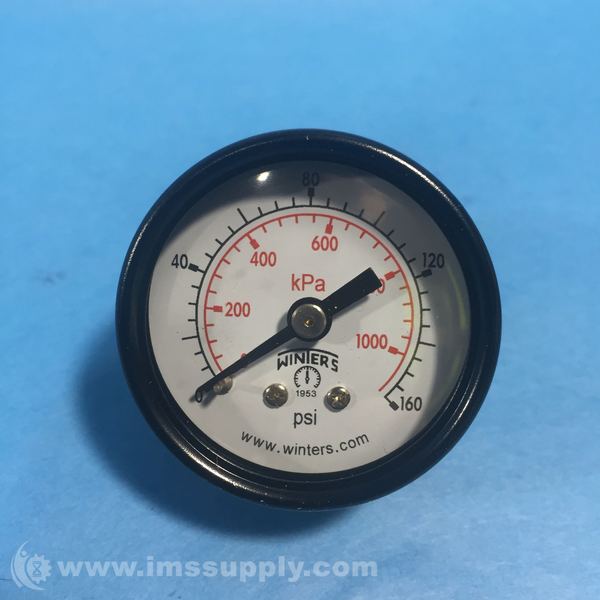

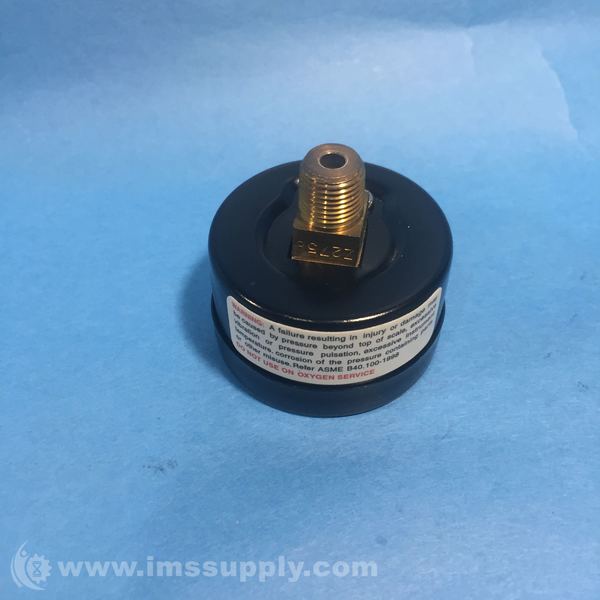

Winters PEM1421 Pressure Gauge
1.5-inch diameter pressure gauge with 1/8-inch NPT back connection, measuring pressure up to 160 psi.
Specifications
- Connection Diameter: 1/8 in
- Maximum Pressure: 160 psi
- Face Diameter: 1.5 in (38.1 mm)
- Mounting Position: Back Mount
- Dial size: 1.5" (40mm)
- Connection: 1/8" Back
- Lens: Acrylic
- Ring: Steel, painted black
- Socket: Brass
- Bourdon Tube: Phosphor bronze
- Movement: Brass
- Ambient/Process Temperature: -40°F to 150°F (-40°C to 65°C)
- Accuracy: ±3-2-3% ANSI/ASME Grade B
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
