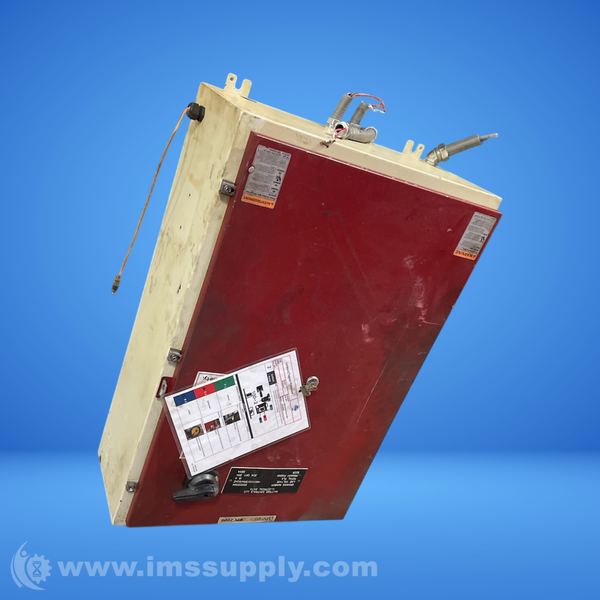

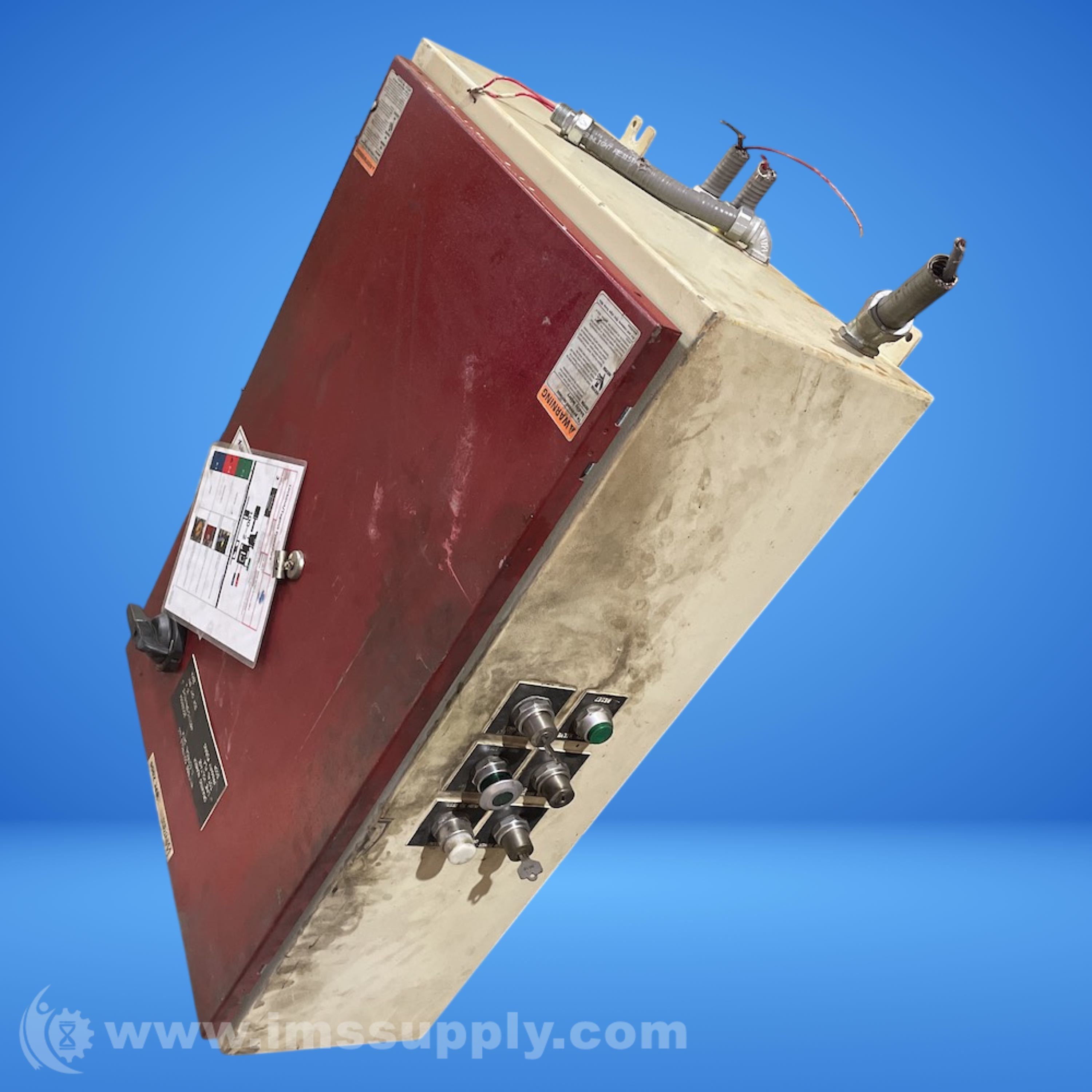

WINTRISS WPC 2000 CLUTCH/BRAKE CONTROL
Quick Overview
Manufactured By: WINTRISS CONTROLS
Manufacturer Part Number: WPC 2000
IMS Product Code: 2146544
Packaging: Sold Individually
Description:
Wintriss WPC 2000 Clutch/Brake Control
The Wintriss WPC 2000 is a dual-microprocessor-based clutch/brake control system designed for part-revolution mechanical power presses. It integrates advanced safety, diagnostic, and press-timing features into a compact, modular enclosure, meeting ANSI and OSHA Control Reliability standards.
Specifications
- Enclosure Dimensions: 14.00 x 19.62 x 7.00 in. (355.6 x 498.3 x 177.8 mm), NEMA 12, shock-mounted
- Panel Mount Dimensions: 7.50 x 10.00 in. (190.5 x 254.0 mm)
- Operating Voltage: 24 ± 5% VDC, 2 A (if not using AC supply)
- AC Power Supply (Included): Input: 100–240 VAC, 75 VA; Output: 24 ± 1% VDC, 200 mA
- Temperature Range: 32°F to 122°F (0°C to 50°C)
- Inputs: Resolver, Overrun limit switch, 2 operator stations, DSV monitor, Air pressure switch
- Additional Inputs: Shadow light curtains, Motor forward/reverse, Cross-checked E-stop pairs
- Outputs: DSV relays (2x, 4 A @ 120 VAC), Lockout relay, Auxiliary stop, Optional E-stop relays
- Speed Range: 7–500 SPM standard; 500–2000 SPM optional
- Display: 6-digit LED: crank angle, press speed, stop time, error codes, test values
- Event Counters: Presettable stroke counter (6-digit) for QC and batch control
- Mounting Accessories: Resolver shaft: 0.75 in. keyed, rated 200 lb axial/radial load
- Operator Station: NEMA 12 with palm buttons, top-stop, E-stop, mute, prewired or unwired
- DSV Compatibility: Ross DM2, 0.75 in. or 1.0 in. models
- Weight: 4.50 Lbs
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
