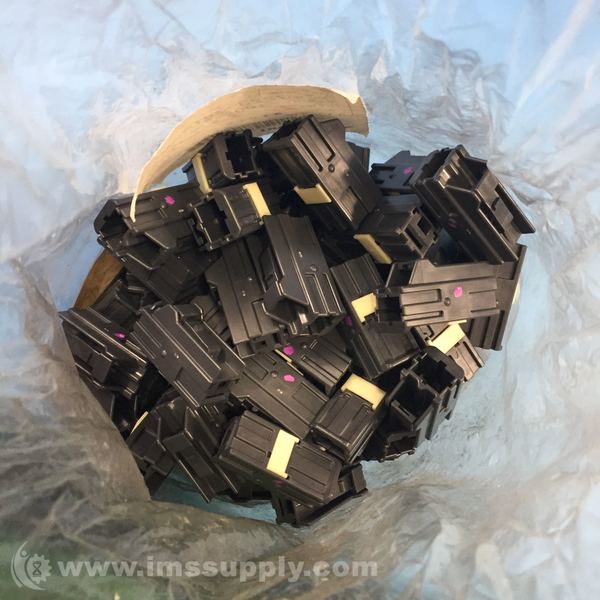

YAZAKI 7223-3615-10 CONNECTOR HOUSING
Quick Overview
Manufactured By: YAZAKI
Manufacturer Part Number: 7223-3615-10
IMS Product Code: 1840313

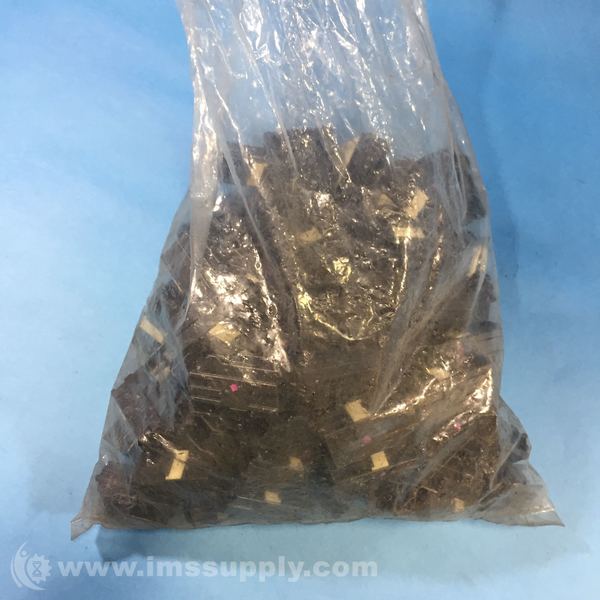

Packaging: Bag of 100
Description:
Yazaki 7223-3615-10 Connector Housing
Female connector housing for wire harness, 1 position, unsealed
Specifications
- Material: HPA
- Number of Positions: 1
- Gender: Female
- Tab Size: 9.50 mm
- Dimensions: 40.90 mm (L) x 18.50 mm (W) x 24.25 mm (H)
- Operating Temperature: -30 to 80 degrees C
- Allowable Current: 63A (Reference)
- Insulation Resistance: 100 Mohm Min. (at 500VDC)
- Withstand Voltage: 1000V AC (1 min.)
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 50 minutes.
