YAZAKI 7382-8135 40P MALE CONNECTOR HOUSING
Quick Overview
Manufactured By: YAZAKI
Manufacturer Part Number: 7382-8135
IMS Product Code: 1810487

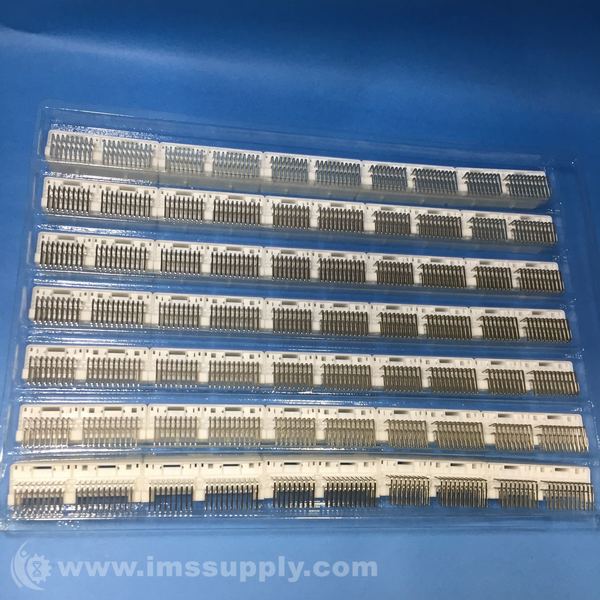

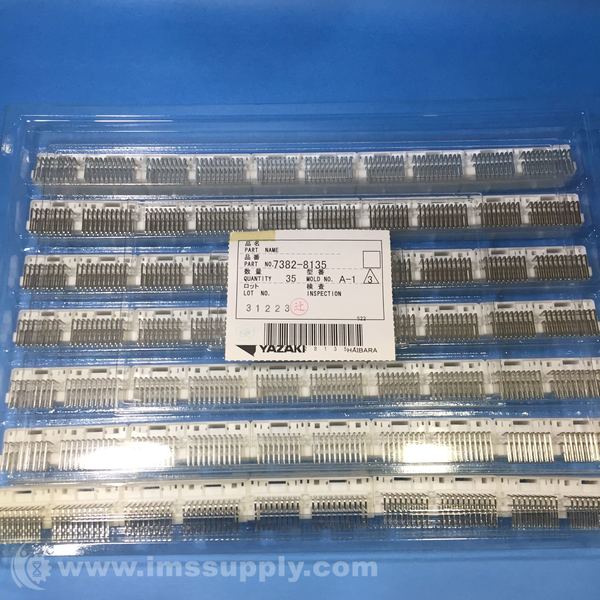

Packaging: Box of 35
Description:

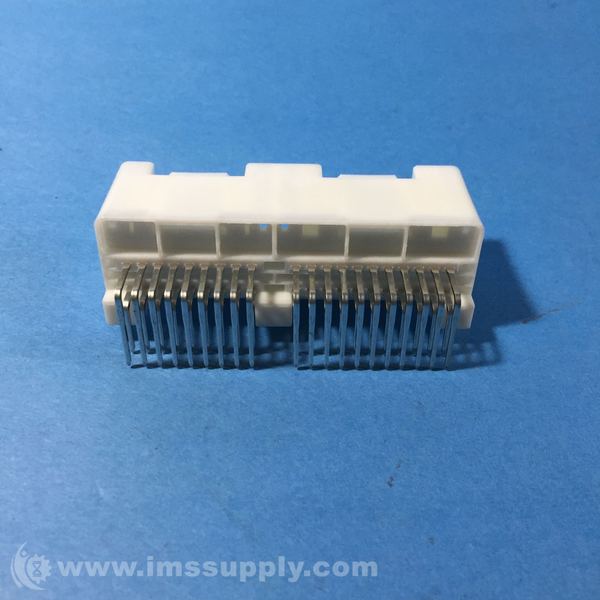

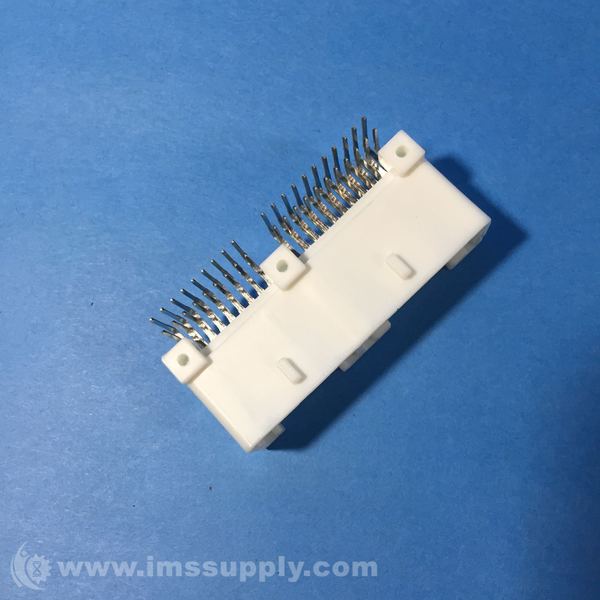

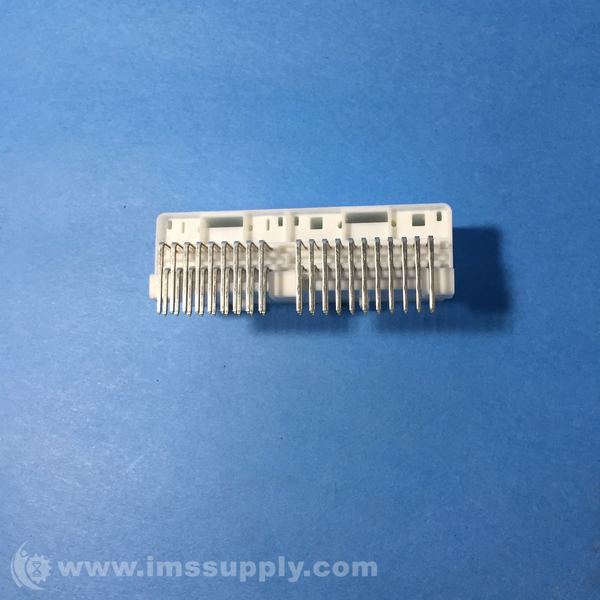

Yazaki 7382-8135 40P Male Connector Housing
Male connector housing with 40 positions, made of PBT material.
Specifications
- Connection Type: Device Connector
- Number of Poles: 40
- Tab size (mm): 1.00
- Materials: PBT
- Size (mm) Length: 28.70
- Size (mm) Width: 61.00
- Size (mm) Height: 23.00
- Color: NATURAL
- Allowable Current(Ref.): 3A(Ref)
- Low-voltage low-current resistance: 5milli ohm Max.(Initial)
- Insulation resistance: 100Megohm Min.(at 500VDC)
- Withstand voltage: 1000V AC (1min.)
- Temperature Range: -30 to 80 degrees C
- PACKAGING: BLISTER
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 5 In Stock
Ships today if ordered in the next 11 hours and 51 minutes.
