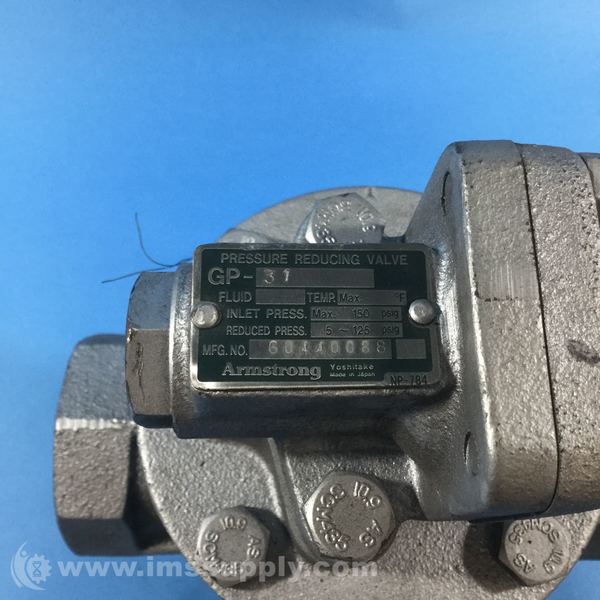

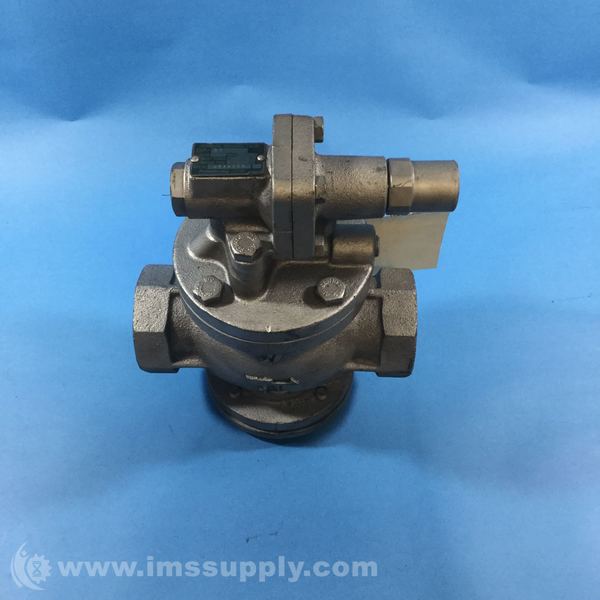

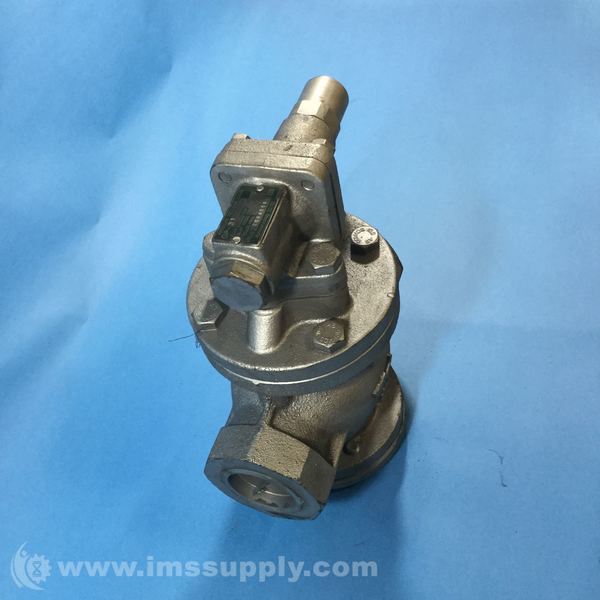

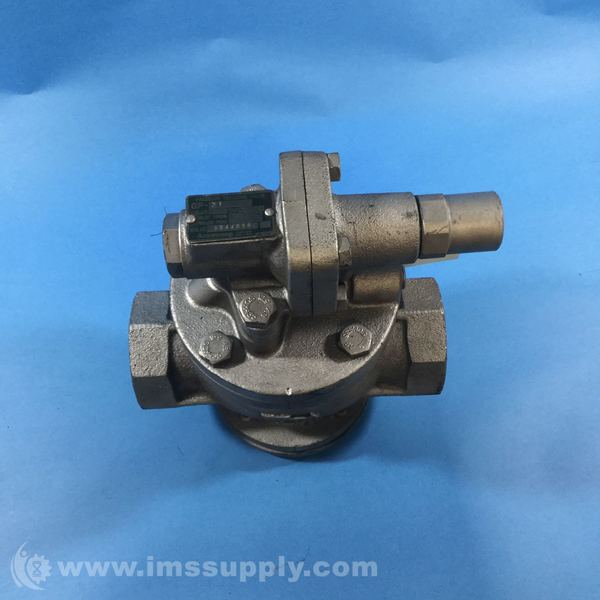

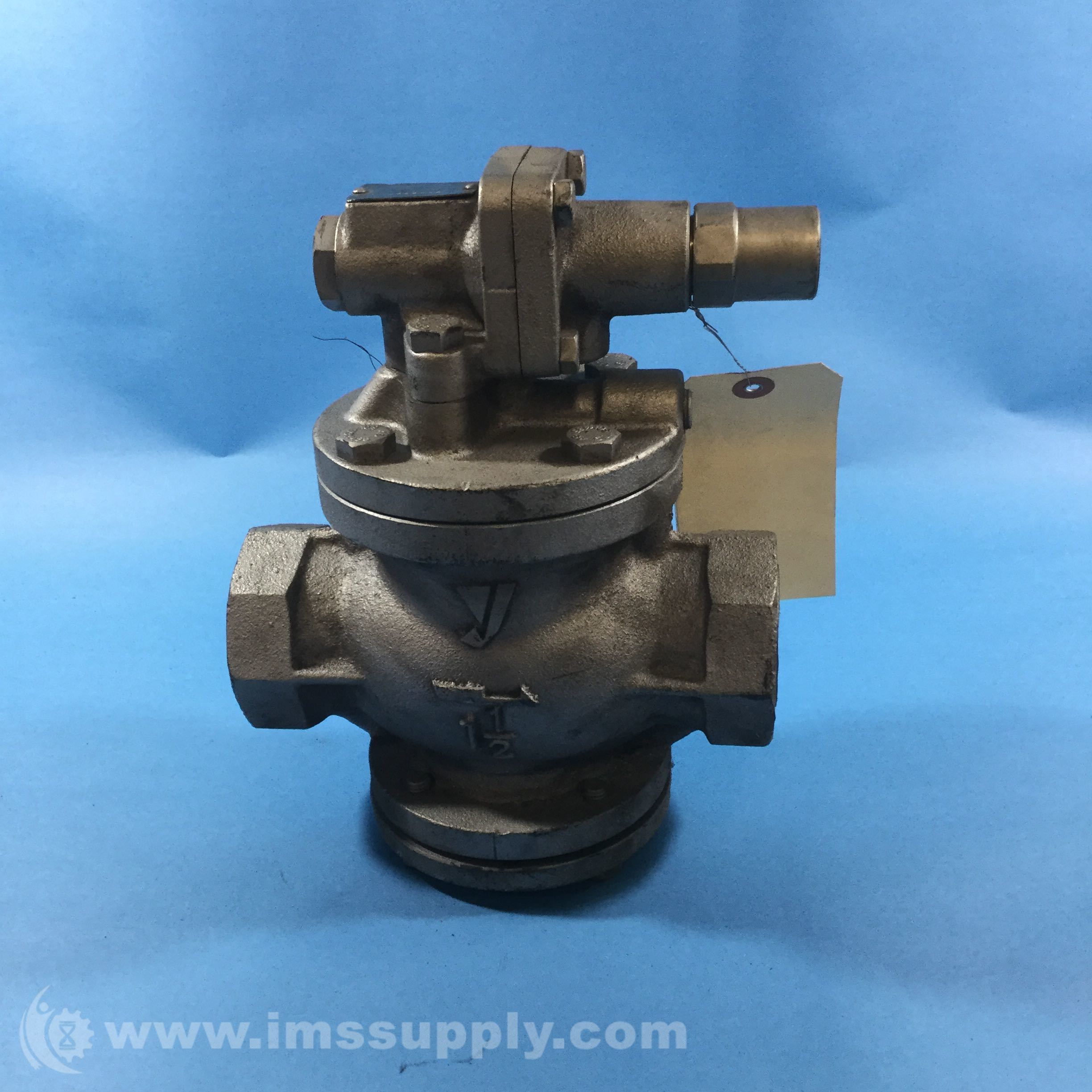

YOSHITAKE INC. GP-31 PRESSURE REDUCING VALVE
Quick Overview
Manufactured By: YOSHITAKE INC.
Manufacturer Part Number: GP-31
IMS Product Code: 1814768
Packaging: Sold Individually
Description:
Yoshitake GP-31 Pressure Reducing Valve (Discontinued)
Specifications:
- Application: Steam
- Inlet pressure: 0.1 - 1.0 MPa
- Reduced pressure: 0.05 - 0.9 MPa
- Connection: JIS Rc screwed
- Adjustable reduced pressure: 90% or less of the inlet pressure(gauge pressure)
- Minimum differential pressure: 0.05 MPa
- Maximum pressure reduction ratio: 20:1
- Maximum temperature: 220 degree(C)
- Inlet Pressure: 150 PSIG
- Reduced Pressure: 5-125 PSIG
