YUKEN DSG-03-3C3-D24-50 DIRECTIONAL VALVE
Quick Overview
Manufactured By: YUKEN
Manufacturer Part Number: DSG-03-3C3-D24-50
IMS Product Code: 2136511
Packaging: Sold Individually
Description:

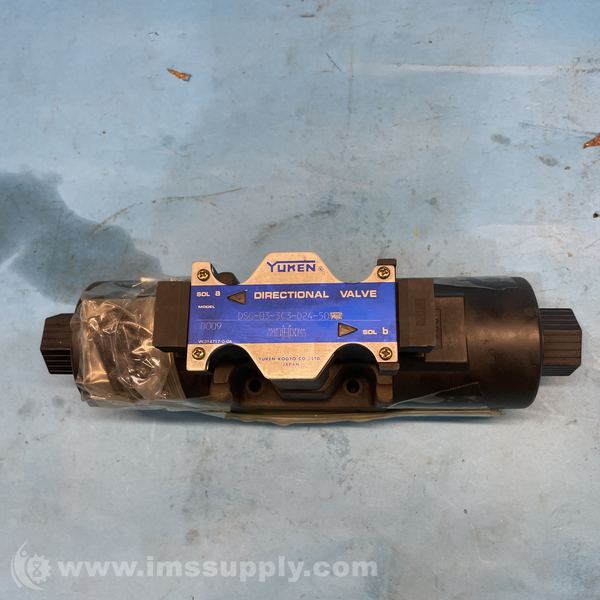

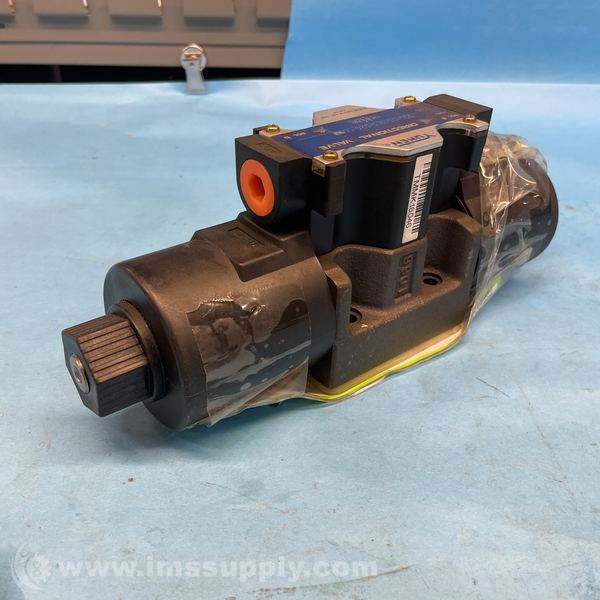

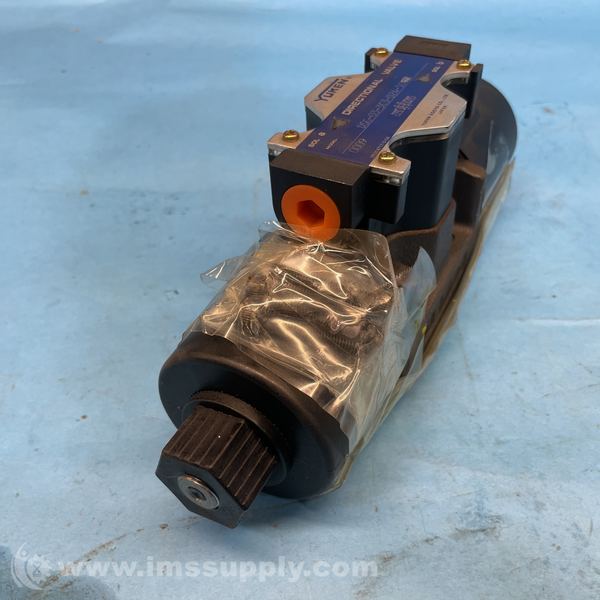

Yuken DSG-03-3C3-D24-50 Directional Valve
Solenoid-operated directional valve for high-pressure hydraulic systems.
Specifications
- Actuation: Solenoid
- Valve Size: D02
- Maximum Flow Rate: 31.7 gpm
- Maximum Operating Pressure: 31.5 psi
- Coil Voltage: 24 V dc
- Spool Type: Open Center (All Ports)
- Spool Spring Arrangement: Spring Centered
- Flow Direction: 4-Way
- Electrical Connector Type: Terminal Box
- Design Number: 50
- T Port Pressure Rating: 2320 psi
- Valve Application: Industrial
- Mounting Type: Subplate
- Max Operating Temperature: 160 F
- Min Operating Temperature: 5 F
- Overall Height: 105.3 mm
- Overall Width: 70 mm
- Overall Length: 282 mm
- Manual Override Type: Manual Override Pin
- Weight: 11.02 lbs
- Country of Origin: Japan
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships on Monday, December 1, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
