ZERO MAX 6-30 FLEX COUPLING
Quick Overview
Manufactured By: ZERO MAX INC
Manufacturer Part Number: 6-30
IMS Product Code: 2133735
Packaging: Sold Individually
Description:

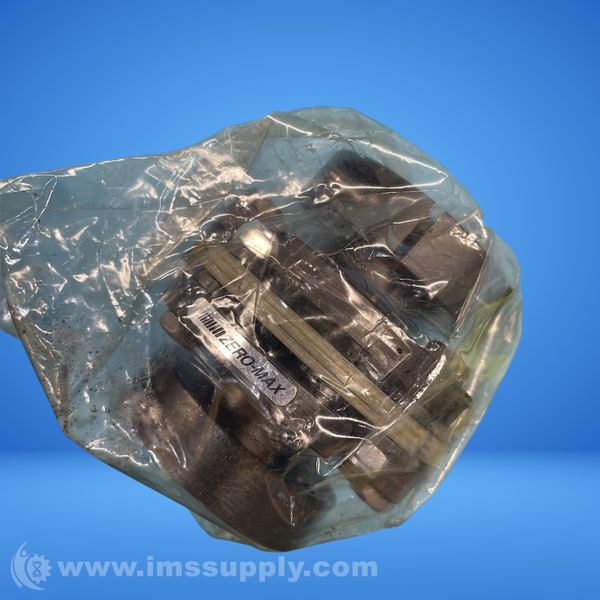

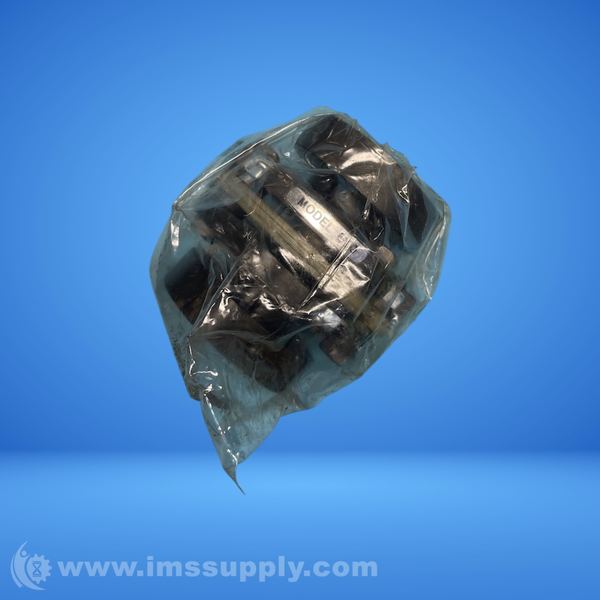

Zero Max 6-30 Flex Coupling
Flexible coupling for mechanical power transmission, manufactured by Zero Max.
Specifications
- Continuous Rated Torque: 800 in-lbs ( 90 Nm)
- Peak Rated Torque: 1,600 in-lbs ( 180 Nm)
- Maximum Bore (Ea, Hub A): 1.000 in (25 mm)
- Maximum Bore (Eb, Hub B): 1.375 in (35 mm)
- Maximum Speed: 9,000 RPM
- Torsional Stiffness: 3,232 in-lbs/degree
- Parallel Misalignment: 0.039 in
- Angular Misalignment: 3 degrees
- Axial Misalignment: 0.100 in
- Weight at Max Bore (A Hub): 2.50 lbs ( 1.13 kg)
- Weight at Max Bore (B Hub): 3.00 lbs ( 1.36 kg)
- Inertia at Max Bore (A Hub): 2.49 lb-in²
- Inertia at Max Bore (B Hub): 3.49 lb-in²
- Outside Diameter (A): 3.00 in ( 76.2 mm)
- Overall Length (L): 3.92 in ( 99.6 mm)
- Hub Length (B): 1.25 in ( 31.8 mm)
- Distance Between Shaft Ends (C): 1.42 in ( 36.1 mm)
- Inside Diameter of Disc-Pack (H): 1.21 in ( 31 mm)
- Clamp Collar Diameter (F): 2.92 in ( 74 mm)
- Clamp Collar Width (D): 0.709 in ( 18 mm)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
