ZIMMER MBPS1501AS1 PNEUMATIC CLAMPING ELEMENT
Quick Overview
Manufactured By: ZIMMER
Manufacturer Part Number: MBPS1501AS1
IMS Product Code: 2132055
Packaging: Sold Individually
Description:

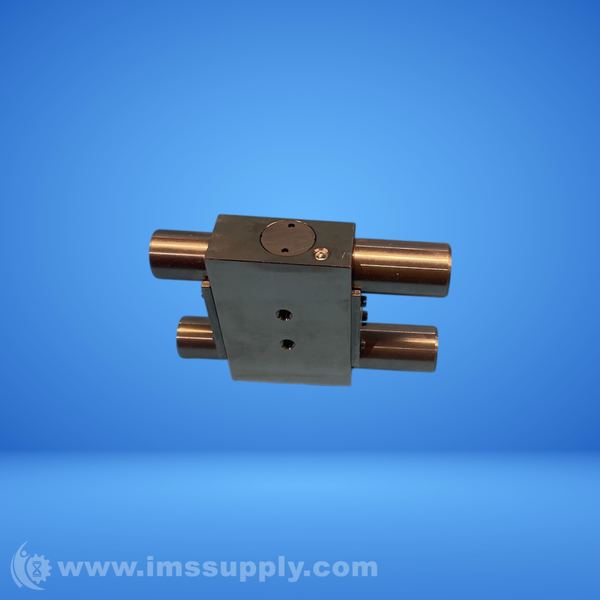

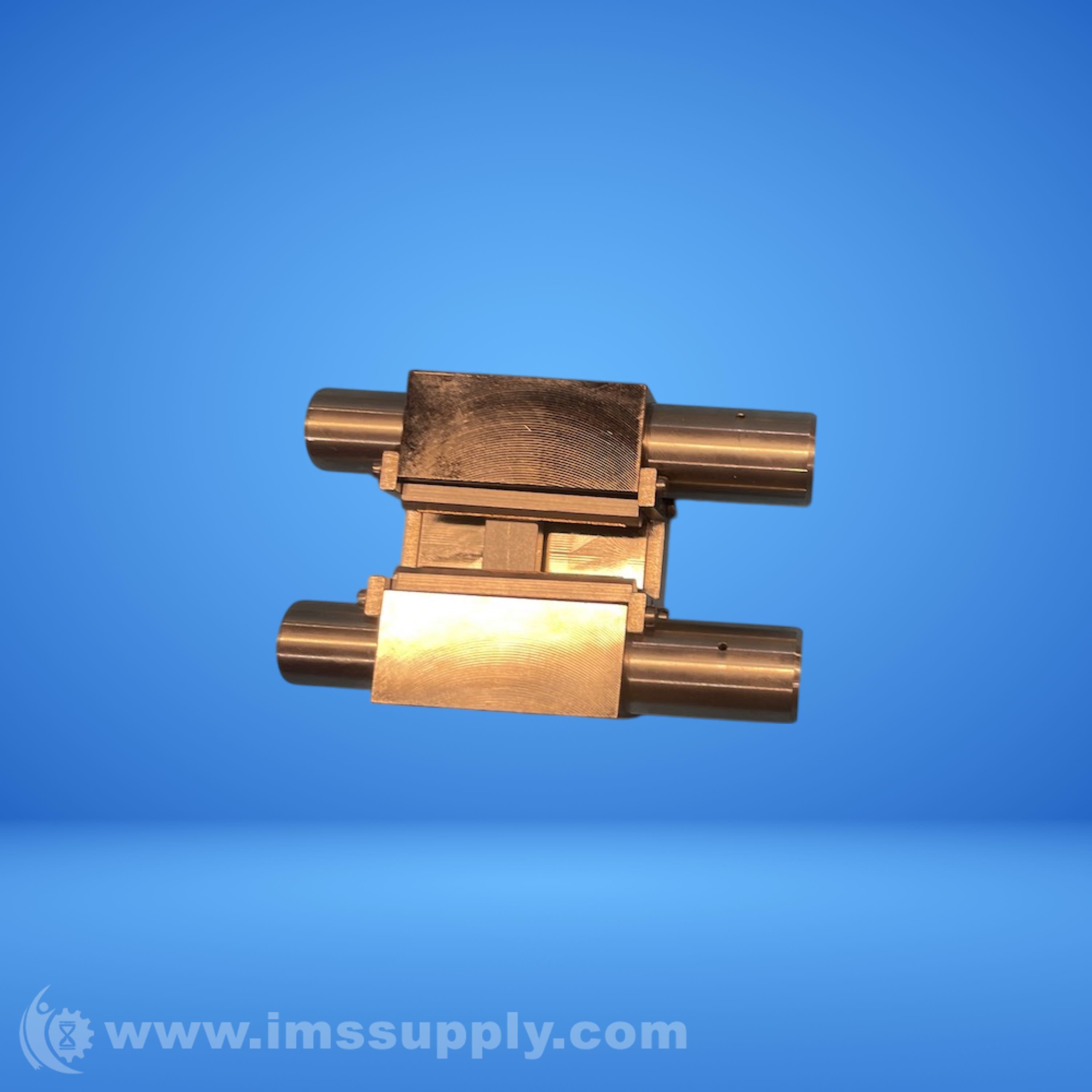

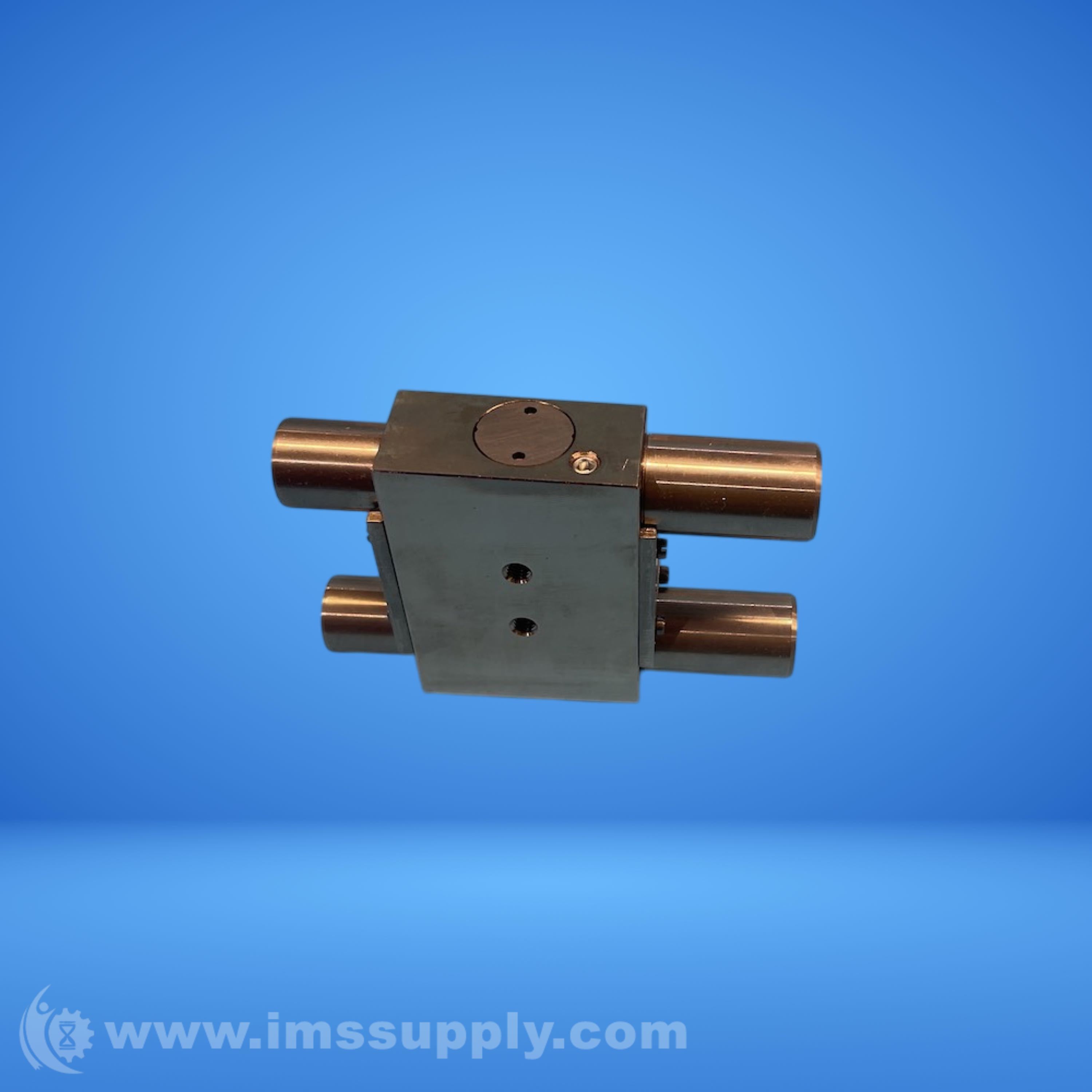

ZIMMER MBPS1501AS1 Pneumatic Clamping Element
Pneumatic clamping and braking element, part of ZIMMER's MBPS series, designed for size 15 linear rails. Spring-loaded with pneumatic pressure release.
Specifications
- Series: MBPS
- Rail Size: 15
- Holding Force: 800 N
- Operating Pressure: 4.5 - 6.5 bar
- Operating Temperature: -10 to 70 degrees C
- Air Volume per Cycle: 10 cm³
- Weight: 0.42 kg
- Material: see rail manufacturer
- PWIS-free: Yes
- REACH compliant: Yes
- RoHS Compliant: Yes

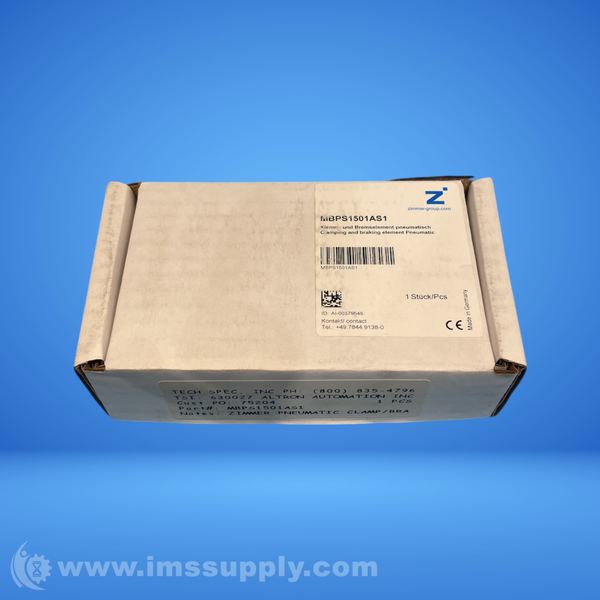

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 12 hours and 23 minutes.
