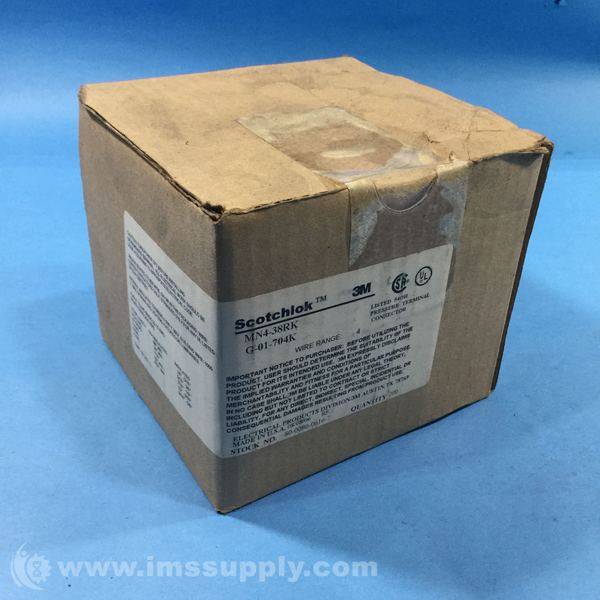

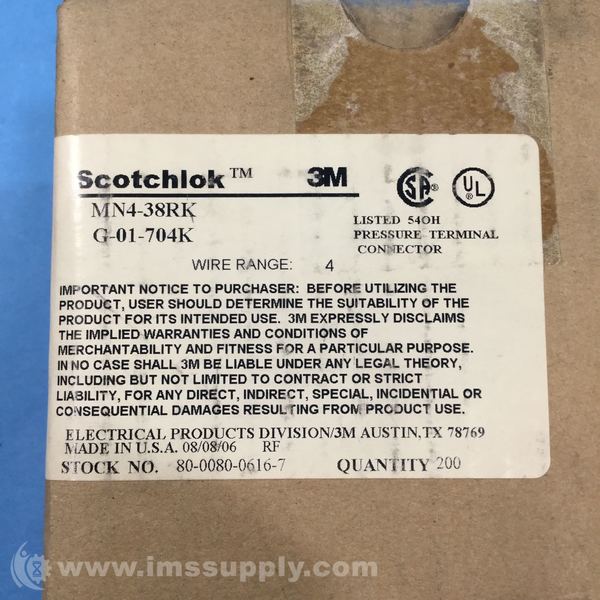

3M MN4-38RK RING TONGUE TERMINAL
Quick Overview
Manufactured By: 3M
Manufacturer Part Number: MN4-38RK
IMS Product Code: 1837909
Packaging: Box of 200
Sold Individually
Box of 200
Description:
3M MN4-38RK Ring Tongue Terminal
Nylon insulated, brazed seam ring tongue terminal with 3/8 inch stud size and 4 AWG wire size.
Specifications
- color: Yellow
- max conductor size: 4 AWG
- stud size: 3/8 Inch
- insulation type: Nylon Insulated
- barrel inside diameter: 0.28 Inch
- barrel length: 0.47 Inch
- barrel style: Brazed
- clearance: 0.53 Inch
- dimension e: 1.41 Inch
- length: 0.74 Inch
- max insulation outer diameter: 0.515 Inch
- terminal style: Standard
- terminal type: Ring
- thickness: 0.075 Inch
- width: 0.68 Inch
- contact finish: Tin
- contact material: Copper
- insulation color: Yellow
- insulation material: Nylon
- max temperature: 221 degrees F
- max voltage: 1000 V
- min operating temperature: -40 degrees F
- overall length: 0.74 in
- tongue width: 0.68 in
- seam style: Brazed
- temperature range: -40 to 221 degrees F
- voltage rating: 600V for building wire, 1000V for signs, fixtures or luminaires
- certifications: UL Listed, CSA Certified
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships today if ordered in the next 3 hours and 27 minutes.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 3 hours and 27 minutes.
