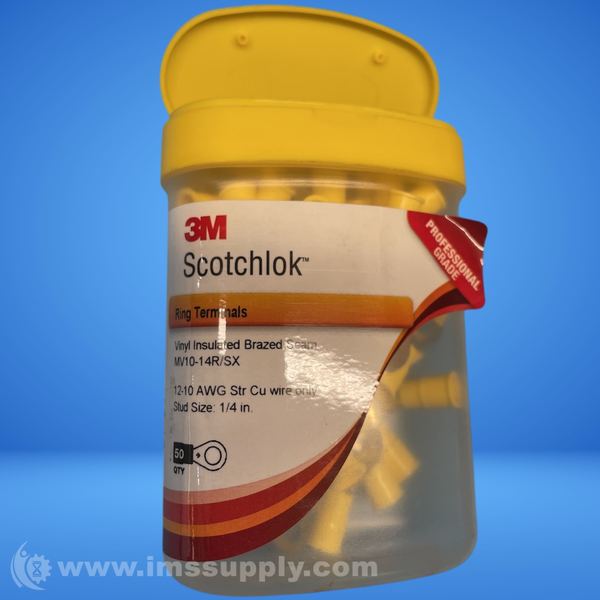

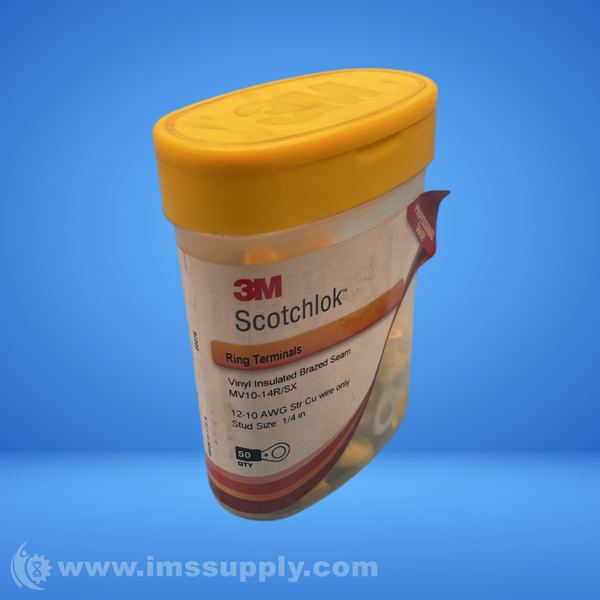

3M MV10-14R/SX RING VINYL INSULATED TERMINAL
Quick Overview
Manufactured By: 3M
Manufacturer Part Number: MV10-14R/SX
IMS Product Code: 2178328
Packaging: Box of 50
Sold Individually
Box of 50
Description:
3M MV10-14R/SX Ring Vinyl Insulated Terminal
Vinyl insulated ring terminal, copper conductor, tin-plated, for 12-10 AWG wire size, with 1/4 inch stud size.
Specifications
- Avg Length (L): 1.26 Inch
- Barrel Inside Diameter: 0.135 Inch
- Barrel Style: Brazed Seam
- Brazed Wire Size: 12-10 AWG
- Copper Conductor: Tin-Plated
- CSA File Number: LR22190
- Clearance (C): 0.44 Inch
- Color: Yellow
- Dimension E: 0.99 Inch
- Insulation Material: Vinyl
- Maximum Insulation Outer Diameter: 0.250 Inch
- Stud Size: 1/4 Inch
- Tin-Plated Copper Conductor: For Wire Size 12-10 AWG
- Terminal Style: Standard Ring Terminal
- Thickness (T): 0.040 Inch
- UL File Number: E23438
- Width (W): 0.53 Inch
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 4 In Stock
