ABB 2CDS272334R0457 MINIATURE CIRCUIT BREAKER
Quick Overview
Manufactured By: ABB
Manufacturer Part Number: 2CDS272334R0457
IMS Product Code: 2145675
Packaging: Sold Individually
Description:

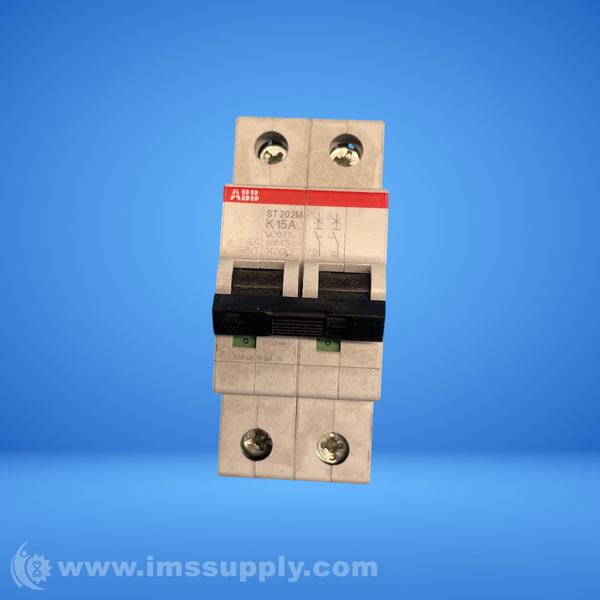

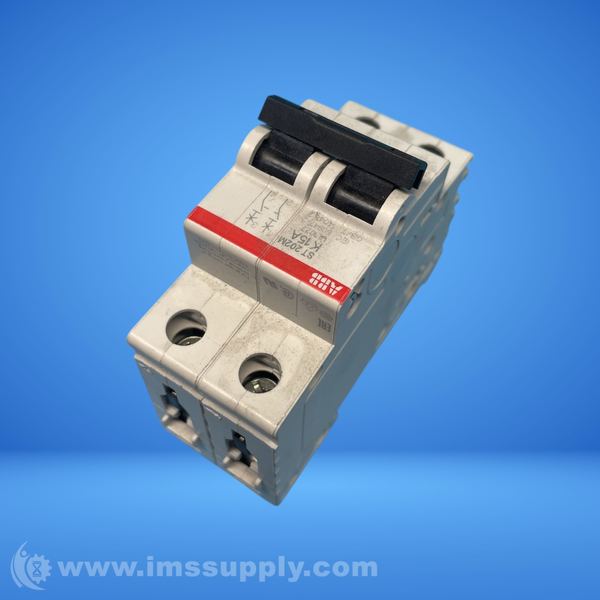

ABB 2CDS272334R0457 Miniature Circuit Breaker
2-pole miniature circuit breaker with K tripping characteristic, 15A rated current, 15kA short-circuit breaking capacity at 400V AC.
Specifications
- Extended Product Type: ST202M-K15
- Number of Poles: 2
- Tripping Characteristic: K
- Rated Current: 15 A
- Rated Ultimate Short-Circuit Breaking Capacity (Icu): (125 V DC) 15 kA, (400 V AC) 15 kA
- Rated Service Short-Circuit Breaking Capacity (Ics): (400 V AC) 11.2 kA
- Terminal Type: Double Clamp
- Product Net Width: 35 mm
- Product Net Depth / Length: 69 mm
- Product Net Height: 88 mm
- Product Net Weight: 0.23 kg
- Mounting Type: DIN Rail Mount
- Voltage Rating (AC): 480 V
- Rated Insulation Voltage: 440 V
- IP Rating: IP20/IP40
- Tightening Torque - Screw-Type Max.: 2.8 Nm
