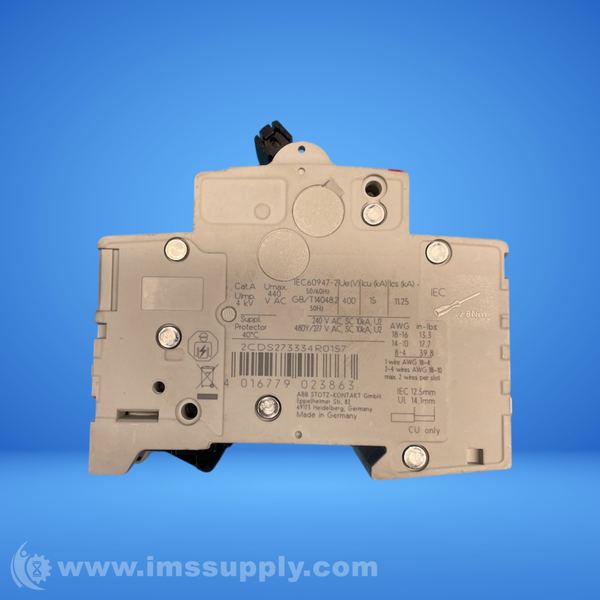

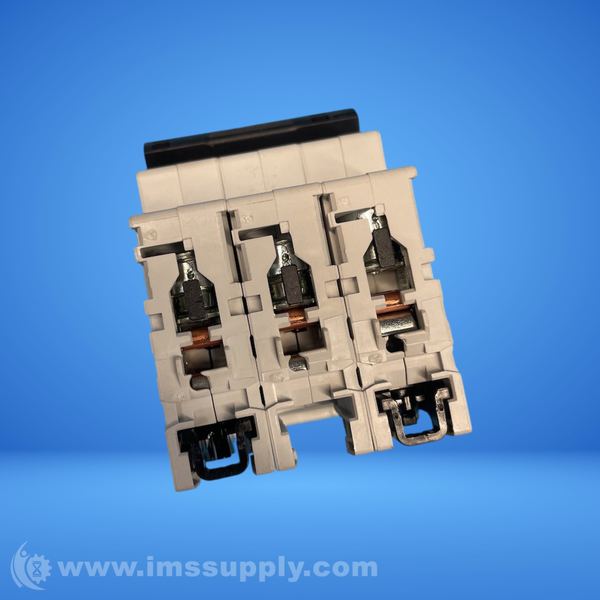

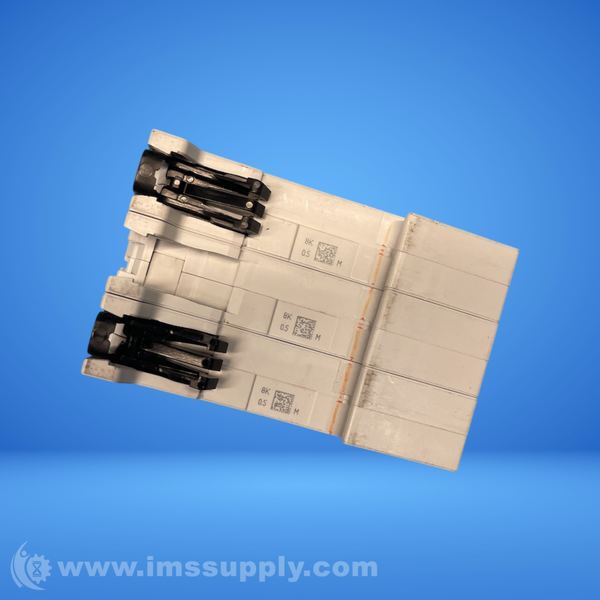

ABB 2CDS273334R0157 MINIATURE CIRCUIT BREAKER
Quick Overview
Manufactured By: ABB
Manufacturer Part Number: 2CDS273334R0157
IMS Product Code: 2145693
Packaging: Sold Individually
Description:
ABB 2CDS273334R0157 Miniature Circuit Breaker
3-pole miniature circuit breaker with K tripping characteristic, 0.5A rated current, and 15kA breaking capacity at 400V AC.
Specifications
- Type: Miniature Circuit Breaker
- Series: S200
- Number of Poles: 3
- Tripping Characteristic: K
- Rated Current: 0.5 A
- Rated Voltage: 230/400V AC
- Breaking Capacity: 6kA
- Standard: IEC/EN 60898-1, CSA 22.2 No. 235, IEC/EN 60947-2, UL 1077
- Connection Type: Screw, Double Clamp
- Mounting Type: DIN Rail
- Degree of Protection: IP20
- Operating Temperature: -40°C to +85°C
- Rated Operational Voltage: 400 V
- Rated Insulation Voltage (Ui): 440 V
- Rated Impulse Withstand Voltage (Uimp): 4 kV
- Rated Ultimate Short-Circuit Breaking Capacity (Icu): 15 kA
- Rated Service Short-Circuit Breaking Capacity (Ics): 11.2 kA
- Rated Frequency (f): 50 ... 60 Hz
- Energy Limiting Class: 3
- Product Net Width: 52.5 mm
- Product Net Height: 88 mm
- Product Net Depth / Length: 69 mm
- Product Net Weight: 0.345 kg
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 1 hours and 49 minutes.
