ABB 2CDS273334R0457 MINIATURE CIRCUIT BREAKER
Quick Overview
Manufactured By: ABB
Manufacturer Part Number: 2CDS273334R0457
IMS Product Code: 2145719
Packaging: Sold Individually
Description:

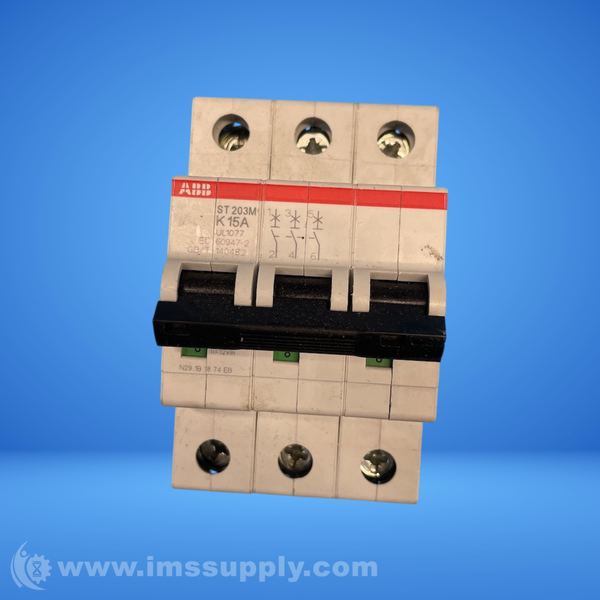

ABB 2CDS273334R0457 Miniature Circuit Breaker
3-Pole Miniature Circuit Breaker with K Tripping Characteristic, 15A Rated Current, 400V Rated Operational Voltage
Specifications
- Tripping Characteristic: K
- Rated Operational Voltage acc. to IEC 60898-1: 400 V
- Rated Operational Voltage acc. to IEC 60947-2: 400 V
- Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1: 440 V
- Rated Impulse Withstand Voltage (Uimp): 4 kV
- Input Voltage Type: AC
- Rated Current (In): 15 A
- Rated Ultimate Short-Circuit Breaking Capacity (Icu) (400 V AC): 15 kA
- Rated Service Short-Circuit Breaking Capacity (Ics) (400 V AC): 11.2 kA
- Rated Frequency (f): 50 / 60 Hz
- Power Loss: 6.2 W
- Number of Protected Poles: 3
- Number of Poles: 3
- Overvoltage category: III
- Connecting Capacity Flexible: 25 ... 25 mm˛
- Connecting Capacity Rigid: 35 ... 35 mm˛
- Terminal Type: Double Clamp
- Width in Number of Modular Spacings: 3
- Product Net Width: 52.5 mm
- Product Net Height: 88 mm
- Product Net Depth / Length: 69 mm
- Product Net Weight: 0.345 kg
- Mounting Style: DIN Rail
- Material: ABS/Plastic
- Standards: CSA 22.2 No. 235, IEC/EN 60947-2, UL 1077
- RoHS Status: Following EU Directive 2011/65/EU
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 1 hours and 49 minutes.
