ABB CE4T-10R-02 EMERGENCY STOP BUTTON
Quick Overview
Manufactured By: ABB
Manufacturer Part Number: CE4T-10R-02
IMS Product Code: 1942642
Packaging: Sold Individually
Description:

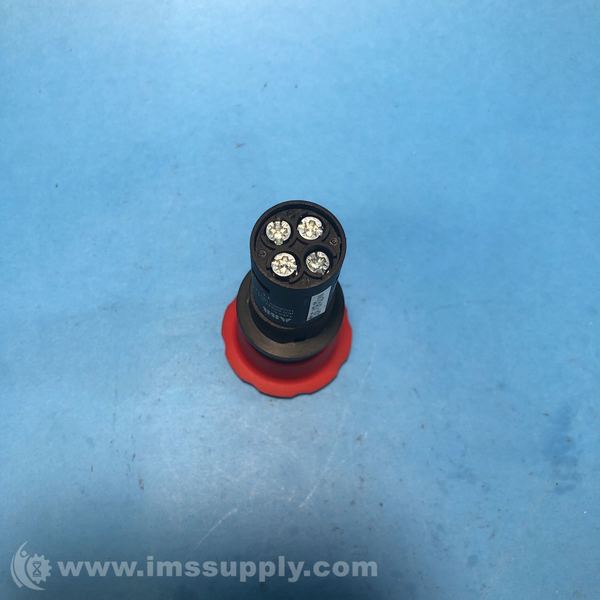

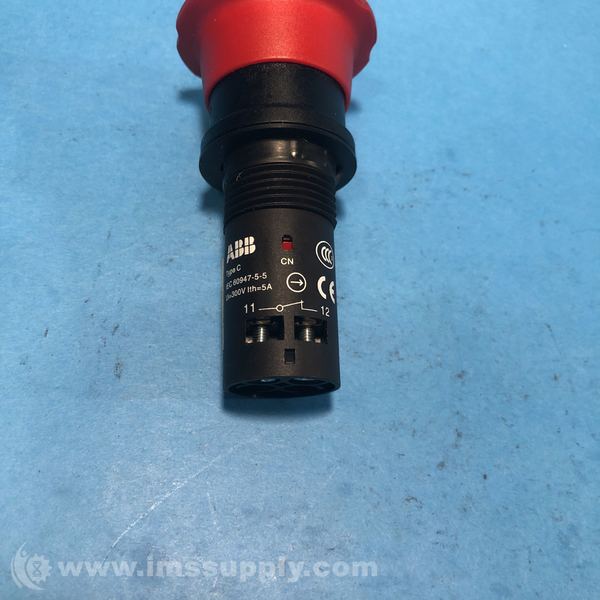

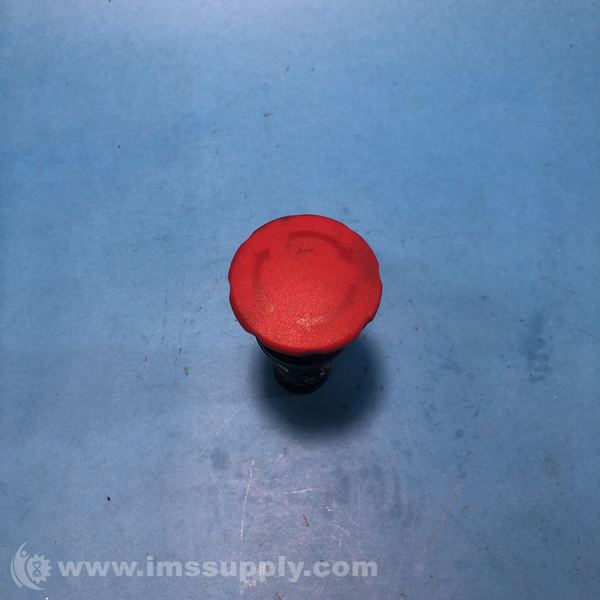

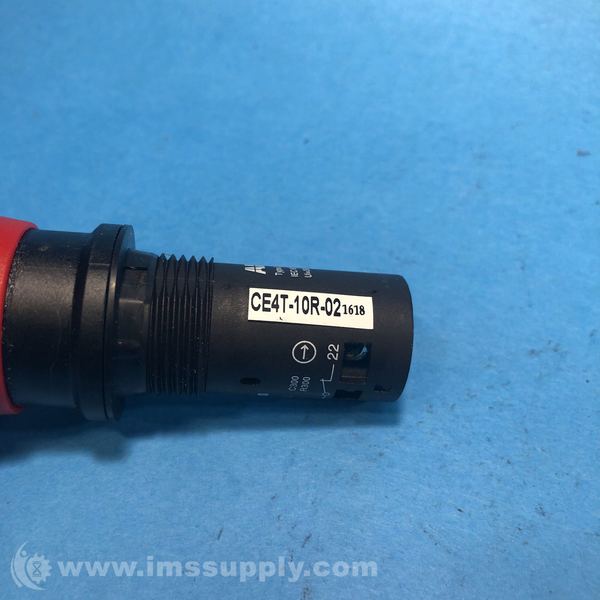

ABB CE4T-10R-02 Emergency Stop Button
Compact emergency stop button with mushroom head, twist release, non-illuminated, 2NC contacts.
Specifications
- Actuator Type: Mushroom 40 mm
- Ambient Air Temperature: Operation -25 ... +70 degrees C, Storage -30 ... +85 degrees C
- Block: 2NC
- Color: Red
- Connection Type: Screw Clamp
- Degree of Protection: Front IP66, Front IP67, Front IP69K, Terminals IP20
- Function: Maintained
- Illumination: Non-illuminated
- IP/NEMA Rating: NEMA 1, NEMA 3R, NEMA 4X, NEMA 12, NEMA 13, NEMA 4
- Mechanical Durability: 0.5 million
- Number of Auxiliary Contacts NC: 2
- Rated Frequency (f): 50 / 60 Hz
- Rated Operational Current AC-15 (Ie): (240 V) 1 A
- Rated Operational Current DC-13 (Ie): (24 V) 0.3 A, (125 V) 0.2 A
- Rated Operational Voltage: 24 ... 300 V
- Sub-Function: Twist release
- Type: Non-Illuminated, Maintained
