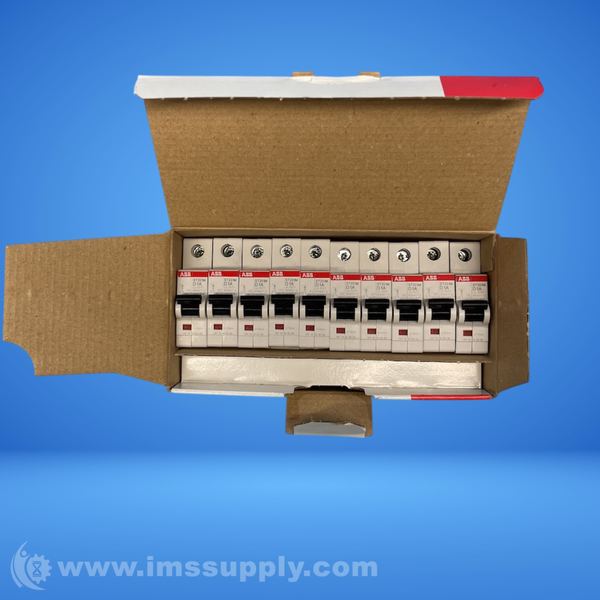

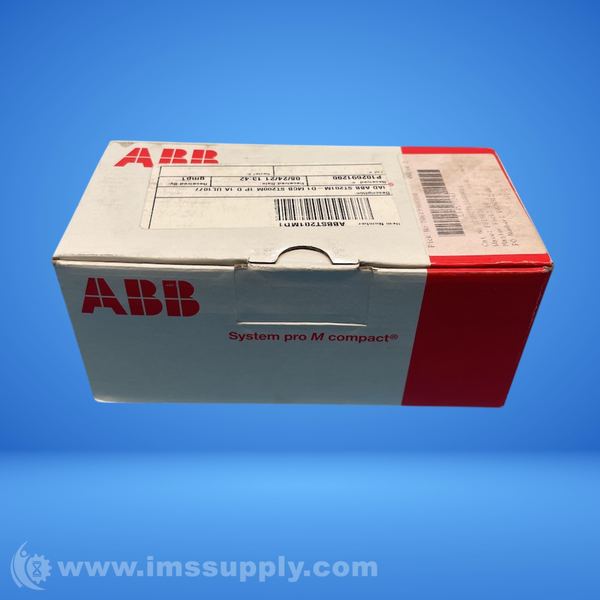

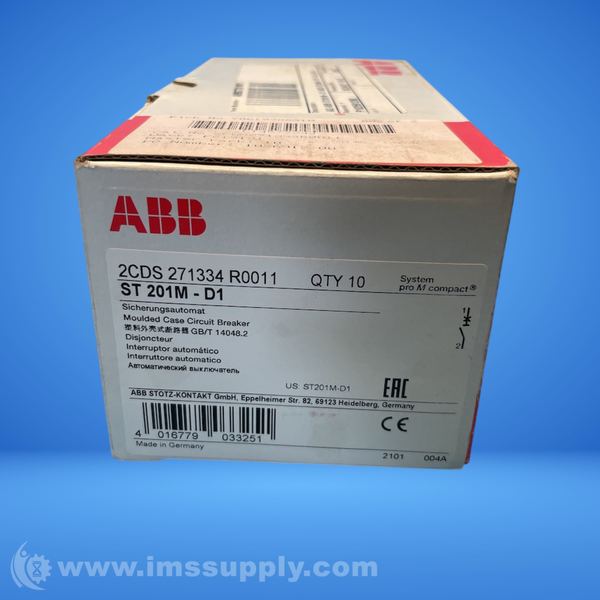

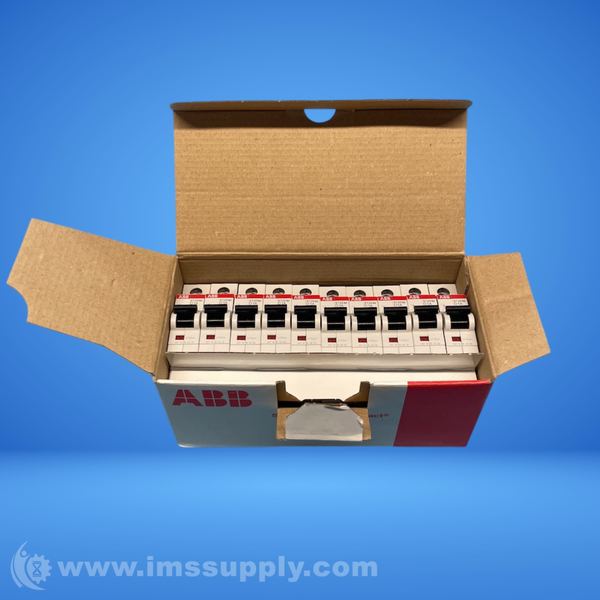

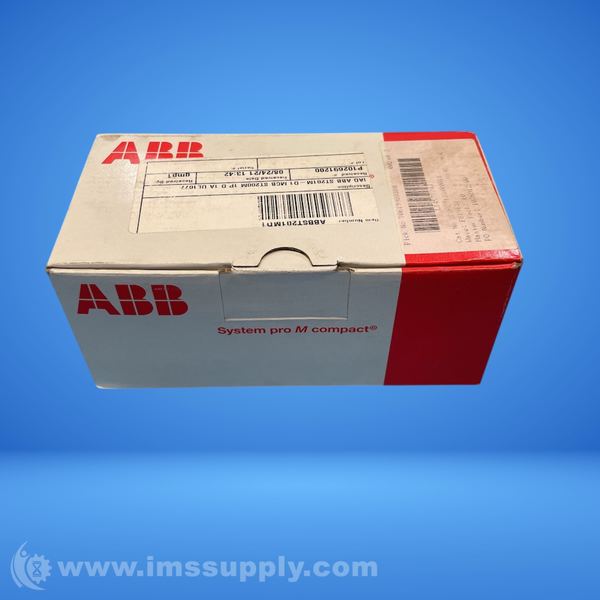

ABB ST201M-D1 MINIATURE CIRCUIT BREAKER
Quick Overview
Manufactured By: ABB
Manufacturer Part Number: ST201M-D1
IMS Product Code: 2178832
Packaging: Box of 10
Description:
ABB ST201M-D1 Miniature Circuit Breaker
Miniature circuit breaker, high performance, D-curve, 1-pole, thermal-magnetic trip, DIN rail mounting.
Specifications
- Series: ST200M
- Voltage Rating: 230 V AC / 125 V DC
- Current Rating: 1 A
- Frequency: 50/60 Hz
- Interrupt Rating: 10 kA at 277 V AC/60 V DC
- Trip Type: Thermal Magnetic
- Number of Poles: 1
- Connection Type: Double Clamp/Screw Terminal
- Wire Size: 18 to 4 AWG
- Insulation Group: Group II
- Enclosure Rating: IP20/IP40
- Mounting Type: 35 mm DIN Rail Mounting
- Operating Temperature: -25 to 55 degrees C
- Dimensions: 69 mm L x 17.5 mm W x 88 mm H
- Trip Curve: D
- Net Weight: 0.26 lbs
