ABB SU203MC40 3-POLE CIRCUIT BREAKER
Quick Overview
Manufactured By: ABB
Manufacturer Part Number: SU203MC40A
IMS Product Code: 2161188
Packaging: Sold Individually
Description:

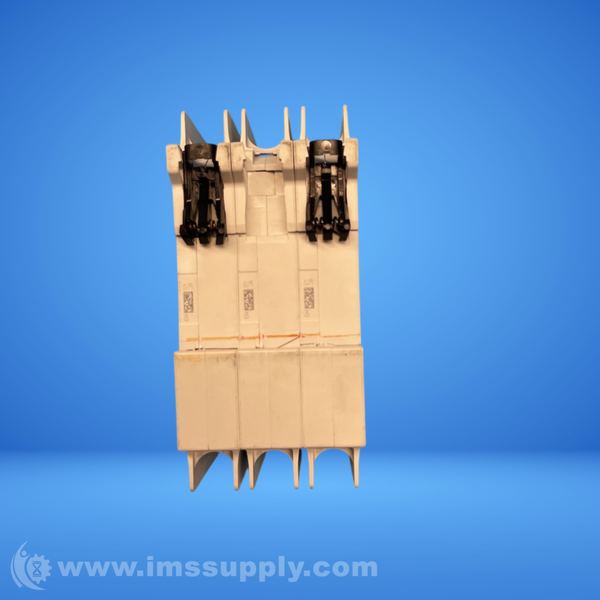

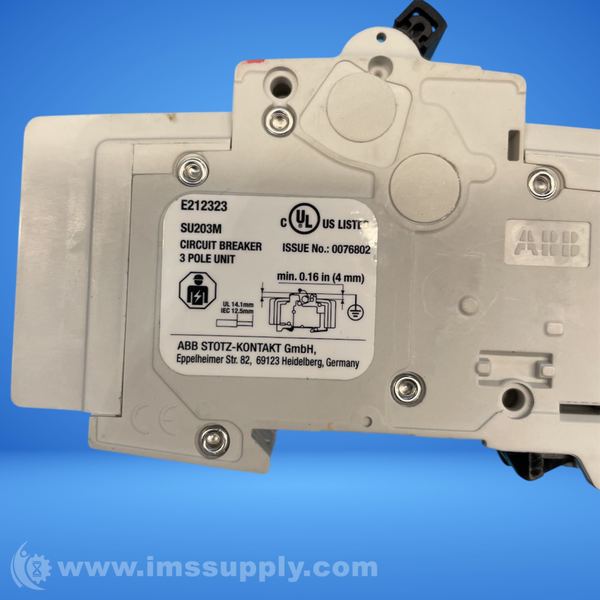

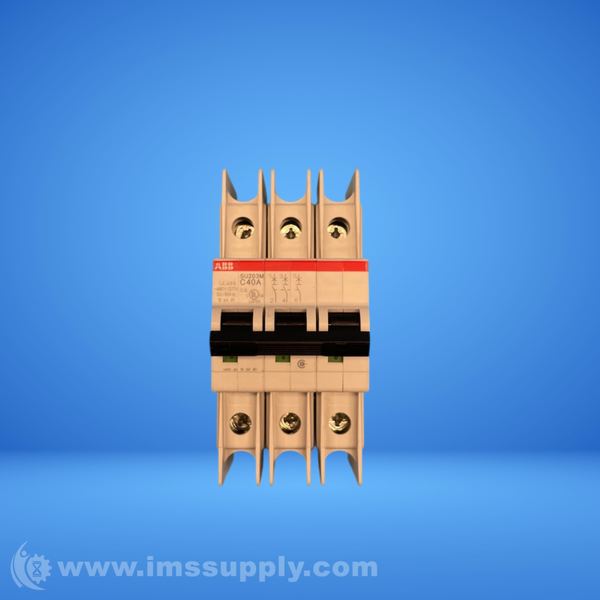

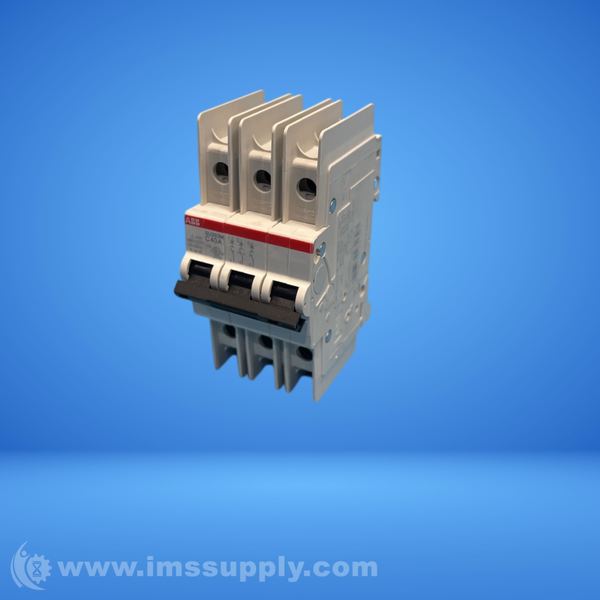

ABB SU203MC40 3-Pole Circuit Breaker
3-pole miniature circuit breaker with C curve, 40A rated current, 10kA breaking capacity, DIN rail mounting.
Specifications
- Ambient Temperature: -25 to 55 deg C Operation, -40 to 70 deg C Storage
- Application: Commercial and Industrial
- Busbar Cross Section: 10 sq-mm Top, 10 sq-mm Bottom
- Cable Cross Section: 35 sq-mm Top, 35 sq-mm Bottom
- Curve Type: C
- Degree of Pollution: IP3
- Degree of Protection: IP20
- Depth: 69 mm
- Electrical Durability: 10000 Cycles
- Height: 88 mm
- Housing Colour: RAL 7035 Grey
- Housing Material: Insulation Group II, RAL 7035
- Impulse Voltage: 4 kV
- Mounting Type: DIN Rail
- Number of Poles: 3
- Pole Width: 17.5 mm
- Power Loss: 4.8 W
- Rated Current: 40 A
- Rated Frequency: 50/60 Hz
- Rated Impulse Withstand Voltage: 4 kV
- Rated Insulation Voltage: 440 V
- Rated Short Circuit Current: 10 kA
- Rated Voltage: 400/415 VAC
- Standards and Approvals: AS/NZS 60898-1, AS/NZS 60947-2, UL 1077
- Terminal Type: Screw Clamp
- Tightening Torque: 2.8 N-m
- Trip Curve: C Curve
- Width: 52.5 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
