AIRTAC GAFR300C10S FILTER REGULATOR
Quick Overview
Manufactured By: AIRTAC
Manufacturer Part Number: GAFR300C10S
IMS Product Code: 2159423
Packaging: Sold Individually
Description:

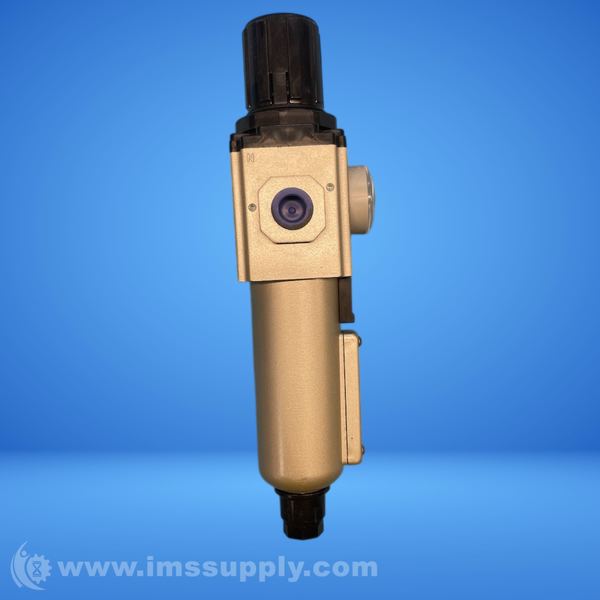

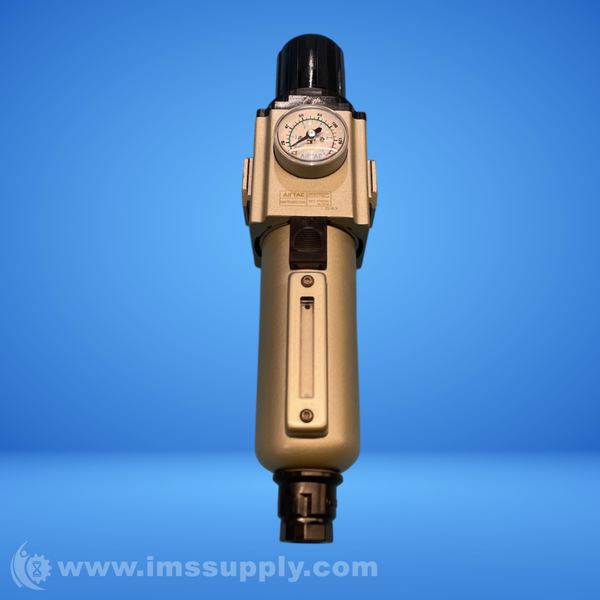

Airtac GAFR300C10S Filter Regulator
Integrated air preparation unit combining precision filtration and pressure stabilization. Features a shatter-resistant polycarbonate bowl with sediment visibility and twist-lock bowl design for maintenance. The dual-stage design first removes particulates then regulates pressure, with �2% regulation accuracy. Includes tamper-proof adjustment knob and anti-vibration gauge.
Specifications
- Series: GA300 series pressure regulating filter
- Cup body material: metal cup
- Nozzle caliber: 3/8"
- Drainage mode: differential pressure + manual drainage
- Type: Combination filter regulator (F.R.L unit)
- Port size: PT3/8 (G1/2 optional)
- Filtration grade: 5�m (with auto-drain)
- Pressure regulation range: 0.05�0.9 MPa
- Max flow rate: 3000 L/min (Cv=3.0)
- Operating temperature: 5? to 60?
- Housing material: Die-cast aluminum (anodized)
- Filter bowl: Polycarbonate (transparent)
- Weight: 0.82 kg
- Dimensions: 124mm(H) � 78mm(W) � 116mm(D)

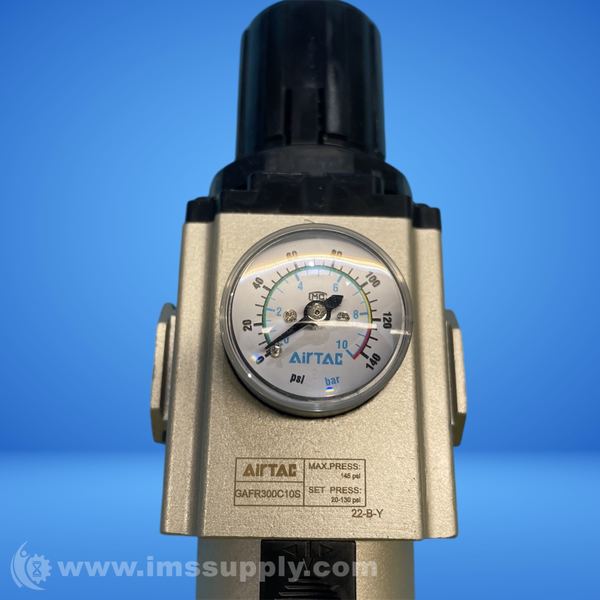

- Pressure gauge: Built-in 40mm dial (0-1.0 MPa scale)
- Drain type: Semi-automatic float drain
- Thread compatibility: BSPP/NPT adapters available
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
