ALLEN BRADLEY 1203-GD1 REMOTE I/O MODULE
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 1203-GD1
IMS Product Code: 142832
Packaging: Sold Individually
Description:

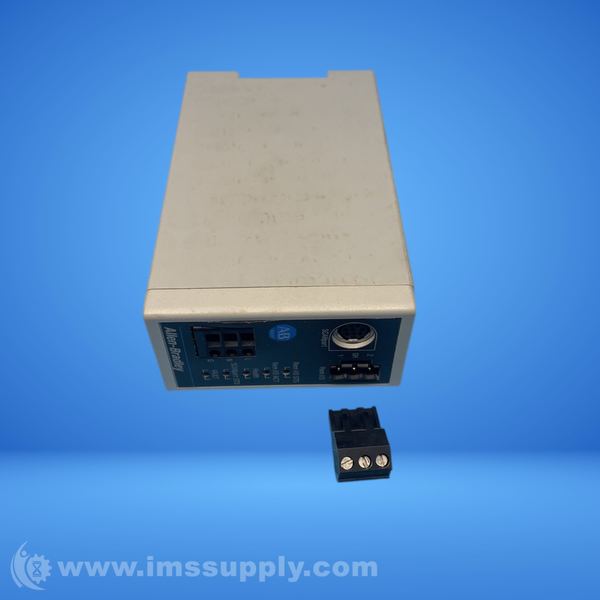

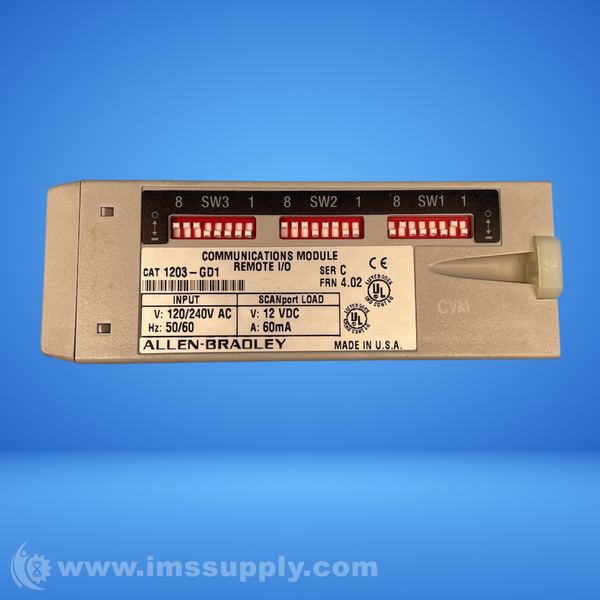

Allen Bradley 1203-GD1 Remote I/O Module
The Allen-Bradley 1203-GD1 is a communication module designed to connect SCANport devices to Remote I/O networks. It operates with an input voltage range of 85 to 264V AC.
Specifications
- Input Voltage: 85 to 264 Volts AC, 1-Phase
- Input Current: 35 milliamps maximum
- Input Frequency: 45 to 63 Hertz
- SCANport Load: 60 milliamps DC
- Operating Temperature: 0 to 50 degrees Celsius
- Storage Temperature: -40 to 85 degrees Celsius
- Relative Humidity: 0 to 95% (non-condensing)
- Dimensions: 76 mm (3.0 in) x 45 mm (1.8 in) x 123 mm (4.8 in)
- Weight: 2.00 lbs (0.91 kg)
- Baud Rates: 57.6 KBaud, 115.2 KBaud, 230.4 KBaud
- NEMA Rating: Type 1
- DIN Rail Standard: 35 x 7.5 millimeters (1.38 x 0.30 inches)
