ALLEN BRADLEY 1492-J4 TERMINAL BLOCK
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 1492-J4
IMS Product Code: 1937070
Variation: Unspecified
Unspecified
Series: A
Color: Green
Color: Yellow
Packaging: Set of 8
Sold Individually
Set of 2
Set of 4
Set of 5
Set of 6
Set of 7
Set of 8
Set of 10
Box of 100
Description:

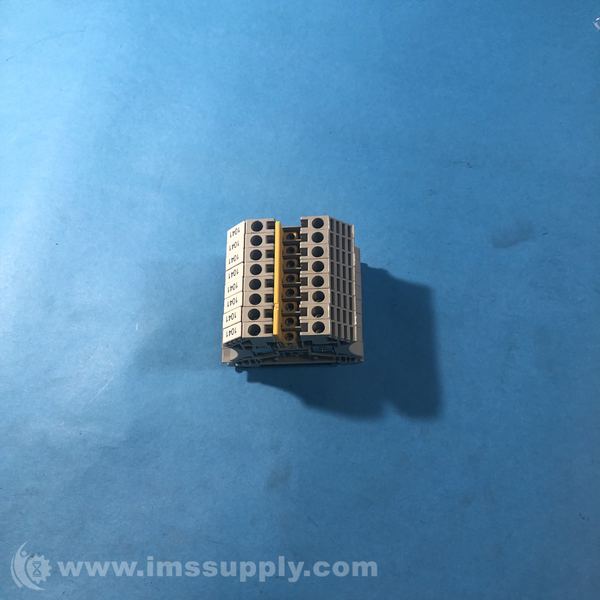

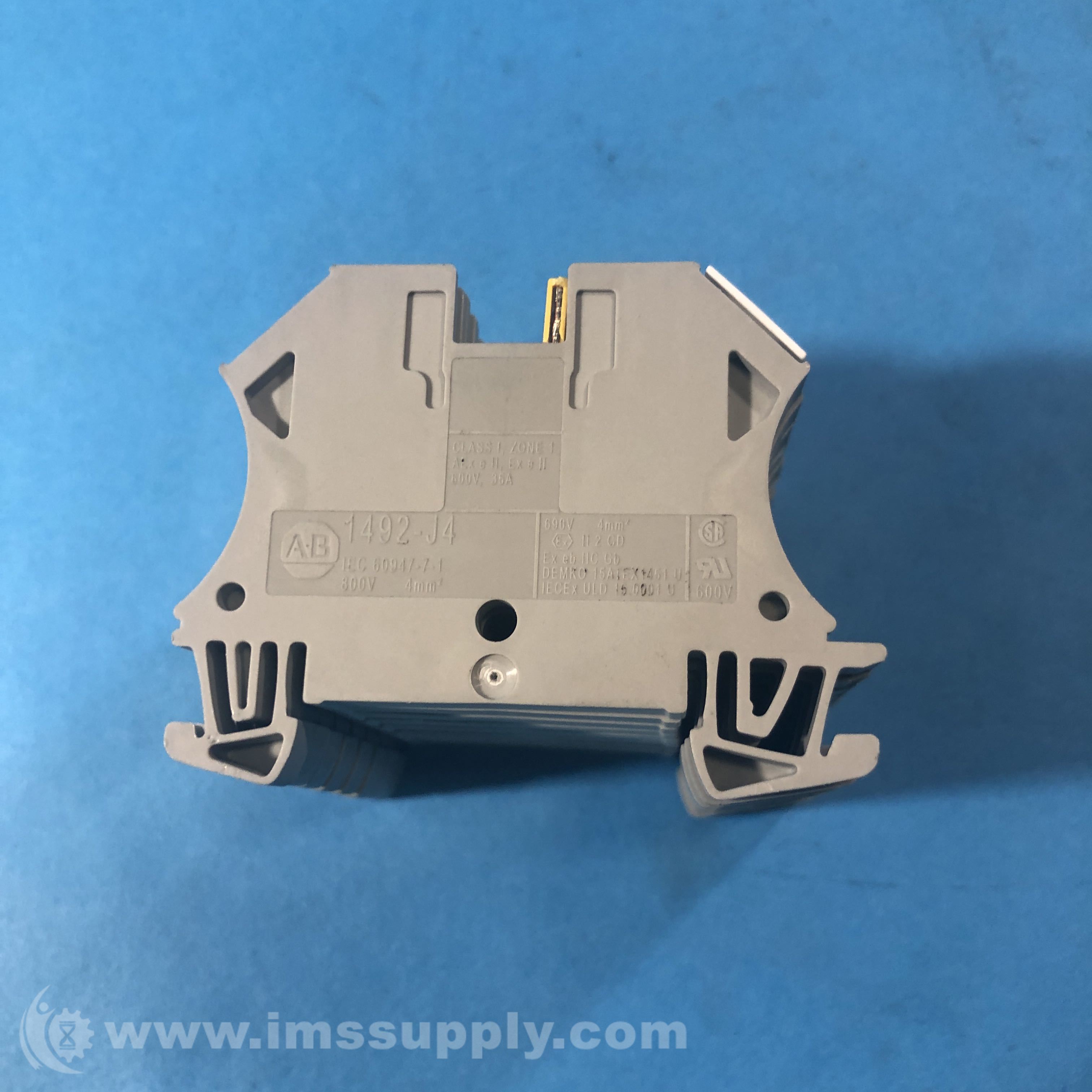

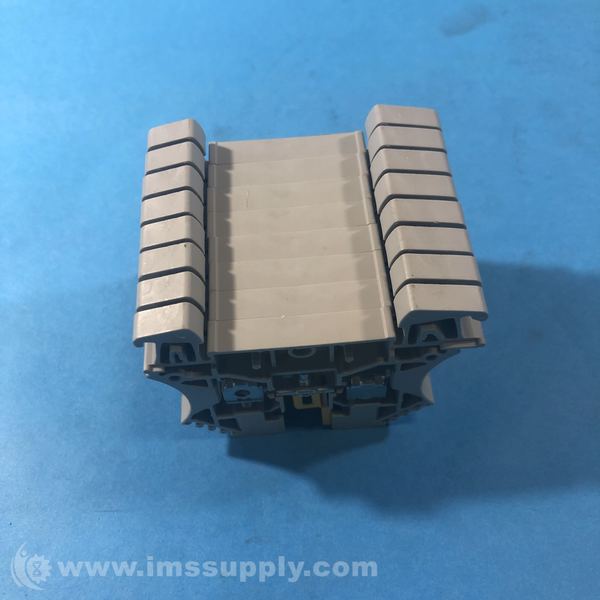

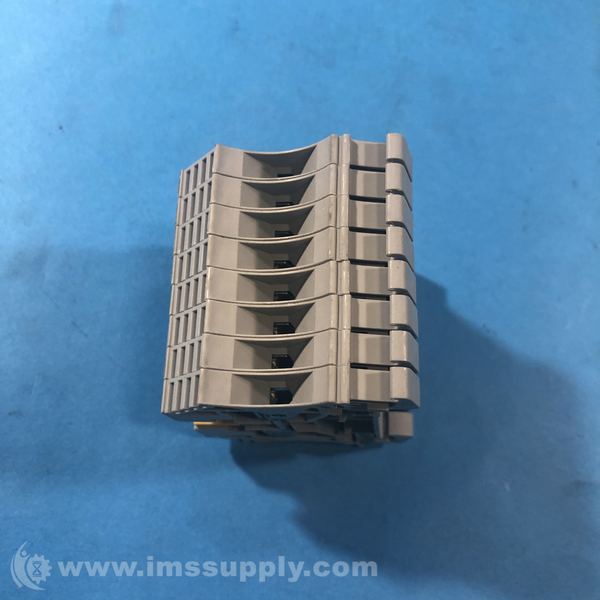

Allen Bradley 1492-J4 Terminal Block
Allen Bradley 4mm Feed Through Terminal Block with screw connections, gray color, 35A current rating, and 600V voltage rating.
Specifications
- Terminal Size: 6.1 x 60 x 39.5mm (0.24 x 2.36 x 1.56 in)
- Wire Size: UR - #22...10 AWG, CSA - #26...10 AWG, IEC - 4mm˛, ATEX #20...12 AWG
- Type: Terminal Block, Feed Through
- Number of Positions: 4
- Number of Ports: 2
- Compatible Wire Gauge (AWG): 1-5
- Color: Gray
- Mounting: DIN Rail
- Amperage: 35-Amps
- Voltage Rating: 600V AC/DC
- Size: 4mm
- Current Rating: 35A
- Maximum Wire Size & Rating: UL: 22-10 AWG (35A @600V AC/DC), CSA: 22-10 AWG (35A @600V AC/DC), IEC: 4mm (32A @800V AC/DC), EEx e II: 4mm/20-12AWG (28A @750V AC/DC)
- Base Block Type: One-Circuit Feed-Through Block
- Base Block Style: Standard Feed-Through Blocks
- Features: Standard Feedthrough
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
