ALLEN BRADLEY 1492-JD3 TERMINAL BLOCK
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 1492-JD3
IMS Product Code: 145761
Variation: Unspecified
Unspecified
Color: Orange
Packaging: Sold Individually
Sold Individually
Box of 10
Box of 100
Description:

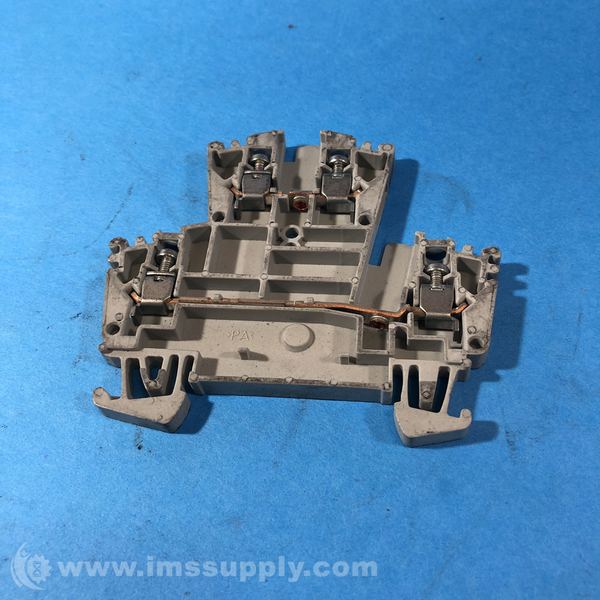

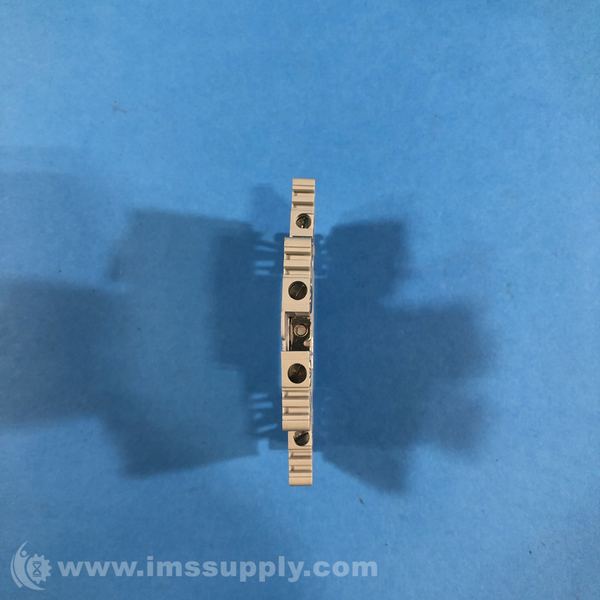

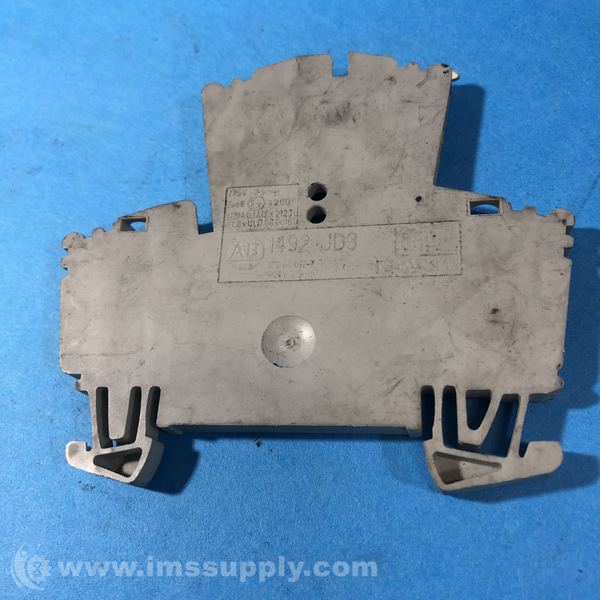

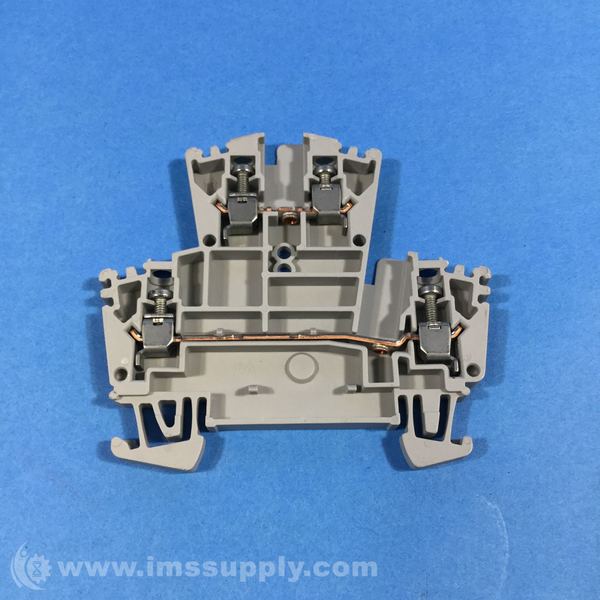

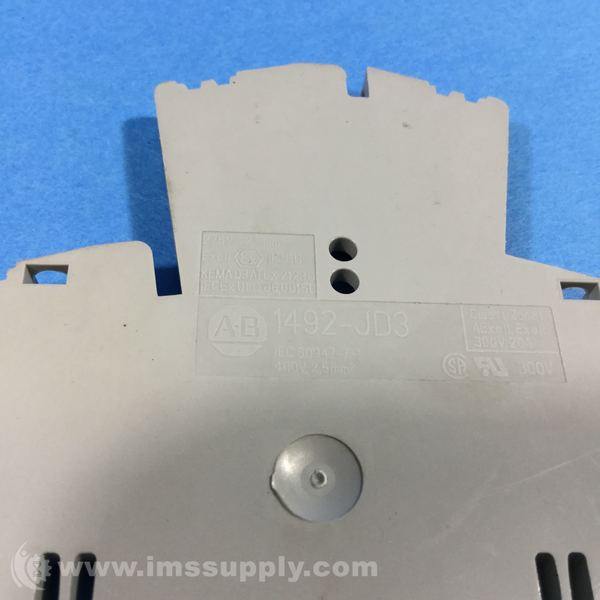

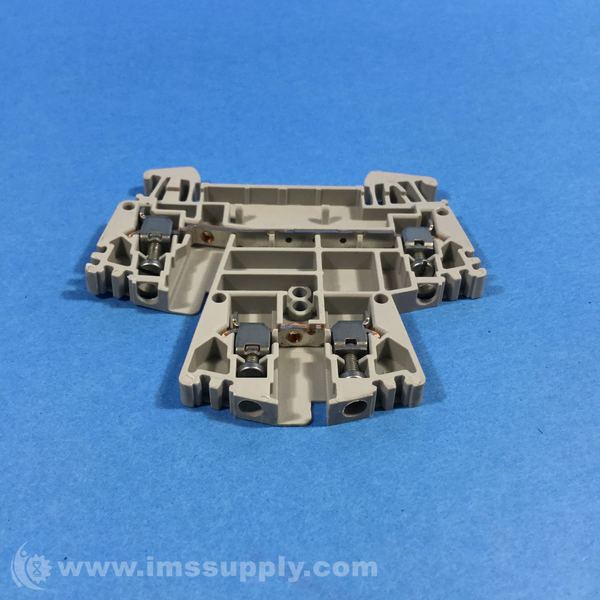

Allen Bradley 1492-JD3 Terminal Block
Two-Circuit Feed-Through Block, 2.5 mm, Gray, DIN Rail Mount
Specifications
- Terminal Size: 5.1 x 69 x 55.5mm (0.20 x 2.72 x 2.19 in)
- Wire Size: UR - #22...12 AWG, CSA - #26...12 AWG, IEC - 2.5mm, ATEX 20...14 AWG
- Size: 2.5 mm
- Base Block Style: Multi-Circuit Feed-Through Blocks
- Base Block Type: Two-Circuit Feed-Through Block
- Features: Standard Feedthrough
- Maximum Wire Size & Rating: UL: 22-12 AWG (20A @600V AC/DC) CSA: 26-12 AWG (10A @300V AC/DC) IEC: 2.5mm (24A @400V AC/DC) EEx e II: 2.5mm/20-14 AWG (21A @ 275V AC/DC)
- Color: Gray
- Type: Terminal Block, Feed Through
- Volts AC: 300
- Family / Style: 1492
- Mounting: DIN Rail
- Amps: 20
- Volts DC: 300
- Allowable Gauge Range: 22 - 12
- Dimensions: 5.1 X 69 X 55.5MM (0.20 X 2.72 X 2.19 IN)
- Voltage Rating: UR - 600VAC/DC CSA - 300VAC/DC IEC - 400VAC/DC ATEX - 275VAC/DC
- Max Current: 20AMP
- Wire Range: 22-12AWG
- Number of Positions: 3
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 53 In Stock
Ships today if ordered in the next 3 hours and 59 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 6 In Stock
Ships today if ordered in the next 3 hours and 59 minutes.
Used (Special):
Missing 2 connection points at the top
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 59 minutes.
