ALLEN BRADLEY 1492-WFB4 FUSE BLOCK
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 1492-WFB4
IMS Product Code: 2131355
Packaging: Bag of 8
Sold Individually

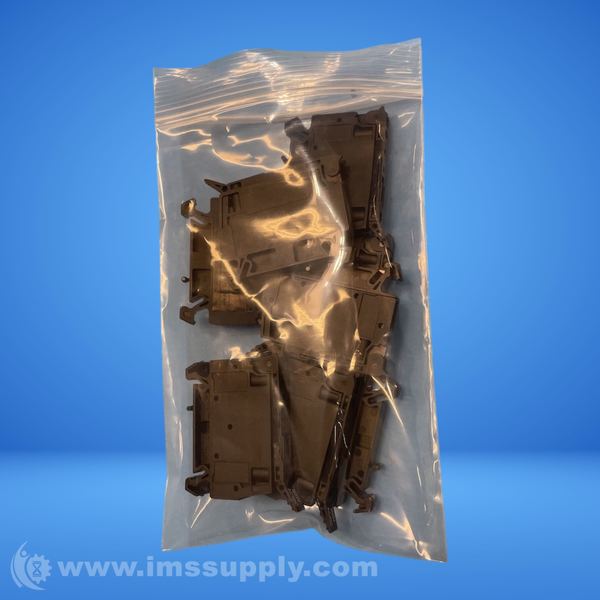

Bag of 8
Description:

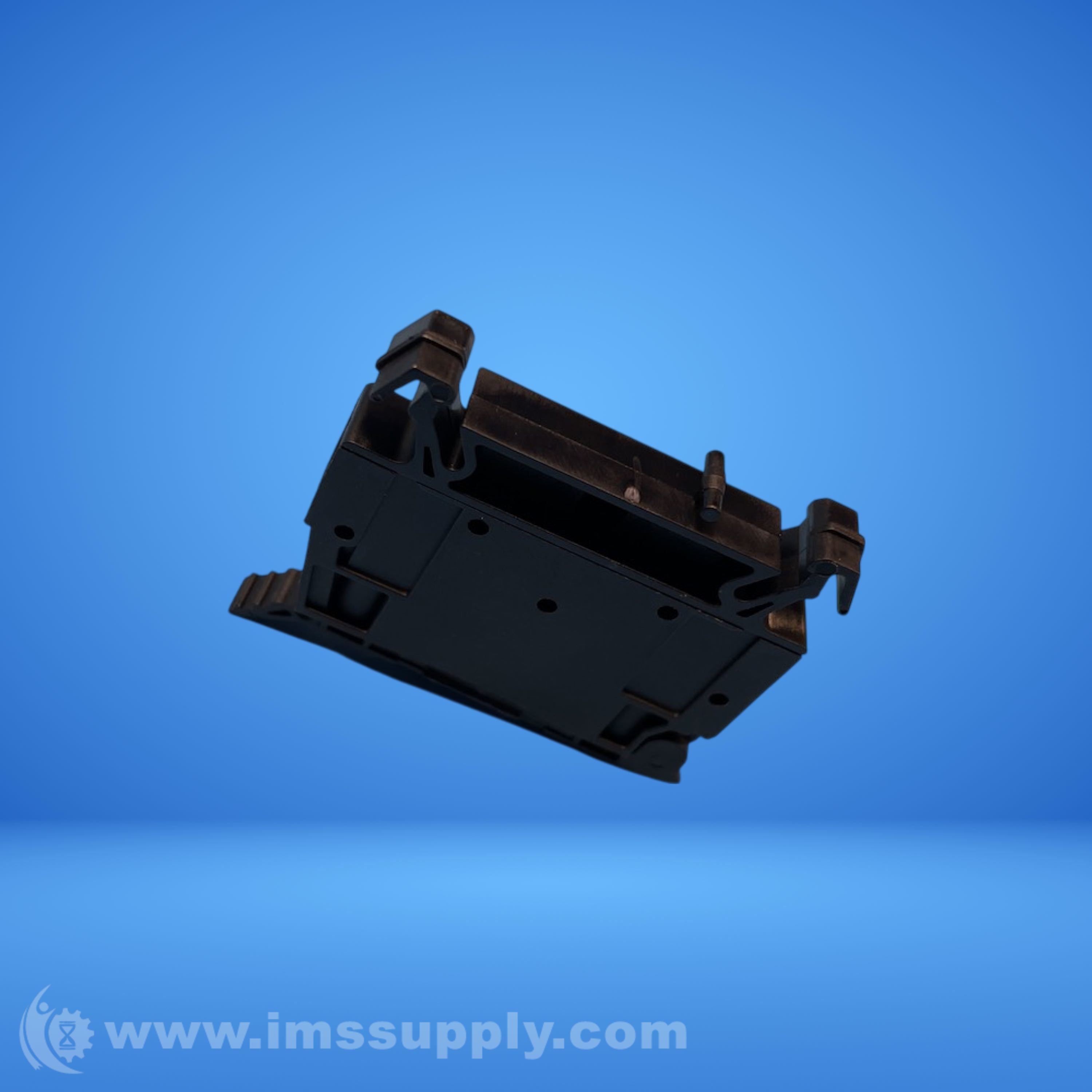

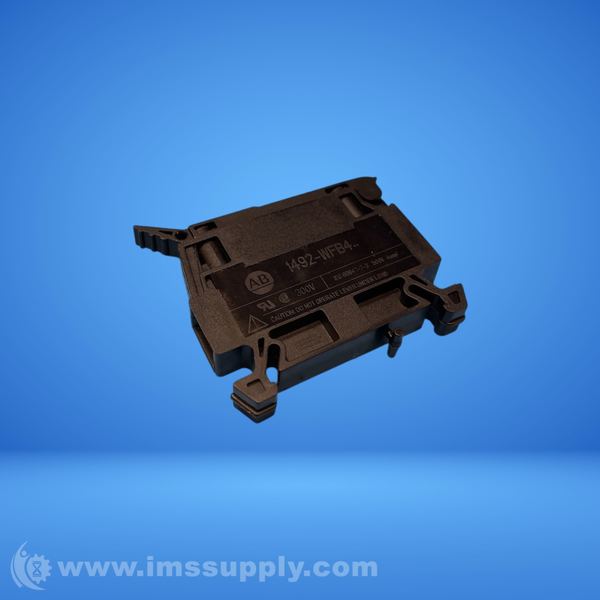

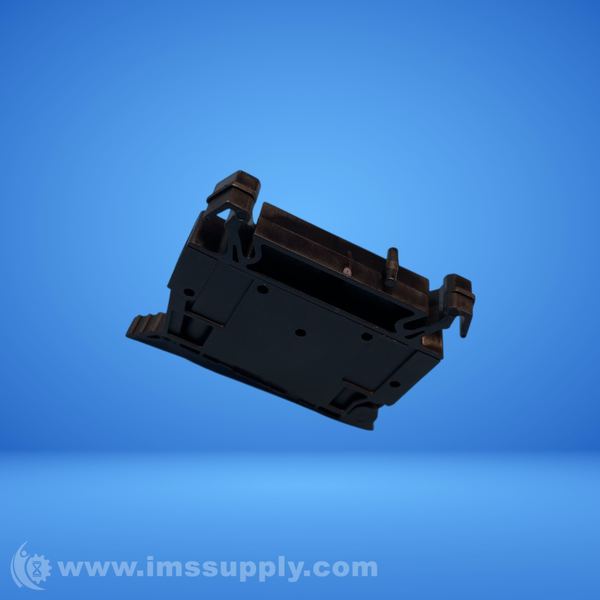

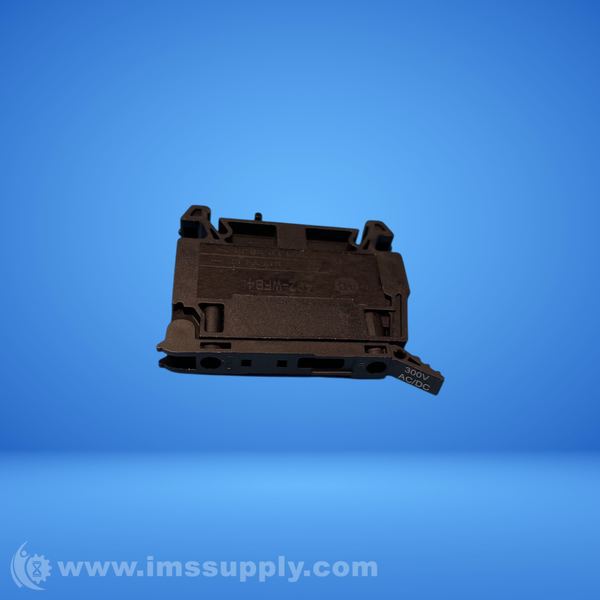

Allen Bradley 1492-WFB4 Fuse Block
Screw connection terminal block with fuse, rated for 15A, 300V AC/DC, black, DIN rail mounting.
Specifications
- type: Terminal Block, Fuse Block
- volts ac: 300
- mounting: DIN Rail
- color: Black
- amps: 15
- volts dc: 300
- allowable gauge range: 22 - 10
- series: 1492-W
- american wire gauge: 20 ? 11AWG
- termination method: Screw
- fused: Yes
- voltage rating: UR - 300V AC/DC, CSA - 300V AC/DC, IEC - 500V AC/DC
- current rating: 15A
- base block style: Fuse Blocks
- base block type: One-Circuit Fuse Block (5 x 20 mm Fuses, Type W)
- features: Non-Indicating
- maximum wire size & rating: UL: 30-12 AWG (15A @300V AC/DC) CSA: 30-12 AWG (15A @300V AC/DC) IEC: 4mm˛ (15A @500V AC/DC)
- terminal size: 8 x 50.7 x 39.4mm (0.31 x 2.0 x 1.55 in)
- wire size: UR - #30...12 AWG, CSA - #30...12 AWG, IEC - 0.5...4mm˛
- amperage rating: UR - 15A, CSA - 15A, IEC - 15A
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 37 minutes.
