ALLEN BRADLEY 1746-IO8 COMBINATION I/O MODULE
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 1746-IO8
IMS Product Code: 147762
Packaging: Sold Individually
Description:

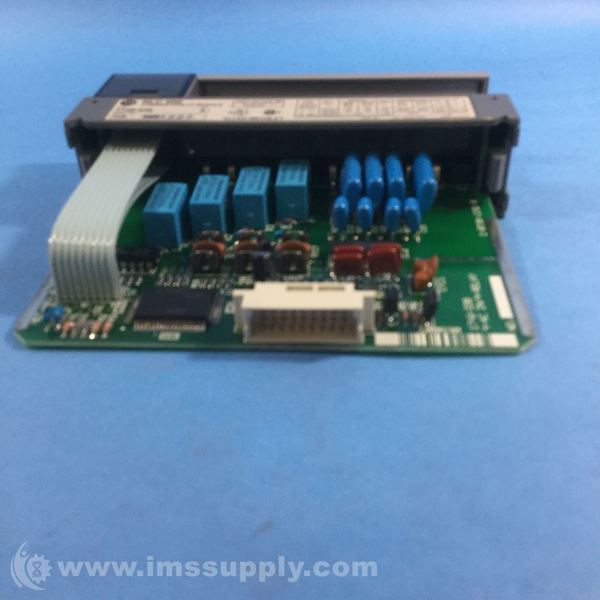

Allen Bradley 1746-IO8 Combination I/O Module
The Allen-Bradley 1746-IO8 is a digital I/O module with 4 inputs and 4 relay outputs for the SLC 500 platform. It operates with 120VAC inputs and relay contact outputs.
Specifications
- Operating Voltage Range: 85 to 132VAC @ 47 to 63Hz (inputs), 5 to 265 VAC @ 47 to 63Hz / 5 to 125 VDC (outputs)
- Backplane Current: 60mA at 5VDC, 45mA at 24VDC
- Thermal Dissipation per Input Point: 0.27 Watts
- Thermal Dissipation per Output Point: 0.133 Watts
- Number of Channels: 8
- Inputs per Module: 4
- Outputs per Module: 4
- Operating Temperature Range: 32 to 140 degrees Fahrenheit
- Storage Temperature Range: -40 to 185 degrees Fahrenheit
- Operating Shock: up to 30 Gs
- Weight: 0.20 kgs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
