ALLEN BRADLEY 1756-A10 CONTROLLOGIX CHASSIS
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 1756-A10
IMS Product Code: 147901
Variation: Unspecified
Unspecified
Series: B
Packaging: Sold Individually
Description:

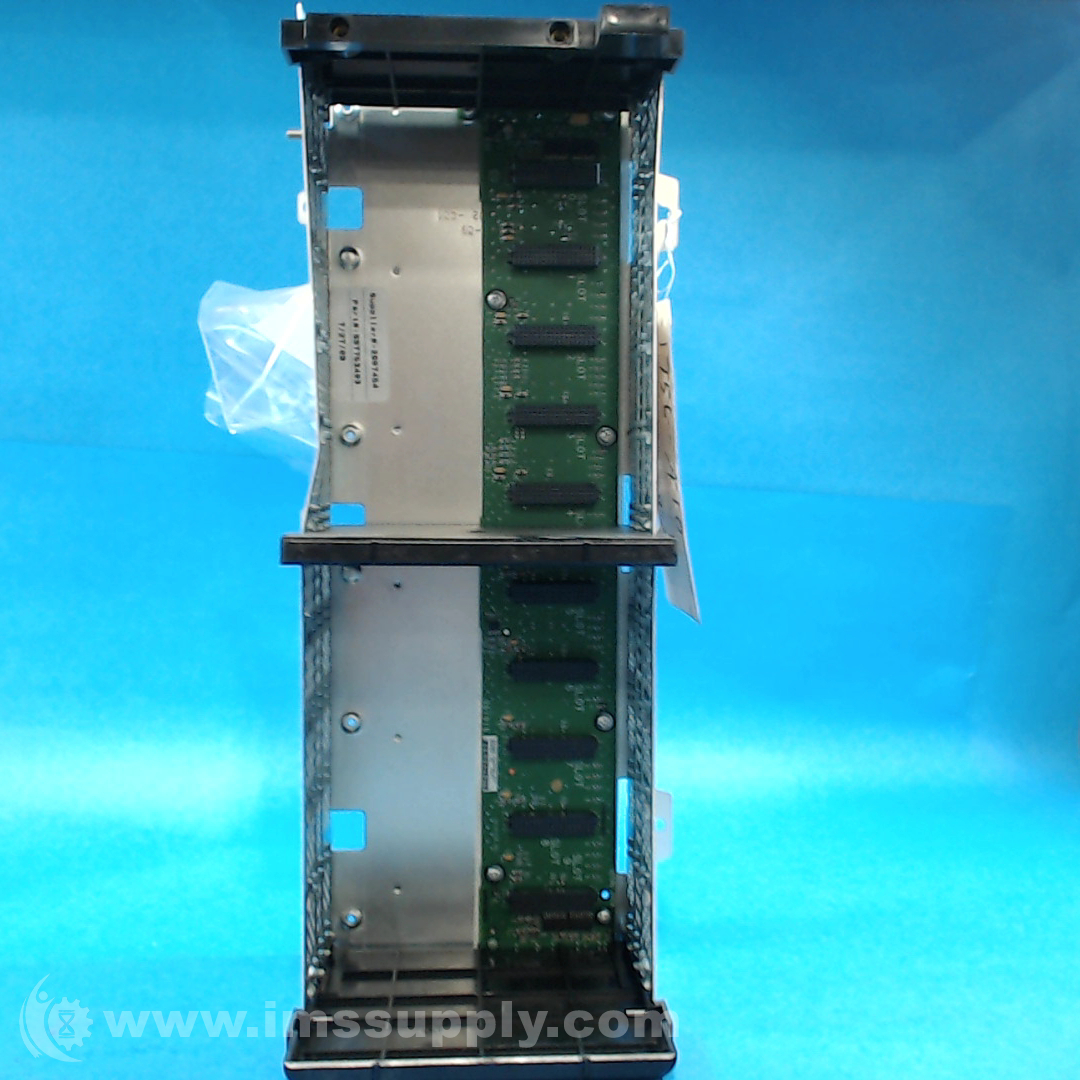

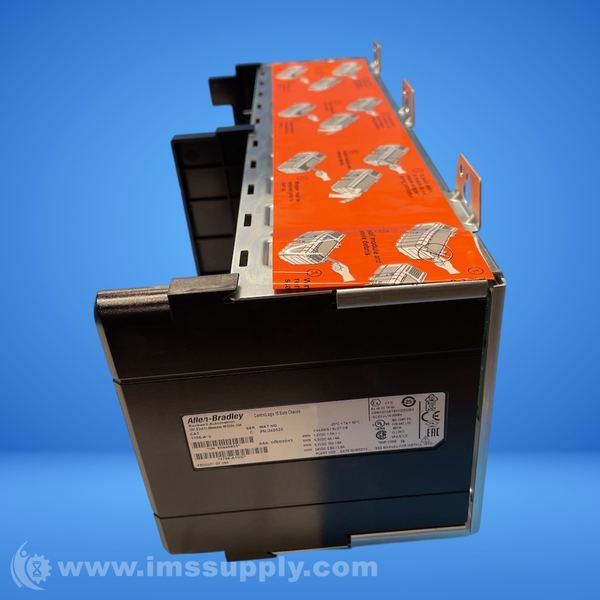

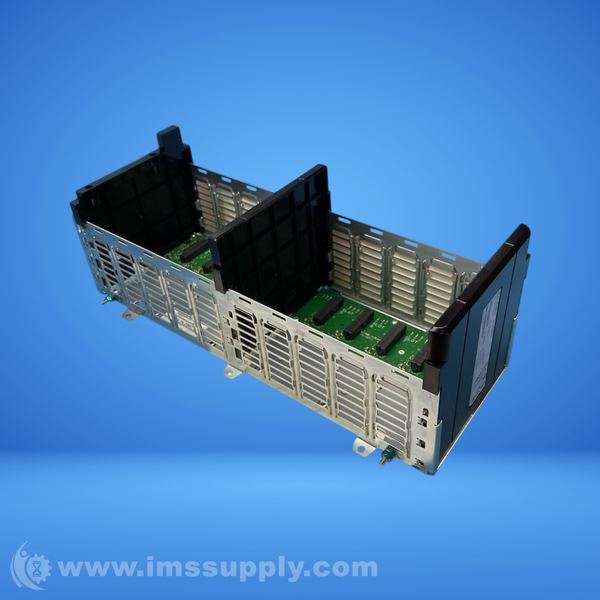

Allen Bradley 1756-A10 ControlLogix Chassis
ControlLogix chassis with ten slots for industrial automation applications.
Specifications
- Number of Slots: 10
- Type: ControlLogix Chassis
- Maximum Backplane Current: 1.5 A @ 1.2VDC; 4A/4A @ 3.3 VDC; 15 A/6 A @ 5.1 VDC; 2.8 A/2.8 A @ 24VDC
- Mounting: Sub-panel, Horizontal only
- Cooling: Convection
- Enclosure: None (Open-Style)
- Form Factor: Slot type chassis
- Temperature Rating: 0...60 degrees C (32...140 degrees F)
- Storage Temperature: -40 to 85 degrees Celsius
- Operating Temperature: 0 to 60 degrees Celsius
- Relative Humidity: 5 to 95%
- Vibration Rating: 2G at 10 to 500 Hertz
- Operating Shock Rating: 30G
- Non-operating Shock Rating: 50G
- Dimensions: 170.94 x 400.3 x 145.03 millimeters
- Required Cabinet Size: 507 x 762 x 203 millimeters
- Weight: approximately 3.2 pounds
- Maximum Per-slot Backplane Current: 1.5 Amps/- at 1.2 Volts DC, 4 Amps/4 Amps at 3.3 Volts DC, 15 Amps/6 Amps at 5.1 Volts DC and 2.8 Amps/2.8 Amps at 24 Volts DC
- Power Dissipation: 6.1 BTU/hour
- Power Consumption: 1.8 Watts
For Parts or Repair:
A non-functional product sold as-is for parts or repair.
Availability: 2 In Stock
