ALLEN BRADLEY 1756-IF16 ANALOG INPUT MODULE
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 1756-IF16
IMS Product Code: 147935
Variation: Unspecified
Unspecified
Series: A
Packaging: Sold Individually
Description:
Allen Bradley 1756-IF16 Analog Input Module
ControlLogix analog input module with 16 single-ended inputs for current and voltage signals.
Specifications
- Series: ControlLogix
- Module Type: Analog Input Module
- No. of Inputs: 16 single ended, 8 differential or 4 differential (high speed)
- Input Signal: 0-10.25V, +/- 10.25V, 0-5.125V, 0-20.5mA
- Resolution: 320 µV/count (15 bits + sign bipolar) @ ±10.25V; 160 µV/count (16 bits) @ 0…10.25V: 80 µV/count (16 bits) @ 0…5.125V; 0.32 µA/count (16 bits) @ 0…20.5 mA
- Scan Time: 16 pt single-ended: 16-488 ms; 8 pt differential: 8-244 ms and 4 pt high-speed differential: 5-122 ms
- Backplane Current, 5.1VDC: 150 mA
- Backplane Current, 24VDC: 65 mA
- Removable Terminal Block (RTB): 1756-TBCH, 1756-TBS6H
- Module conversion method: Sigma-Delta
- Data format: Integer mode (left justified, 2's complement), IEEE 32-bit floating point

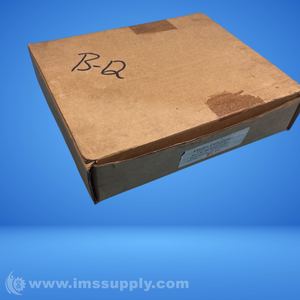

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 10 minutes.
