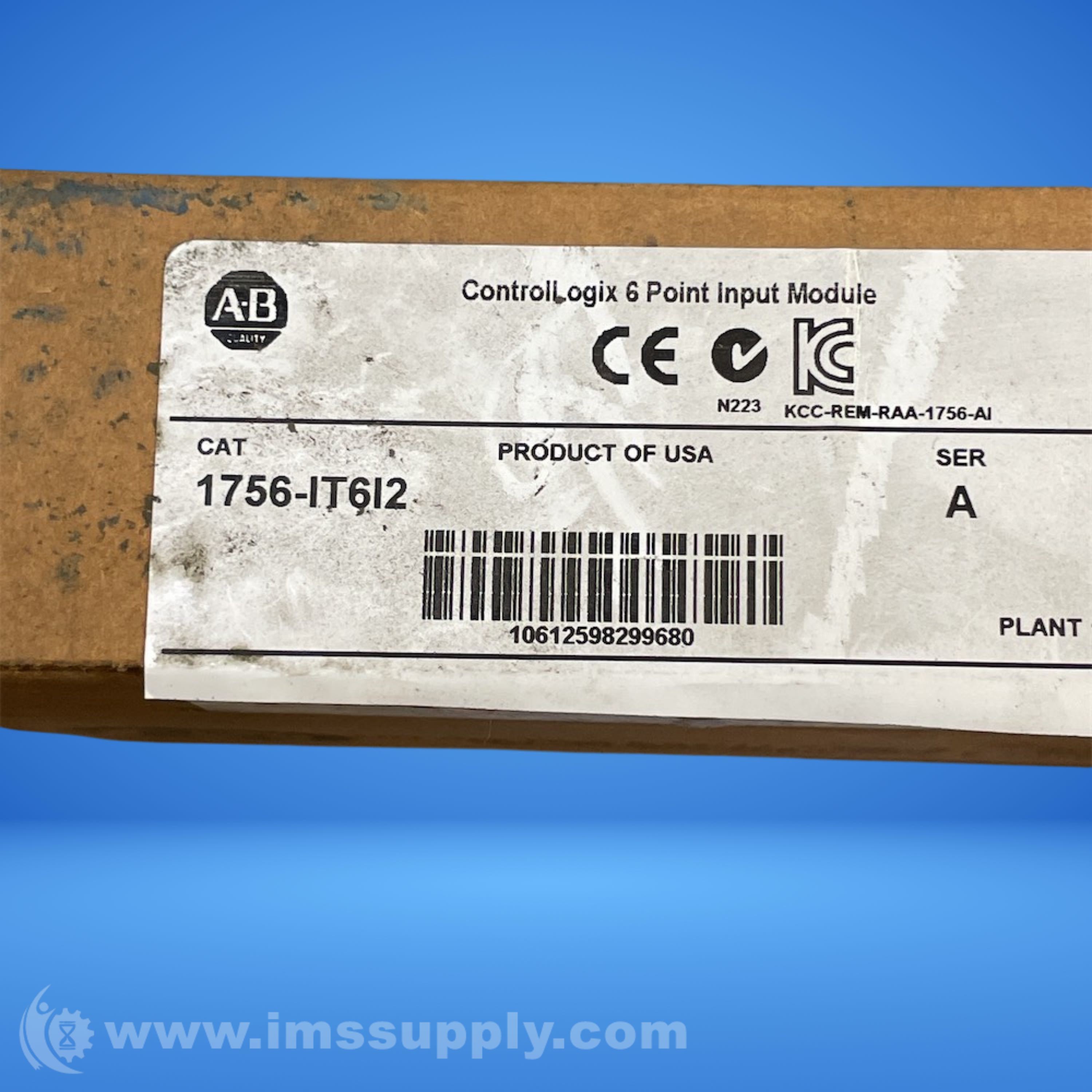

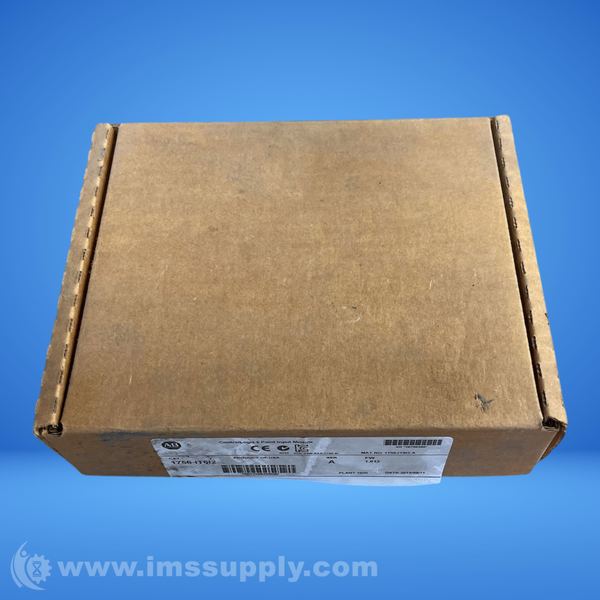

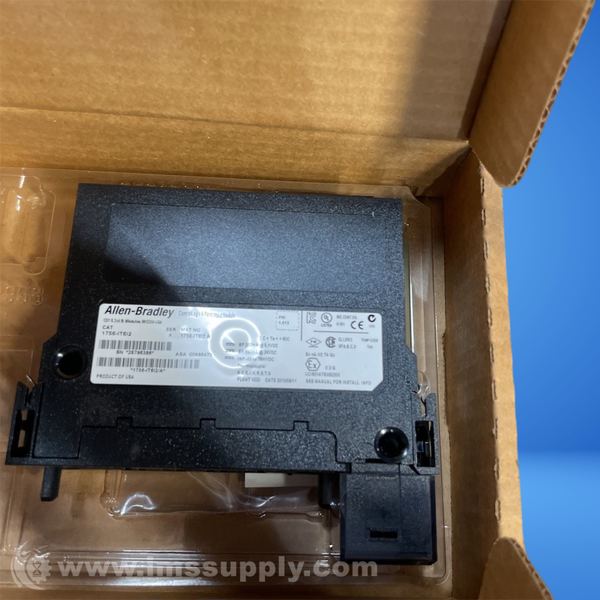

ALLEN BRADLEY 1756-IT6I2 SERIES A ANALOG I/O MODULE
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 1756-IT6I2
IMS Product Code: 2142245
Series: A
Unspecified
Series: A
Packaging: Sold Individually
Description:
Allen Bradley 1756-IT6I2 Series A ControlLogix 6 Pt Enhanced TC In Module (Discontinued)
Specifications:
- Manufacturer: Allen Bradley
- Category: PLCs
- Product Line: ControlLogix
- Part Number: 1756-IT6I2
- UPC: 612598299683
- Weight: 0.81 lbs (0.37 kg)
- Inputs: 6 Isolated Thermocouple, 2 CJC
- Module Type: Analog Thermocouple Module
- No. of Inputs: Six (6) Point Isolated Thermocouple Inputs
- Input Resolution: 16 bits -12…78 mV: 1.4 ?V/bit (typical) -12…30 mV: 0.7 ?V/bit (high resolution range)Input Range
- Module Scan Time: 25 ms min floating point (millivolt) 50 ms min floating point (temperature) 10 ms min integer (millivolt)(1)
- Backplane Current (24Volts): 120 milliamps
- Data Format: Integer mode (left justified, 2s complement) IEEE 32-bit floating point
- Supported Sensors: B, C, D, E, J, K, L, N, R, S, T
- Backplane Current (5Volts): 200 milliamps
- Removeable Terminal Blocks: 1756-TBNH, 1756-TBSH
- Backplane Current at 24 Volts: 2 milliamperes
- Power Dissipation (Max): 4.6 Watts
- Removable Terminal Blocks: 1756-TBNH
