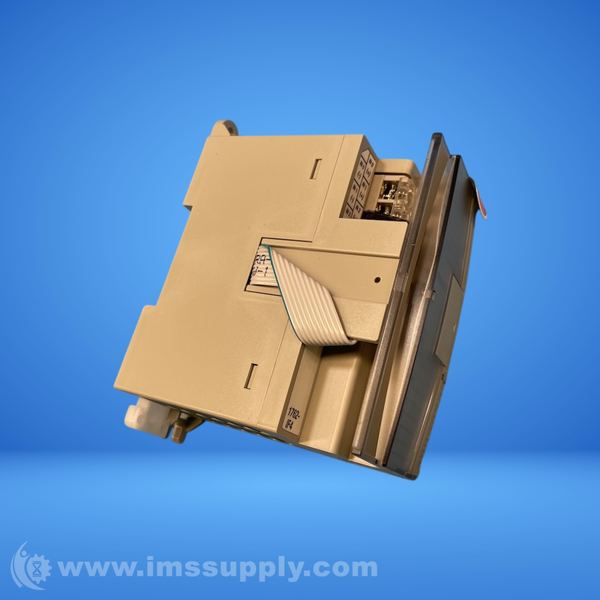

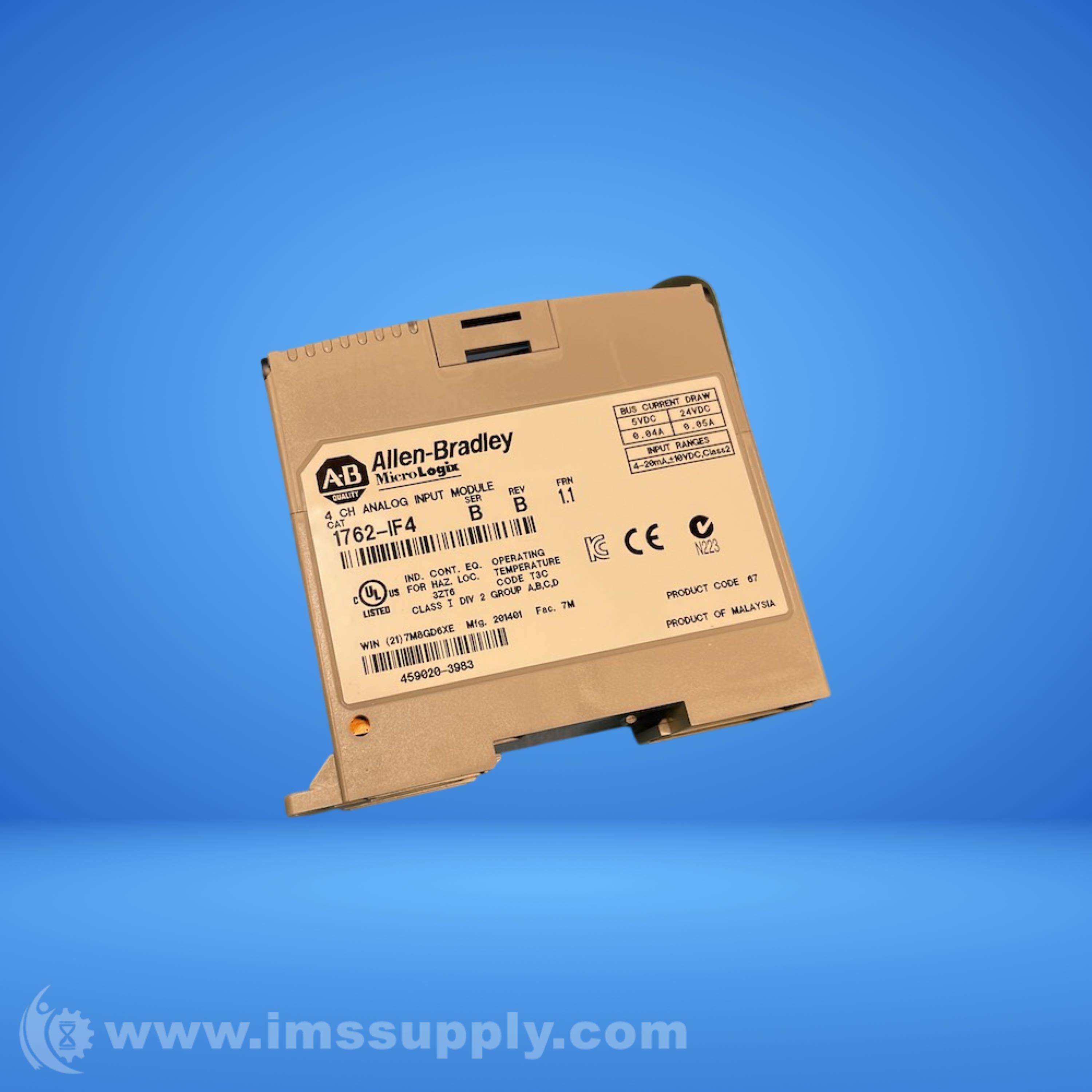

ALLEN BRADLEY 1762-IF4 ANALOG INPUT MODULE

Starting At: $204.50

Quick Overview

Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 1762-IF4
IMS Product Code: 1751123
Variation: Unspecified
Unspecified Series: B
Packaging: Sold Individually

Description:

Allen Bradley 1762-IF4 Analog Input Module

4 Channel Current/Voltage Analog Input Module

Specifications

  • Number Of Channels: 4 point
  • Current Range: 4-20
  • Depth: 87
  • Height: 90
  • I/O Isolation: Isolated
  • I/O Status Indication: LED
  • Module Interfaces: Analog input
  • Temperature Rating: -20…65 °C (-4…149 °F)
  • Resolution of the analogue inputs: 15 bit
  • Input, current: True
  • Input, voltage: True
  • Input signal, configurable: True
  • Analogue inputs configurable: True
  • Type of electric connection: Screw connection
  • Fast transient burst: IEC1000-4-4: 2kV @ 5kHz
  • Conducted immunity: 10V @ 0.15...80MHz
  • Radiated immunity: IEC1000-4-3: 10 V/m, 80...1,000 MHz, 80% Alitude modulation, +900 MHz keyed carrier
  • Surge immunity: IEC1000-4-5: 1kV galvanic gun
  • Operating temperature: -20 °C
  • ESD immunity: EN 61000-4-2, 4 kV contact, 8 kV air, 4 kV indirect
  • Operating altitude: 2000 m
  • Storage temperature: -40 °C
  • Operating humidity: 5...95% noncondensing
  • Common mode voltage range: -27 to 27V
  • A/D converter type: Successive approximation
  • Number of inputs: 4 differential (bipolar)
  • Common mode rejection: >55 dB at 50 and 60 Hz
  • Input update time: Typical: 130, 250, 290, 450, 530 ms (selectable)
  • Input impedance: Voltage Terminal: 200 K?
  • Current input protection: -32 mA
  • Voltage input protection: -30 V
  • Channel diagnostics: Over or under range or open circuit condition by bit reporting for analog inputs
  • Analog normal operating range: Voltage: -10...10V DC
  • Bus current draw, max: 40mA @ 5V DC, 50mA @ 24V DC
  • Full scale analog ranges: Voltage: -10.5...10.5V DC, Current: -21...21 mA
  • Repeatability: -0.12 to 0.12%
  • Input and output group to system isolation: 30V AC/30V DC rated working voltage (N.E.C. Class 2 required) (IEC Class 2 reinforced insulation) type test: 500V AC or 707V DC @ 1min
  • Width: 40 mm
  • Non-linearity: ±0.12% (in % full scale)
  • Typical overall accuracy: ±0.32% full scale @ -20...65 °C, ±0.24% full scale @ 25 °C
  • Weight: Shipping: 240 g (0.53 lbs.) approximately (with cartoon)
  • Vibration: Operating: 5 g @ 10...500 Hz, 0.030 in. max. peak-to-peak
  • Shock: Operating: 30 g
  • Hazardous environment class: Hazardous Location, Class I, Division 2 Groups A, B, C, D (UL 1604, C-UL under CSA C22.2 No. 213)
  • Radiated and conducted emissions: EN50081-2: Class A
  • Series: MicroLogix 1200
  • Product Type: Analog Input Module
  • Analog Normal Operating Voltage: -10.5 to 10 Volts DC
  • Mounting Type: DIN Rail or Panel
  • Status Indicator: Single source LED
  • Dimensions: 90 x 87 x 40.4 millimeters

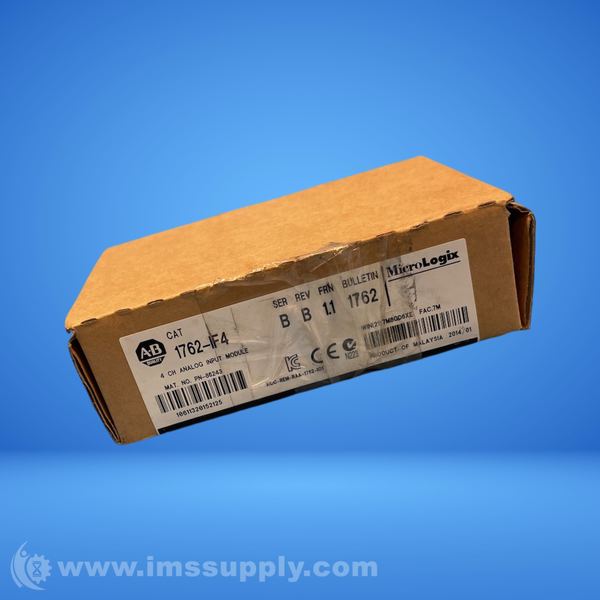

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.

Availability: 1 In Stock

Ships today if ordered in the next 16 hours and 22 minutes.

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Allen Bradley. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
