ALLEN BRADLEY 1769-IQ16 16 CHANNEL DC INPUT MODULE
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 1769-IQ16
IMS Product Code: 148112
Variation: Unspecified
Unspecified
Series: A
Packaging: Sold Individually
Description:

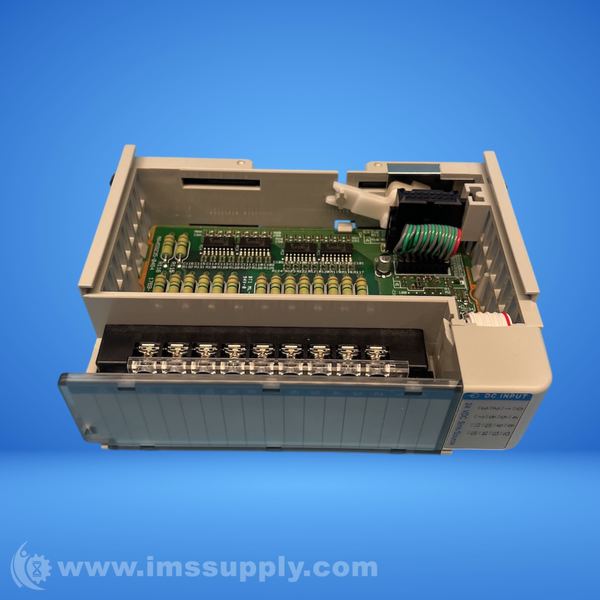

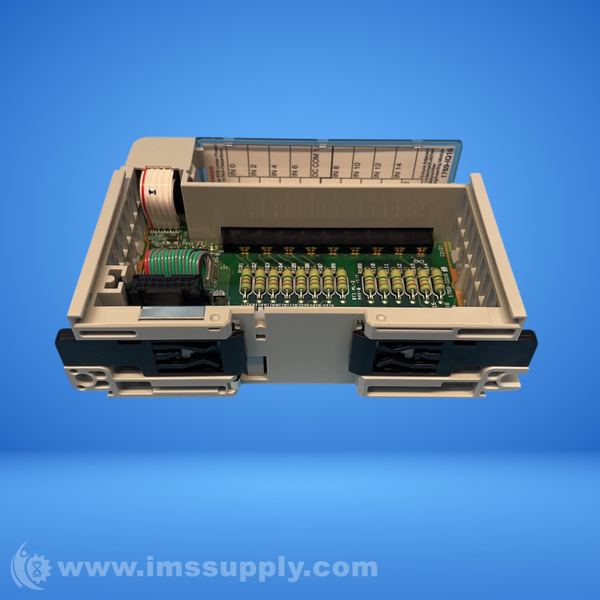

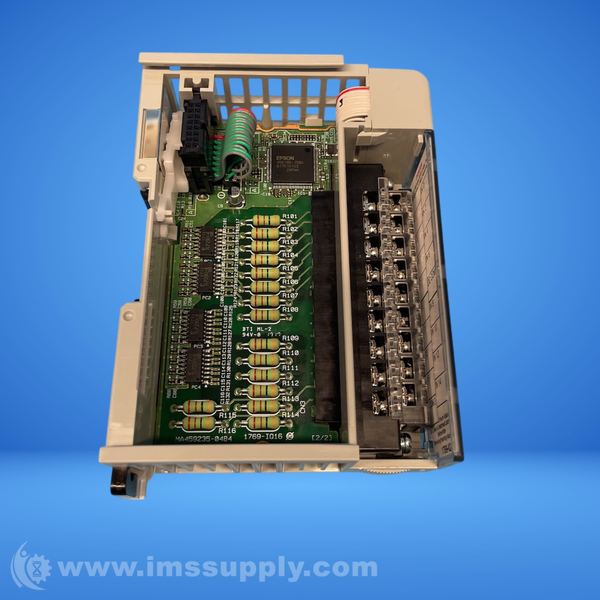

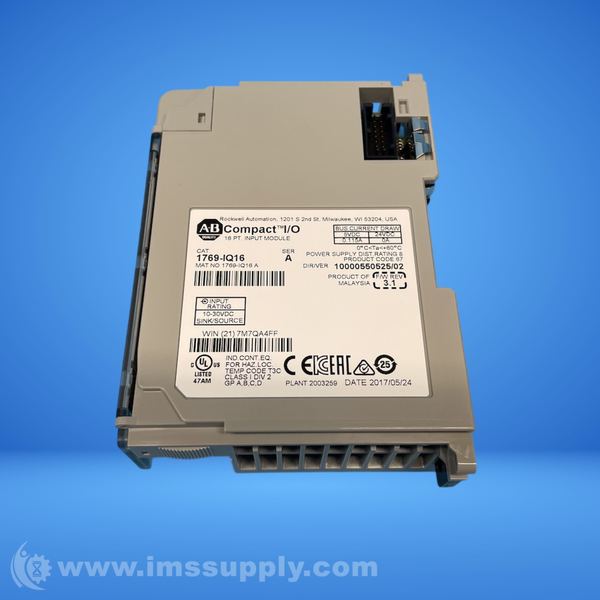

Allen Bradley 1769-IQ16 16 Channel DC Input Module
Compact I/O module with 16 DC input channels operating at 24VDC sink/source.
Specifications
- number of channels: 16
- voltage range: 24VDC
- input type: DC input
- analog/digital: Digital
- controller platform: CompactLogix
- type: PLC Input Module
- number of inputs: 16
- input voltage category: 24 Volts DC
- current draw from backplane: 115 milliamps
- supply voltage: 5 Volts DC
- heat dissipation: 3.55 Watts
- operating voltage range at 30°C: 10 to 30 Volts DC
- operating voltage range at 60°C: 10 to 26.4 Volts DC
- input delay (off): 8 milliseconds
- input delay (on): 8 milliseconds
- maximum off-state voltage: 5 Volts DC
- maximum off-state current: 1.5 milliamps
- minimum on-state voltage: 10 Volts DC
- minimum on-state current: 2 milliamps
- inrush current: 250 milliamps
- input impedance: 3 kilohms
- weight: 0.6 pounds
- dimensions: 118 x 35 x 87 millimeters
- input voltage: 24V DC
- input type: Sink/Source
- operating temperature: 0 to 60 degrees Celsius
- nominal input impedance: 3K O
- power supply distance rating: 8 modules
- power consumption: 115 mA at 5.1V dc
- isolation voltage: 1,200VAC for 1s or 1,697VDC for 1s
- working voltage: 75VDC
- mounting: Single slot width, DIN rail or panel mount

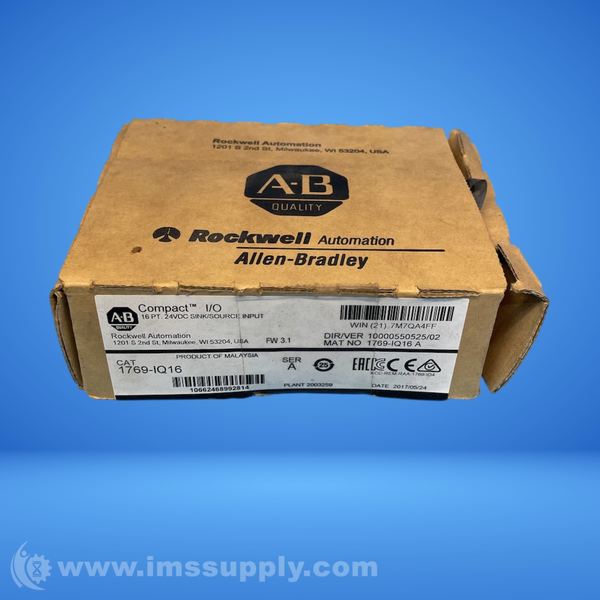

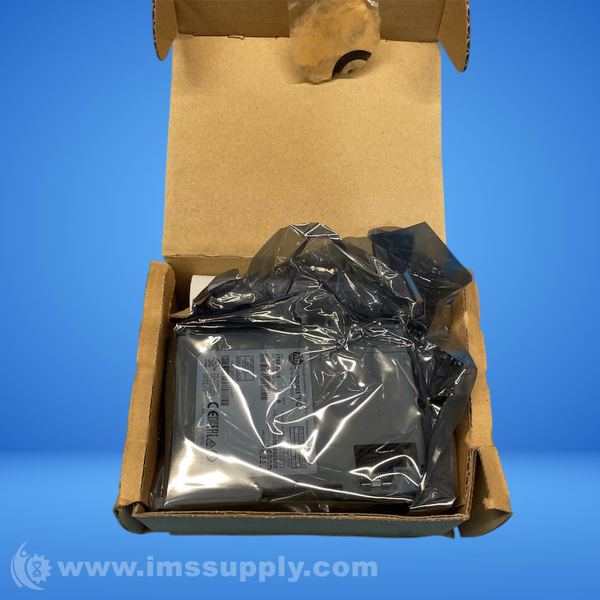

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
