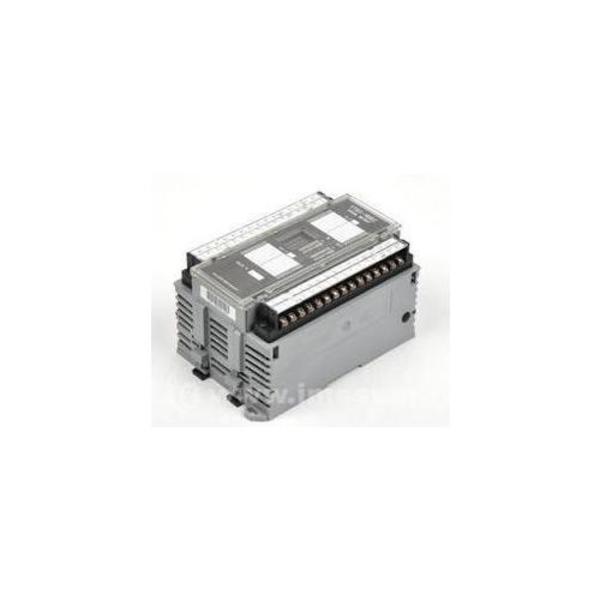

ALLEN BRADLEY 1791-16BC DISCRETE I/O BLOCK
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 1791-16BC
IMS Product Code: 148834
Variation: Unspecified
Unspecified
Series: B
Packaging: Sold Individually
Description:
Allen Bradley 1791-16BC Discrete I/O Block
Discrete I/O block with 16 inputs and 16 outputs
Specifications
- Product Type: Block I/O
- Product Line: 1791 Block I/O
- Part Number: 1791-16BC
- Weight: 2.25 lbs (1.02 kg)
- Output Voltage Range: 10-30VDC
- No. of Inputs: Sixteen (16)
- No. of Groups: 2 groups of 8
- On-state Voltage range: 10-30VDC
- No of outputs: Sixteen (16)
- External Power, Voltage: 19.2-30VDC
- External Power, Current: 300 mA
- Mounting: Vertical / Horizontal
- Power Dissipation, maximum: 17.8 Watts
- Thermal Dissipation, maximum: 60.6 BTU/Hr
- Voltage: 24V dc
- Inputs per Block: 16
- Input On-state Voltage Range: 10-30V dc
- Input On-state Current: 11mA @ 30V max.
- Input Off-state Voltage: 5V dc max.
- Input Off-state Current: 1.5mA min.
- Outputs per Block: 16
- Type: Block I/O Module
- Series: 1791
- Application: Distributed I/O
- Compatibility: Remote I/O (RIO) Networks
- Size / Rating: 16 Combination I/O Points
- Connection Type: Quick Disconnect
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 3 In Stock
Ships today if ordered in the next 11 hours and 10 minutes.
