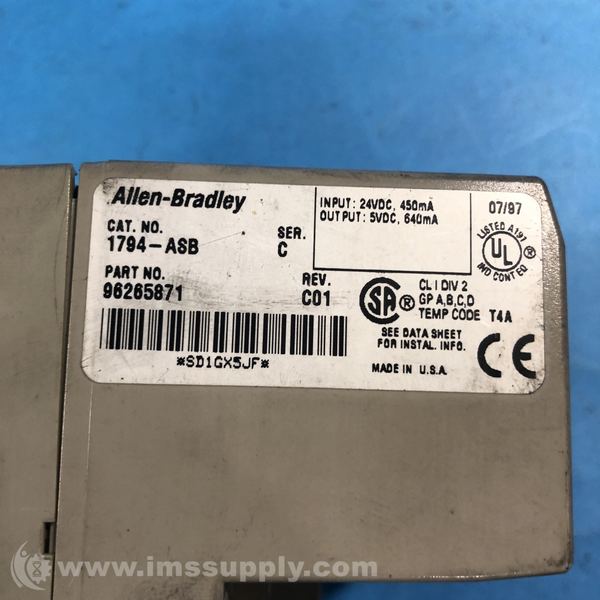

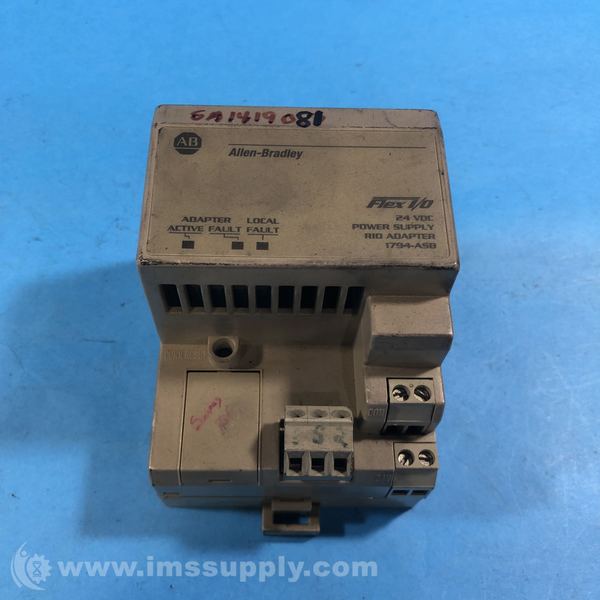

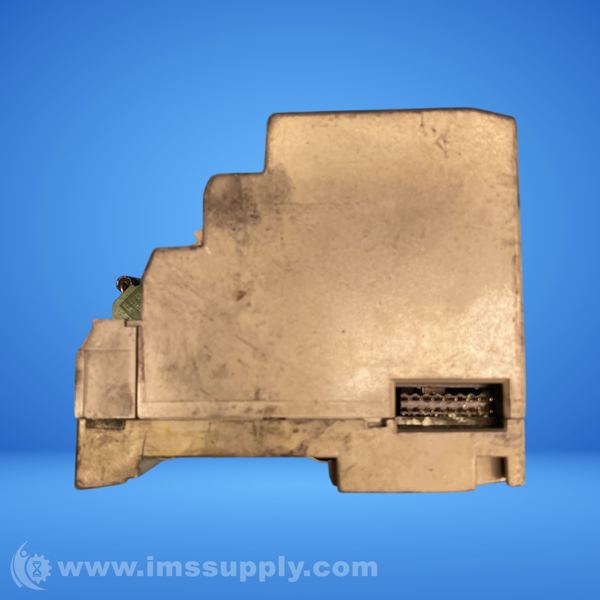

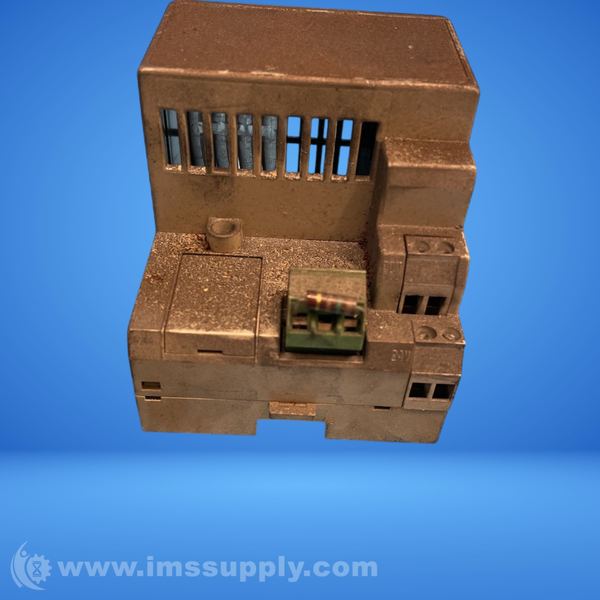

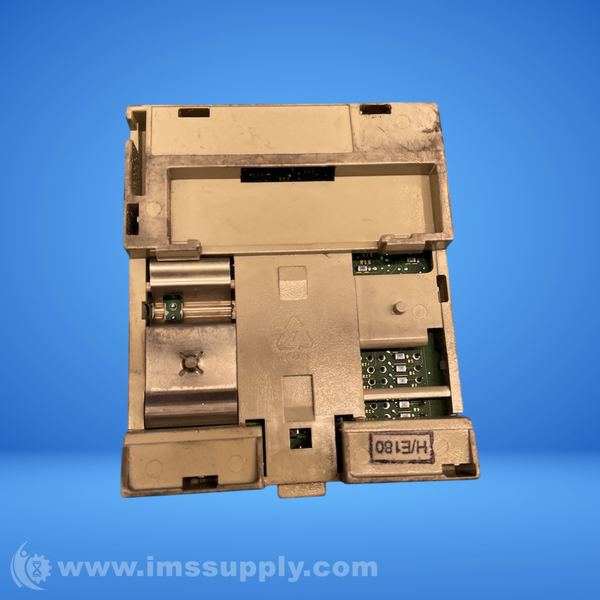

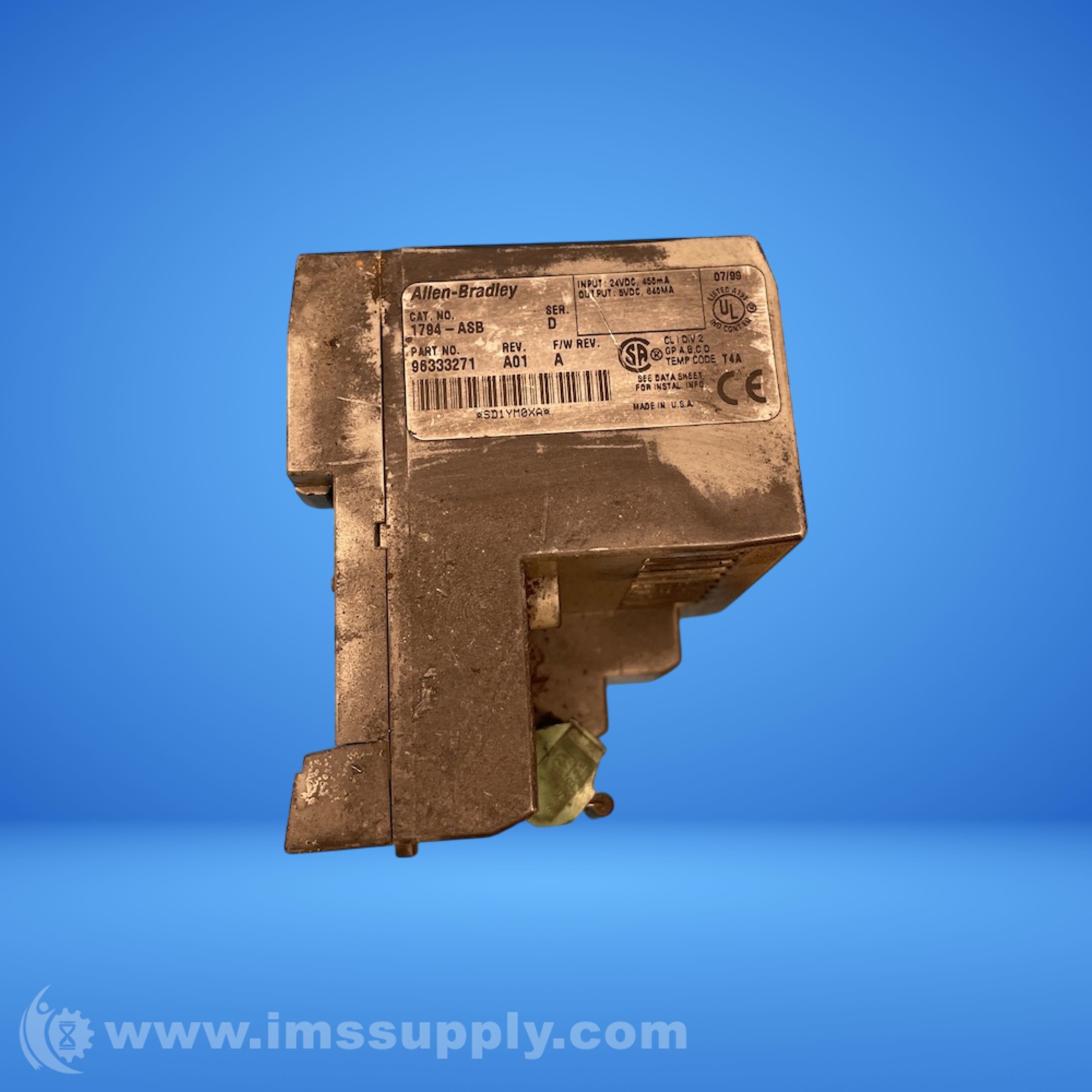

ALLEN BRADLEY 1794-ASB FLEX I/O REMOTE I/O ADAPTER
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 1794-ASB
IMS Product Code: 2146429
Variation: Unspecified
Unspecified
Series: C
Series: E
Packaging: Sold Individually
Description:
Allen Bradley 1794-ASB Flex I/O Remote I/O Adapter
The Allen-Bradley 1794-ASB is a FLEX I/O remote adapter module designed for integrating FLEX I/O systems into Remote I/O (RIO) networks.
Specifications
- Input Voltage: 19.2 - 31.2 VDC
- Communication Rate: 57.6Kbps, 115.2Kbps, 230.4Kbps
- Number of Modules Supported: Eight (8)
- Communication Port: One (1) Remote I/O (RIO)
- Power Dissipation: 4.6 W
- Power Consumption: 7.9 W
- Nominal Input: 24 VDC
- Operating Voltage: 19.2 to 31.2 VDC
- Series: Flex I/O
- Module Capacity: 8 Modules
- Mount: DIN Rail
- Controller Platform: FlexLogix
- Diagnostic Indicators: Status
- Enclosure: IP20, Open Type
- External Power Supply: 450 mA at 24 Volts DC
- Voltage: 24 Volts DC
- Dimensions: 4 x 2 x 4 inches
- Operating Temperature: 0 to 55 C (32 to 131 F)
- Storage Temperature: -40 to 85 C (-40 to 185 F)
- Vibration: Tested 5 g @ 10-500Hz per IEC 68-2-6
- Operating Shock: 30 g peak acceleration, 11(+1)ms pulse width
- Thermal Dissipation: 15.7 BTU/hr @ 24V DC
- Supported Protocol: RIO
- Supported Topologies: Daisy Chain
- Data Transfer Speed: 57.6Kbps, 115.2Kbps, and 230.4kbps
- Indicators: Power; Adapter Active; Adapter Fault; Local Fault
- RIO Cable: Belden 9463 or Equivalent
