ALLEN BRADLEY 2093-AC05-MP5 KINETIX 2000 INTEGRATED AXIS MODULE
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 2093-AC05-MP5
IMS Product Code: 149540
Packaging: Sold Individually
Description:

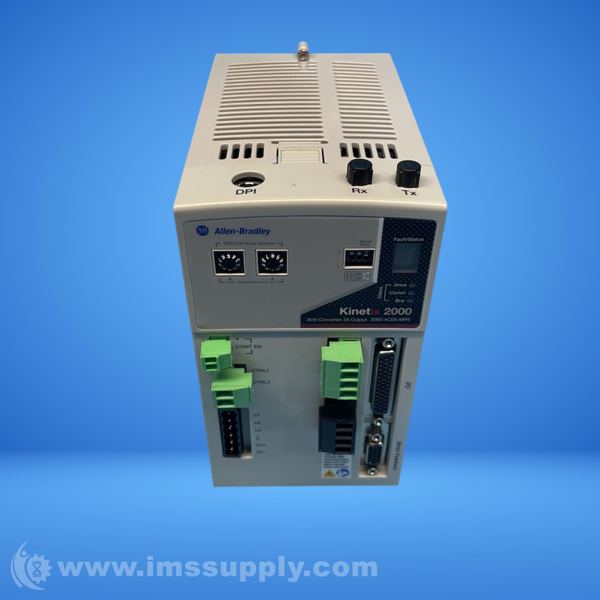

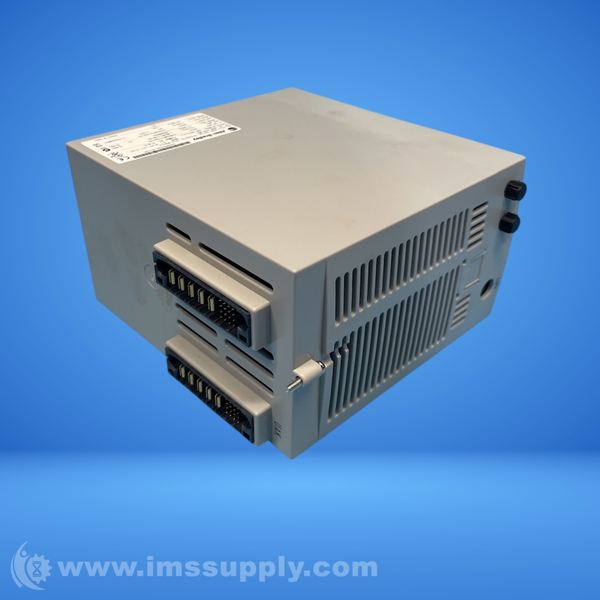

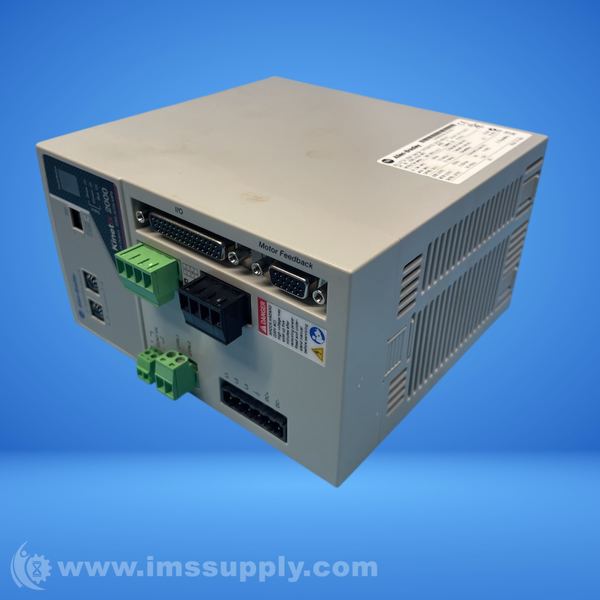

Allen Bradley 2093-AC05-MP5 Kinetix 2000 Integrated Axis Module
The Allen-Bradley 2093-AC05-MP5 is a Kinetix 2000 Integrated Axis module (IAM). This module is a 200 V class module with input voltage range of 170-264 VAC, 3-phase along an input frequency of 47-63 Hz.
Specifications
- Type: Servo Drive / Integrated Axis Module
- AC Input Voltage Range: 170�264 Vrms, 3-phase
- Nominal AC Voltage: 230 VAC
- Input Frequency: 47�63 Hz
- DC Input Voltage (Common Bus): 240�375 VDC
- Continuous Power Output to Bus: 3.0 kW
- Peak Power Output: 6.0 kW
- Continuous Output Current to Bus: 9.67 A
- Bus Overvoltage Trip: 425 VDC
- Bus Undervoltage Trip: 137.5 VDC
- PWM Frequency: 8 kHz
