ALLEN BRADLEY 22B-D4P0N104 POWERFLEX 40 AC DRIVE
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 22B-D4P0N104
IMS Product Code: 149874
Variation: Unspecified
Unspecified
Series: A
Packaging: Sold Individually
Description:

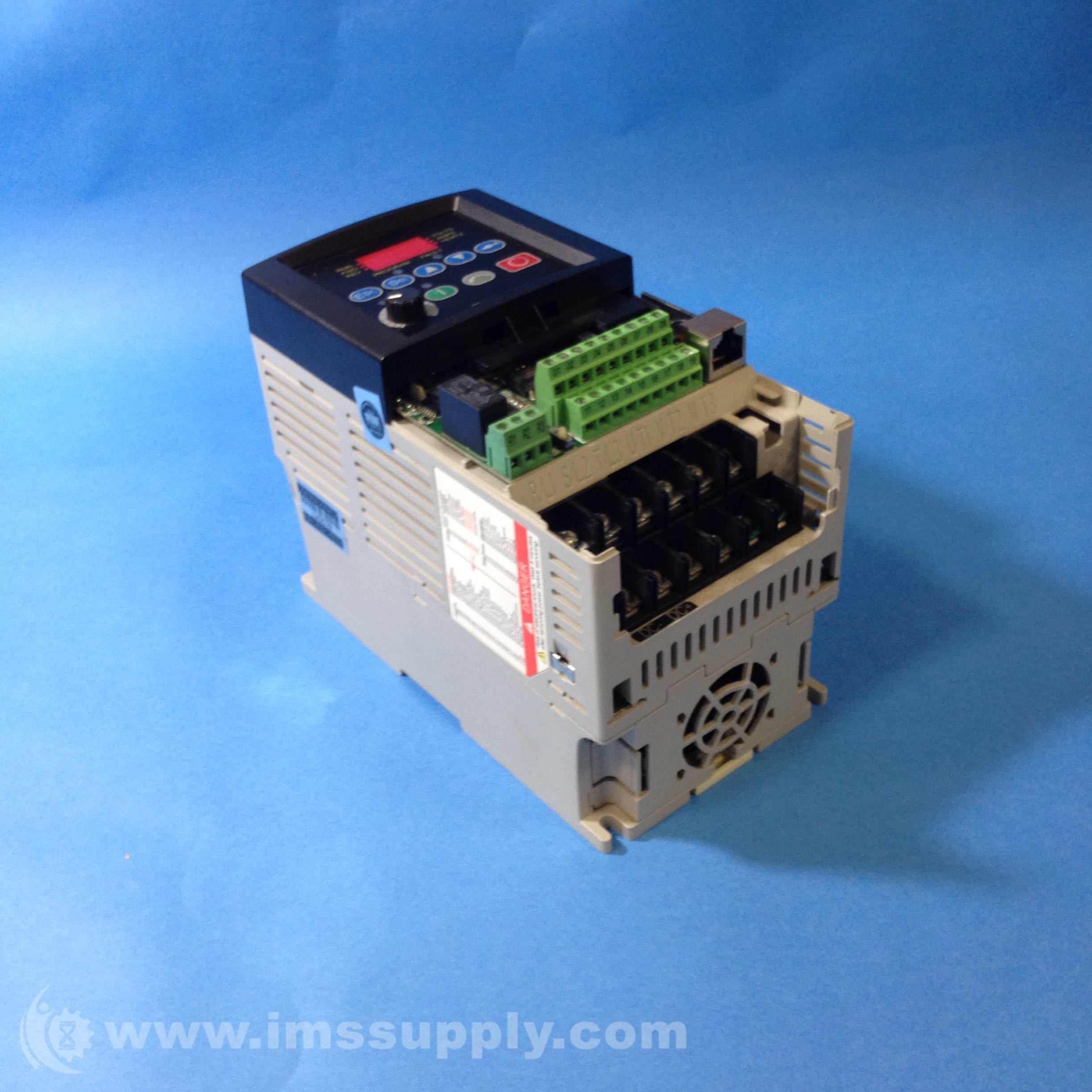

Allen Bradley 22B-D4P0N104 PowerFlex 40 AC Drive
This is a PowerFlex 40 AC Drive with a 2 HP (1.5 kW) motor rating, 4.0 Amp output, and 380-480V AC input voltage. It features a panel mount design with IP20/NEMA UL Type Open enclosure, RS-485 communication, and an LED keypad.
Specifications
- Product Line: PowerFlex 40
- Product Type: Drive
- Voltage: 380-480 Volts AC
- Amperage: 4.0 Amps
- HP: 2 Horsepower
- Input Type: Keypad
- Frame Size: Frame Size B
- Communication: RS-485
- Enclosure: Panel Mount - IP20, NEMA/UL Type Open
- Input Voltage: 380-480VAC
- Input Phase: 3-Phase
- Rated Current output: 4.0 A
- Rated Power: 1.5 kW (2 HP)
- Installation: Panel Mount
- Enclosure Rating: IP20 / NEMA UL Type Open
- Keypad: LED Keypad
- Built-in Communication port: RS485
- Output: 3 Phase, 0-400Hz
- Continuous Amps: 4.0
- 60 Sec Ovld Amps: 6.0
- Short Circuit Current: 100kA
