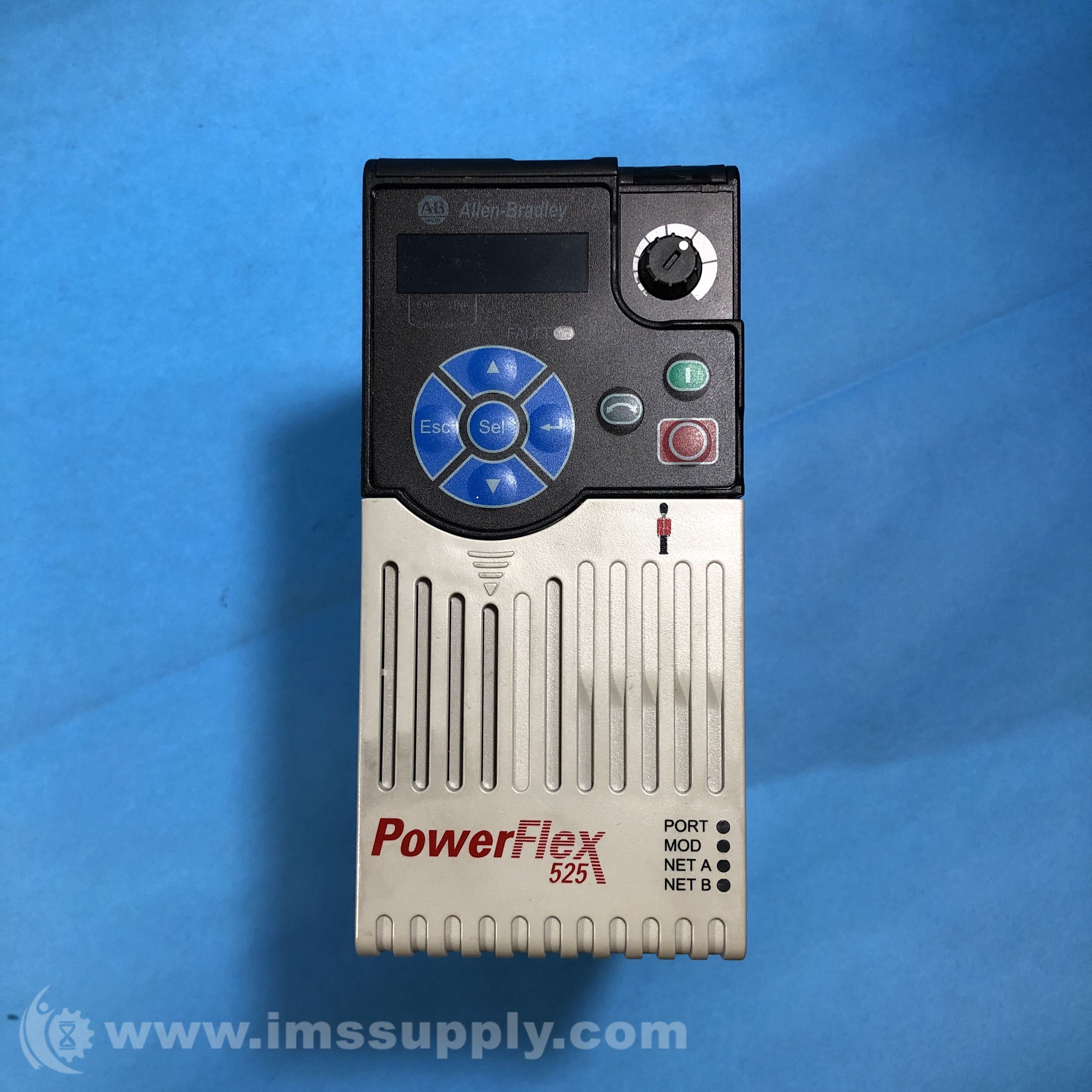

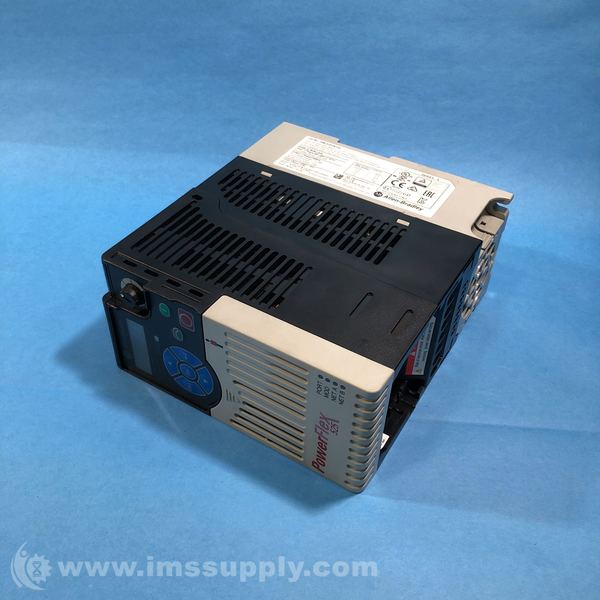

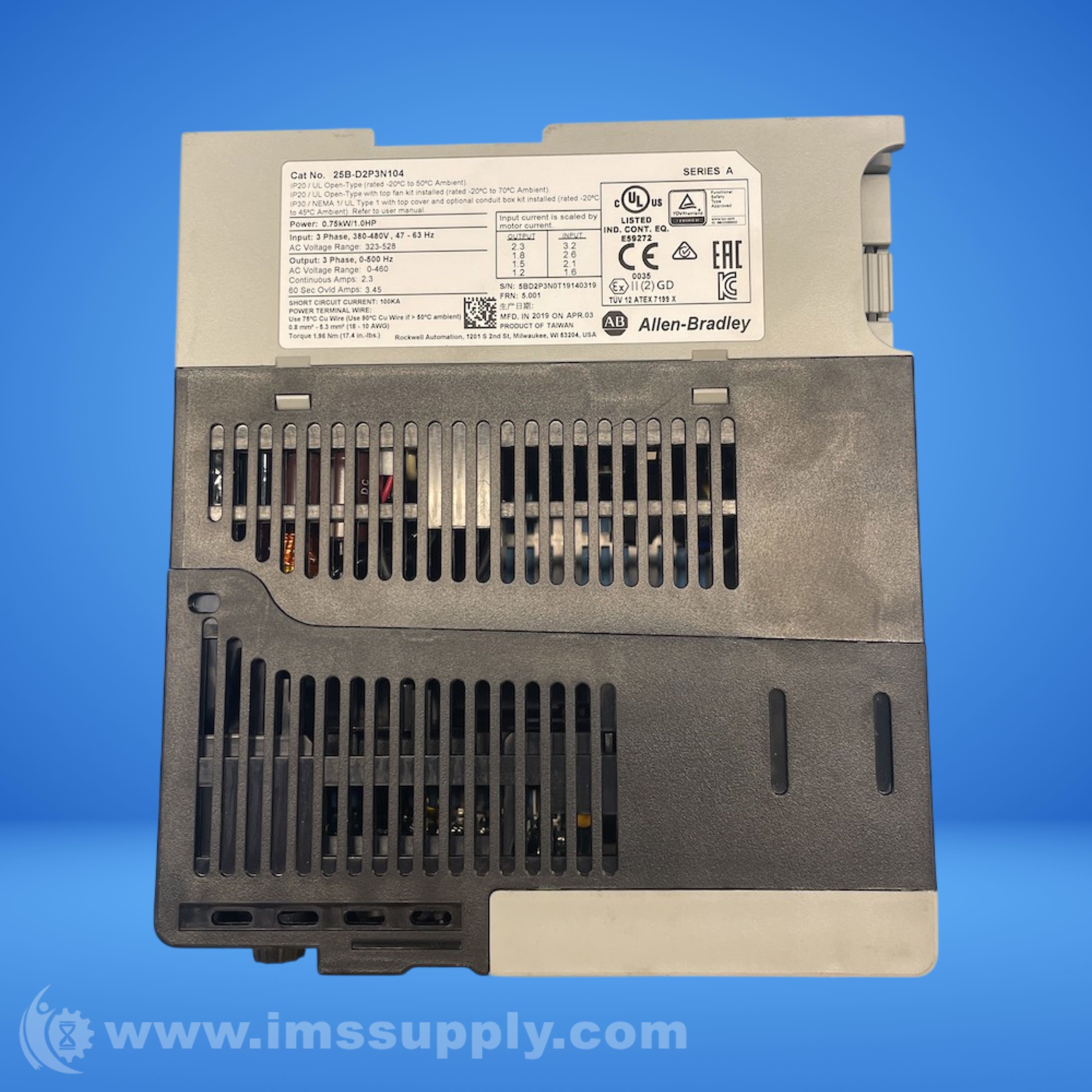

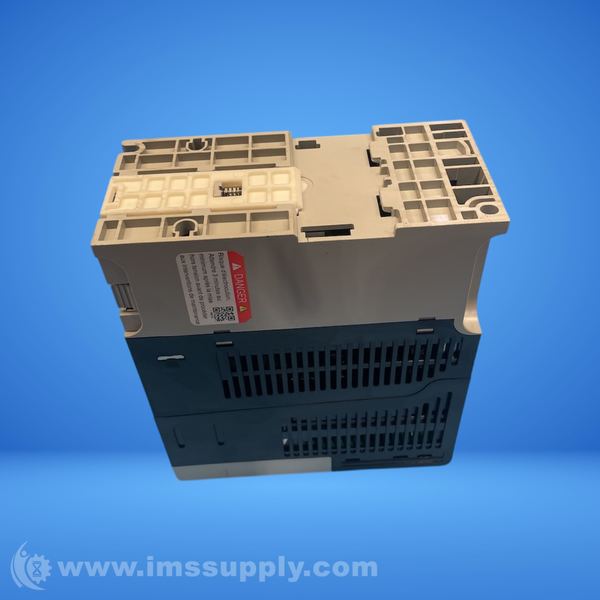

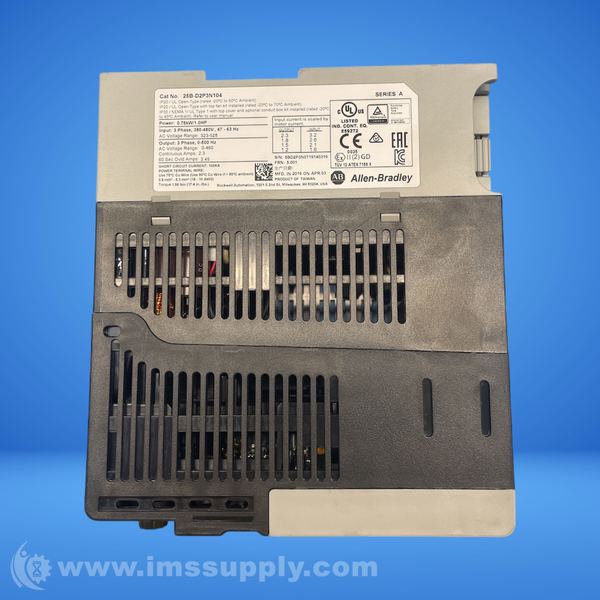

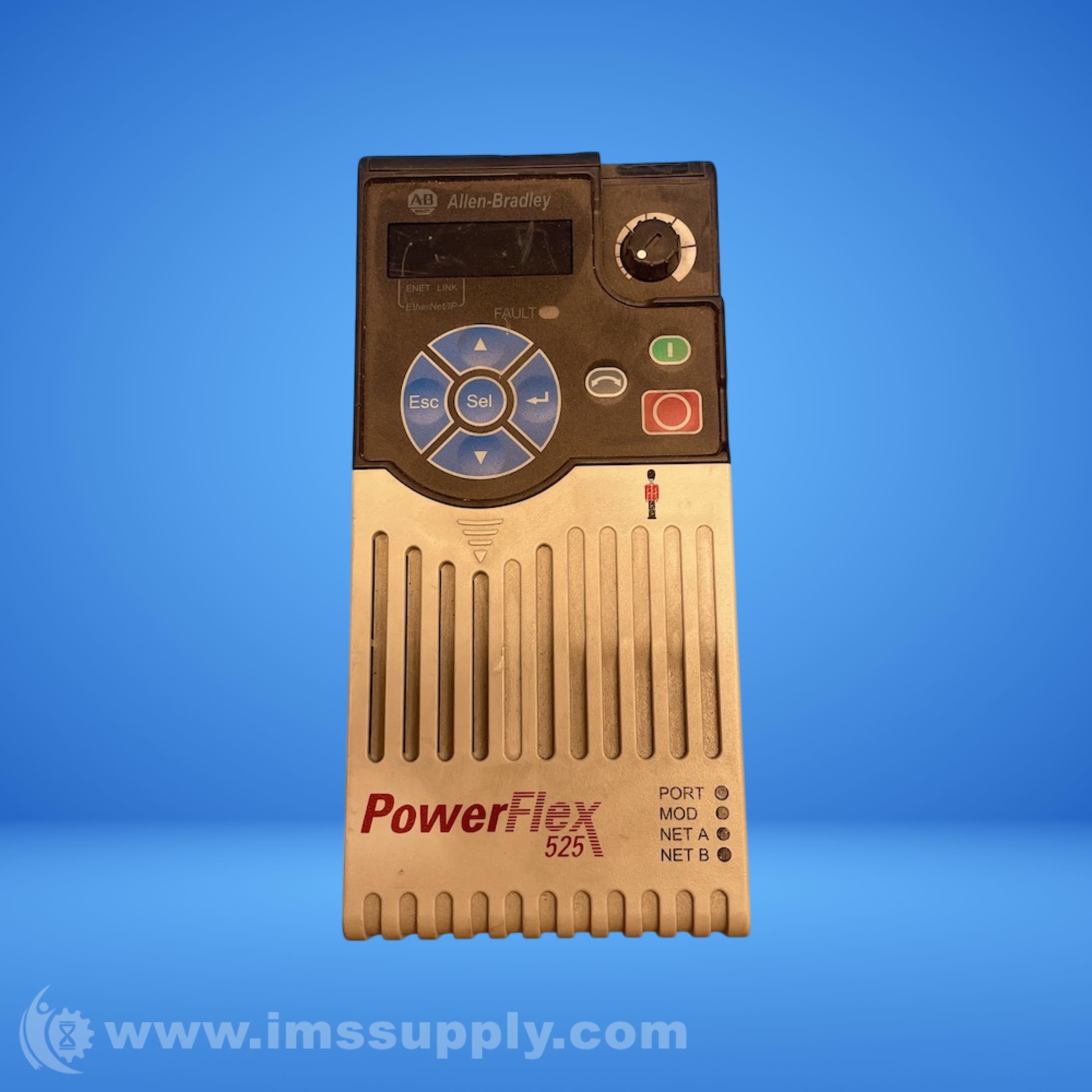

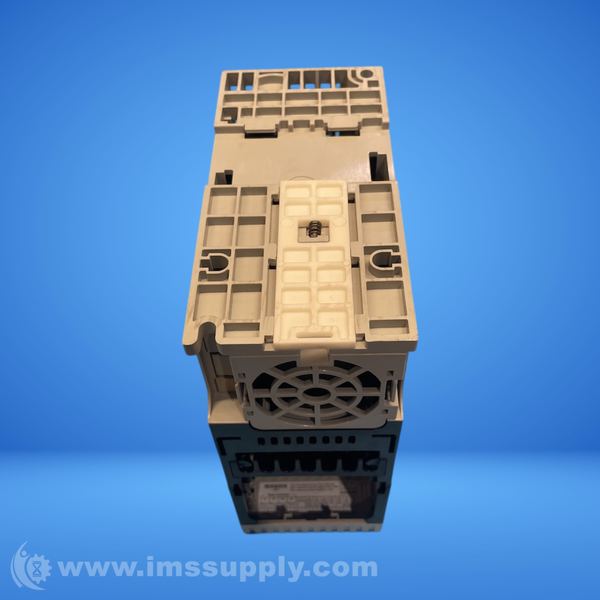

ALLEN BRADLEY 25B-D2P3N104 POWERFLEX 525 AC DRIVE
Quick Overview
Manufactured By: ALLEN BRADLEY

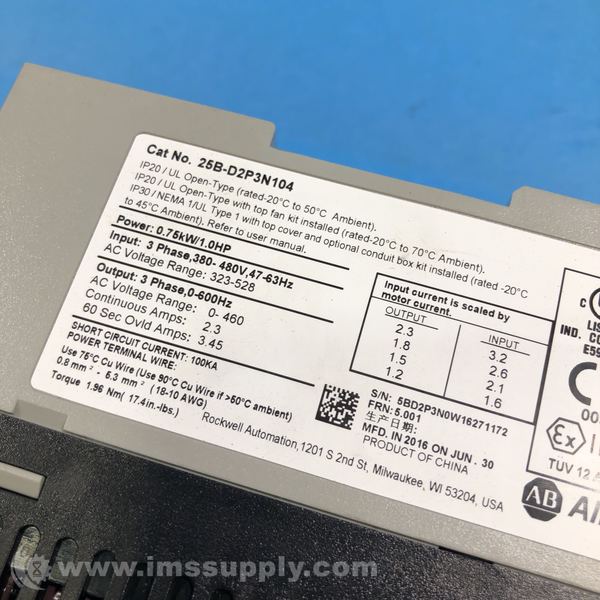

Manufacturer Part Number: 25B-D2P3N104
IMS Product Code: 1897703
Variation: Unspecified
Unspecified
Series: A
Packaging: Sold Individually
Description:
Allen Bradley 25B-D2P3N104 PowerFlex 525 AC Drive
Three Phase 380-480V AC Drive, 2.3 Amps, 1 Hp, 0.75 kW, IP20 NEMA / Open Type
Specifications
- Brake IGBT: Included
- Input Voltage Rating: 480V AC
- Output Current Rating: 2.3 A
- User Interface: Integral Keypad With Potentiom And LED Display
- Input Voltage Range: 323-528VAC
- Phase: 3-phase
- Motor Output: 2.3 A
- Power: 0.75 kW (1.0 HP)
- Bulletin Number: PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety
- Voltage Class: 380...480V AC, 3 Phase
- Enclosure Type: IP20 NEMA / Open Type
- Frame Size: Frame A
- Interface Module: Standard
- EMC Filtering Options: No Filter
- Weight: 0.98 kgs
- Dimensions: 11 × 11 × 7 in
- Input: Three Phase 380-480V
- Output Voltage: 0-460VAC
- Output Power: 0.75 kW (1.0 HP)
- I/O: Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA
- Installation: Panel Mount / DIN Rail
- Enclosure Rating: IP20 / NEMA UL Type Open
- Built-in communication port: Ethernet I/P
- Optional communication protocols: Dual Ethernet I/P; DeviceNet; ProfiBus DP
- Series: PowerFlex 525 Drive
- Communication: Ethernet/IP port
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 5 In Stock
Ships today if ordered in the next 7 hours and 12 minutes.
