ALLEN BRADLEY 2711-B6C20X PANELVIEW 600 HMI
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 2711-B6C20X
IMS Product Code: 1746055
Packaging: Sold Individually
Description:

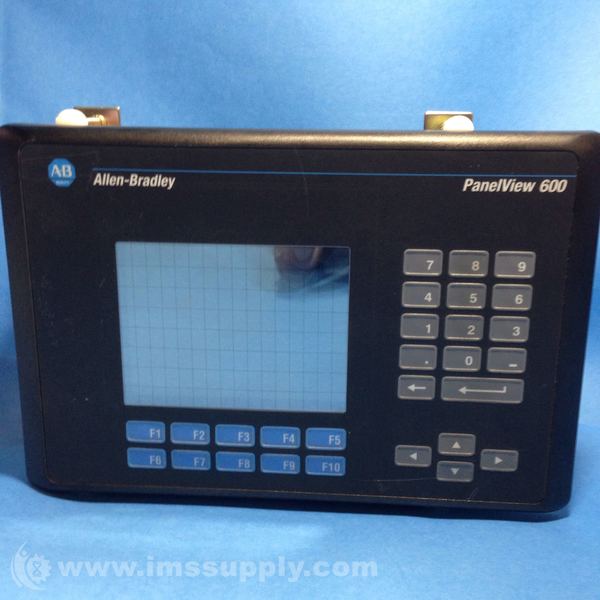

Allen Bradley 2711-B6C20X PanelView 600 HMI
Human Machine Interface (HMI) from the PanelView Standard 600 series with a 5.7-inch color TFT LCD display, keypad and touchscreen input, and Ethernet communication capabilities.
Specifications
- Series: PanelView Standard 600
- Display Type: Color TFT LCD
- Display Size: 5.7-inch (6-inch class)
- Resolution: 320 x 234 pixels
- Input Method: Keypad and Touchscreen (Combination)
- Communication Port: DH-485 (RJ45)
- Software Compatibility: PanelBuilder32
- Memory: Application Memory, Non-Volatile Memory
- Power Supply: 100-240VAC 0.6-0.35A 50/60Hz, 75VA
- Enclosure Rating (Front Panel): NEMA 4X, NEMA 12, IP65
- Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)
- Storage Temperature: -25 to 70 degrees C (-13 to 158 degrees F)
- Relative Humidity: 5% to 95% non-condensing
- Mounting: Panel Mount
- Dimensions (H x W x D): Approximately 190 mm x 260 mm x 90 mm (7.48 in x 10.24 in x 3.54 in)
- Weight: 1.3 kg (2.87 lbs)
- Non-Volatile Memory: 240 KB
